KW1_CL24-72_M-PL_2011 - 第6页

K87-M559A-000 KW1-M4592-000 KW1-M4593-000 KW1-M459G-000 KW1-M459N-001 No. Part No. Part Name Q'ty Remarks Change Compati. KW1-M459N-001 METAL ASSY 1 KW1-M4592-000 INDENTATION LEVER ASSY 1 KW1-M459G-000 SUB LEVER ASS…

100%1 / 39
K87-M2131-001
K87-M213A-000
K87-M2132-100
No. Part No. Part Name Q'ty Remarks
K87-M2131-001 CLAMP LEVER UNIT 1
K87-M2132-100 CLAMP LEVER ASSY 1
K87-M213A-000 CLANK ARM ASSY 1
1
2 K87-M113D-001 ARM 2
3 K87-M113E-000 HINGE PIN 2 1
4
5
6 K87-M213M-000
AXIS PIN
1
7 K87-M213L-100 CLAMP LEVER AXIS 1
8
9
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111Y-000 SCREW,SET 1
12 K87-M111V-000 SCREW,SET 1
13
K87-M11D7-000 CIRCLIP E 2
KW1-1204
1
3
TOGGLE CLAMP Assy
CL-24
CL-24 / 32 / 44 / 56 / 72 24mm~72mm
K87-M559A-000
KW1-M4592-000
KW1-M4593-000
KW1-M459G-000
KW1-M459N-001
No. Part No. Part Name Q'ty Remarks Change
Compati.
KW1-M459N-001 METAL ASSY
1
KW1-M4592-000
INDENTATION LEVER ASSY
1
KW1-M459G-000 SUB LEVER ASSY
1
K87-M559A-000 DRIVE GEAR ASSY
1
1
2
KW1-M459Y-000 PLANE WASHER
1
3
KW1-M459M-000 SPRING
1
S.T.D
KW1-M459M-100 SPRING
1
Hard (2009/9/10) SET A
4
K87-M119J-000 THRUST WASHER
3
5
K87-M559K-000 INDEX GEAR
1
6
7
KW1-M459L-000 SUB ARM
1
8
KW1-M459V-000 REEL FLANGE
1
9
10
11
12
13
KW1-M457B-000 PLANE WASHER
1
14
15
16
KW1-M459U-000 REEL PLATE
1
17
18
19
20
21
K87-M11BB-000 SCREW,FLAT HEAD+ IB
5
22
KW1-M45BF-000 SCREW,FLAT HEAD+
2
23
K87-M111S-000 SCREW,FLAT HEAD+
1
24
K87-M11B9-000 CIRCLIP E
1
25
KW1-1204
1
4

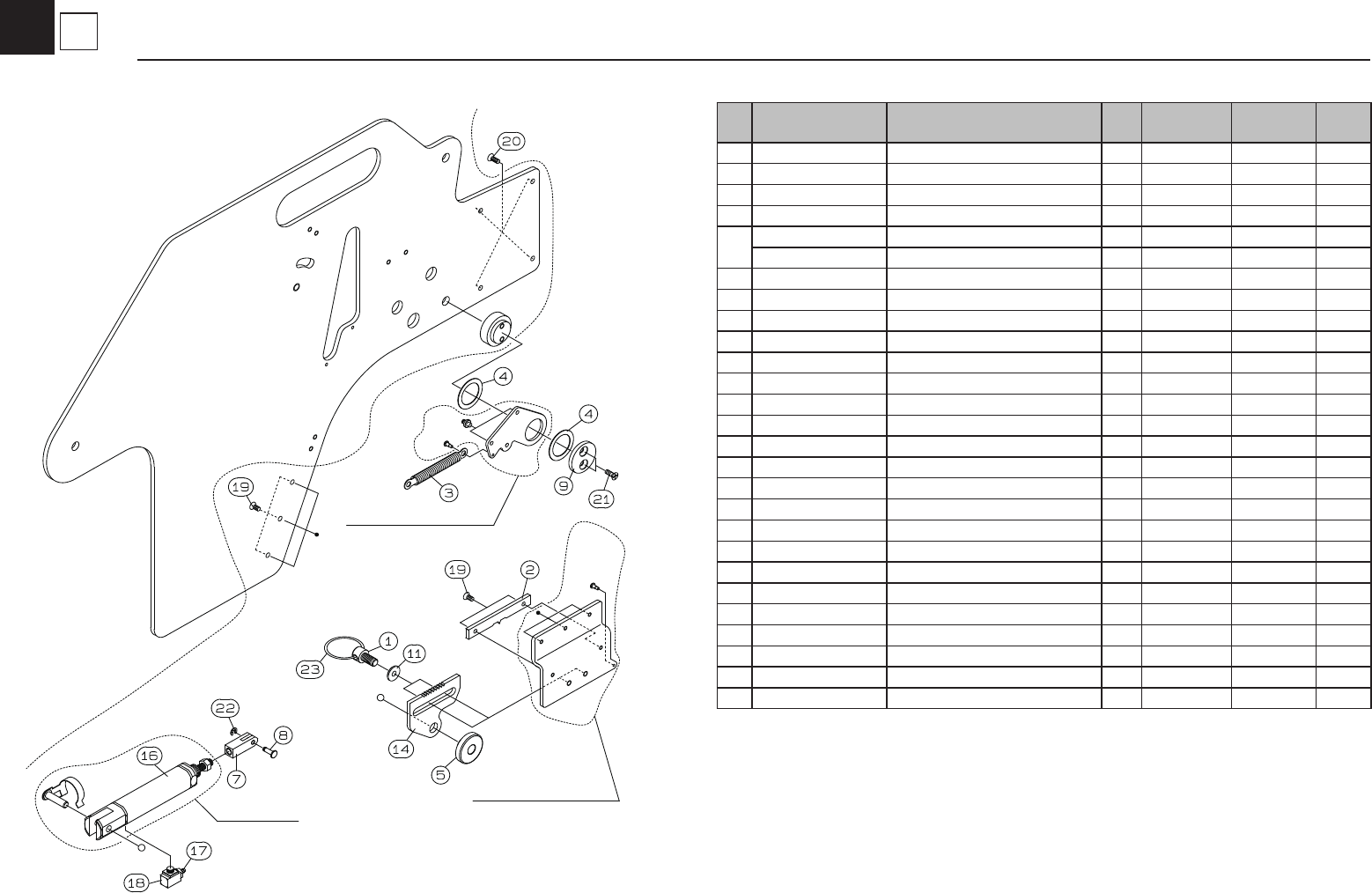

ROOL UP Assy
CL-24
CL-24 24mm
Continued on
Page 1-6
KW1-M451G-000
Set Parts
KW1-M458A-001
KW1-1204
1
5
AIR CLINDER Assy
CL-24
CL-24 / 32 / 44 / 56 24mm~56mm
No. Part No. Part Name Q'ty Remarks Change
Compati.
KW1-M451G-000 LEVER ASSY
1
KW1-M458A-001
SET PLATE ASSY
1
1
KW1-M458E-000 RING SCREW
2
2
K87-M538C-000 POSITION PLATE
1
3
KW1-M451D-001 SPRING
1
S.T.D
KW1-M451D-A00 SPRING
1
Hard (2009/2/20) SET A
4
K87-M2316-000 THRUST WASHER
2
5
KW1-M4585-000 METAL
1
6
7
K87-M2382-000 CYL CONNECTOR
1
8
K87-M1184-000 CONNECT PIN
1
9
K87-M2317-000 CAP
1
10
11
K87-M2387-000 PLANE WASHER
2
12
13
14
KW1-M4584-000 ADJUST PLATE
1
15
16
K87-M2381-000 AIR CYLINDER
1
17
K87-M56C1-000 CONNECTOR
1
18
KW1-M4586-000 UNIVERSAL ELBOW
1
19
K87-M111S-000 SCREW,FLAT HEAD+
5
20
KW1-M45BG-000 SCREW,FLAT HEAD+
4
21
K87-M23B6-000 SCREW,FLAT HEAD+
2
22
K87-M11B9-000 CIRCLIP
1
23
KW1-M458F-000 DOUBLE RING
2
24
