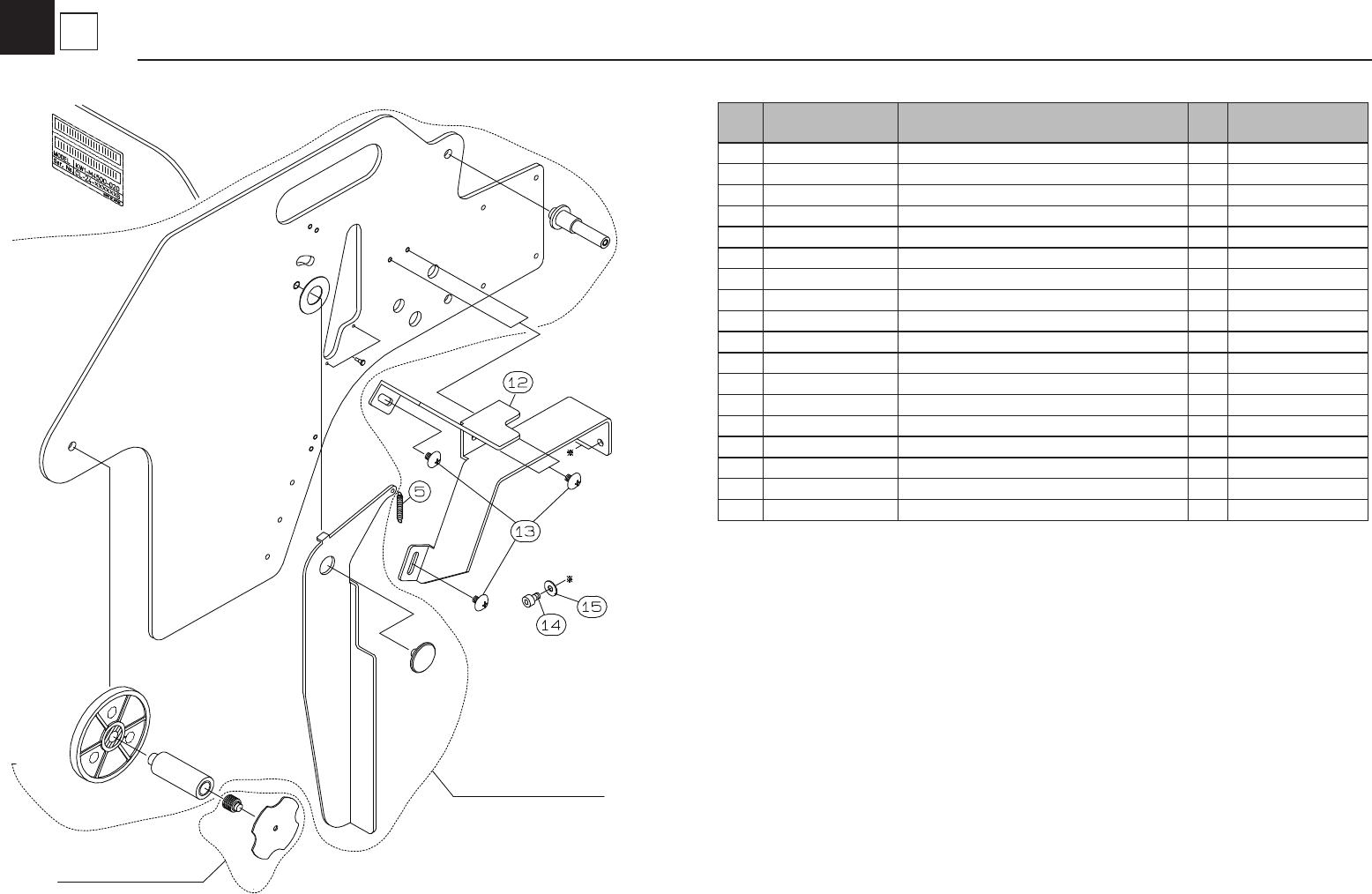

Continued from Page 1-5 KW1-M4560-000 KW1-M456N-000 No. Part No. Part Name Q'ty Remarks KW1-M456N-000 REEL COVER ASSY 1 KW1-M4560-000 REEL PLATE ASSY 1 1 2 3 4 5 KW1-M456C-000 SPRING 1 6 7 8 9 10 11 12 KW1-M4567-000…

100%1 / 39
Continued on
Page 1-6
KW1-M451G-000
Set Parts
KW1-M458A-001
KW1-1204
1
5
AIR CLINDER Assy
CL-24
CL-24 / 32 / 44 / 56 24mm~56mm
No. Part No. Part Name Q'ty Remarks Change
Compati.
KW1-M451G-000 LEVER ASSY
1
KW1-M458A-001
SET PLATE ASSY
1
1
KW1-M458E-000 RING SCREW
2
2
K87-M538C-000 POSITION PLATE
1
3
KW1-M451D-001 SPRING
1
S.T.D
KW1-M451D-A00 SPRING
1
Hard (2009/2/20) SET A
4
K87-M2316-000 THRUST WASHER
2
5
KW1-M4585-000 METAL
1
6
7
K87-M2382-000 CYL CONNECTOR
1
8
K87-M1184-000 CONNECT PIN
1
9
K87-M2317-000 CAP
1
10
11
K87-M2387-000 PLANE WASHER
2
12
13
14
KW1-M4584-000 ADJUST PLATE
1
15
16
K87-M2381-000 AIR CYLINDER
1
17
K87-M56C1-000 CONNECTOR
1
18
KW1-M4586-000 UNIVERSAL ELBOW
1
19
K87-M111S-000 SCREW,FLAT HEAD+
5
20
KW1-M45BG-000 SCREW,FLAT HEAD+
4
21
K87-M23B6-000 SCREW,FLAT HEAD+
2
22
K87-M11B9-000 CIRCLIP
1
23
KW1-M458F-000 DOUBLE RING
2
24
Continued from
Page 1-5
KW1-M4560-000
KW1-M456N-000
No. Part No. Part Name Q'ty Remarks
KW1-M456N-000 REEL COVER ASSY 1
KW1-M4560-000 REEL PLATE ASSY 1
1
2
3
4
5 KW1-M456C-000
SPRING
1
6
7
8
9
10
11
12 KW1-M4567-000 GUIDE PLATE 1
13 K87-M23BL-000 SCREW TRUSS HEAD 6
14
KW1-M22B5-000 BOLT,HEXAGON SOCKET HEAD 2
15 K87-M11BE-000 WASHER 2
16
KW1-1204
1
6
REEL PLATE Assy
CL-24
CL-24 24mm
Continued on
Pag e 2-2
KW1-MAD10-001
( OLD : KW1-M5510-002 )
KW1-M452U-000
No. Part No. Part Name Q'ty Remarks Change Compati.
KW1-M452U-000 SUB LEVER ASSY 1
KW1-M5510-002 BODY ASSY 1
KW1-MAD10-001 BODY ASSY 1 sharing with CLi MM70064 OK
1
2
3
4 KW1-M221F-100 STOPPER PIN 1
5 K87-M211B-000 BACK STOPPER AXIS 1
6 KW1-M552R-000 LEVER METAL 1
7
8
9
10
11
12
13
14 KW1-M451H-000 BACK STOPPER 1
15 KW1-M451A-001 SPRING 1
16
17 KW1-M4577-000 MAIN ARM 1
18
19
20
21
22 K87-M111V-000 SCREW SET 2
23 K87-M55BL-000 U NUT 1
24
25 K87-M11B9-000 CIRCLIP E 1
KW1-2011
2
1
BODY & RACHET Assy
CL-32
CL-32 32mm
