Safe-15 AKFE-ID Safety Precautions 4. Alert Labels The alert labels (described below) are used for this machine. Please read the instructions on each label carefully and check the contents, observing the actual object. B…

100%1 / 219
Safety Precautions
Safe-14
AKFE-ID
Alert Indications described as "
CAUTION
" (continuted)
Alert Description Related Items
Before starting the automatic operation, check carefully that there is no
person around the machine (especially on the other side of the machine
operation). Make sure that no objects (tools, parts, etc.) are left behind.
"1.1.3" in
"Chapter 2 (Vol. 1)"
The padlock key should be kept in such a way that nobody except the
personnel in charge of maintenance can supervise it.
"1.4.3" in
"Chapter 2 (Vol. 1)"
The load power to the motors, etc., is turned OFF but the setup
operation must be performed carefully when you put your hand
inside the machine.
"3.3.1", "3.3.2" and
"3.6" in "Chapter 3
(Vol. 1)"
This setup operation must be performed with your hands inserted
inside the machine.
Open the cover(door type) and perform the setup operation with
the load power supply to the servomotor being turned "OFF".
"5.1.2" in
"Chapter 4 (Vol. 2)"
•
Even when the power breaker is set to "OFF", the primary line
is powered, making it possible to cause an electric shock.
Be sure to completely stop the power supply to the machine before
maintenance work.
"1.1" in
"Chapter 1 (Vol. 4)"
•
Residual voltages may remain behind for a few minutes in the
internal devices of the machine after power interception.
Before performing maintenance work, wait until the charge lamps of
theDCpowersupplyandtheservoampliergo"OFF"in10minutes
or more after the power breaker is set to "OFF".
"1.1" in
"Chapter 1 (Vol. 4)"
The load power to the motors, etc., is turned OFF but the
maintenance operation must be performed carefully, protecting
your hands from any injury.
"4.5" in
"Chapter 1 (Vol. 4)"
The light emitter of the linear measure sensor is made of glass.
If the light emitter happens to be damaged, be sure to suck up
the fragments with a vacuum cleaner, etc.
Do not collect the fragments with your bare hands to protect your
hands from injuries.
"4.5" in
"Chapter 1 (Vol. 4)"
0607-004
Safe-15
AKFE-ID
Safety Precautions
4. Alert Labels
The alert labels (described below) are used for this machine.
Please read the instructions on each label carefully and check the contents, observing the
actual object.
Be sure to follow the instructions for safety purposes.
These labels should be kept clean and easily legible at a far safe distance.
When a label has deteriorated and become illegible, contact our service department for
the replacement with a new one.

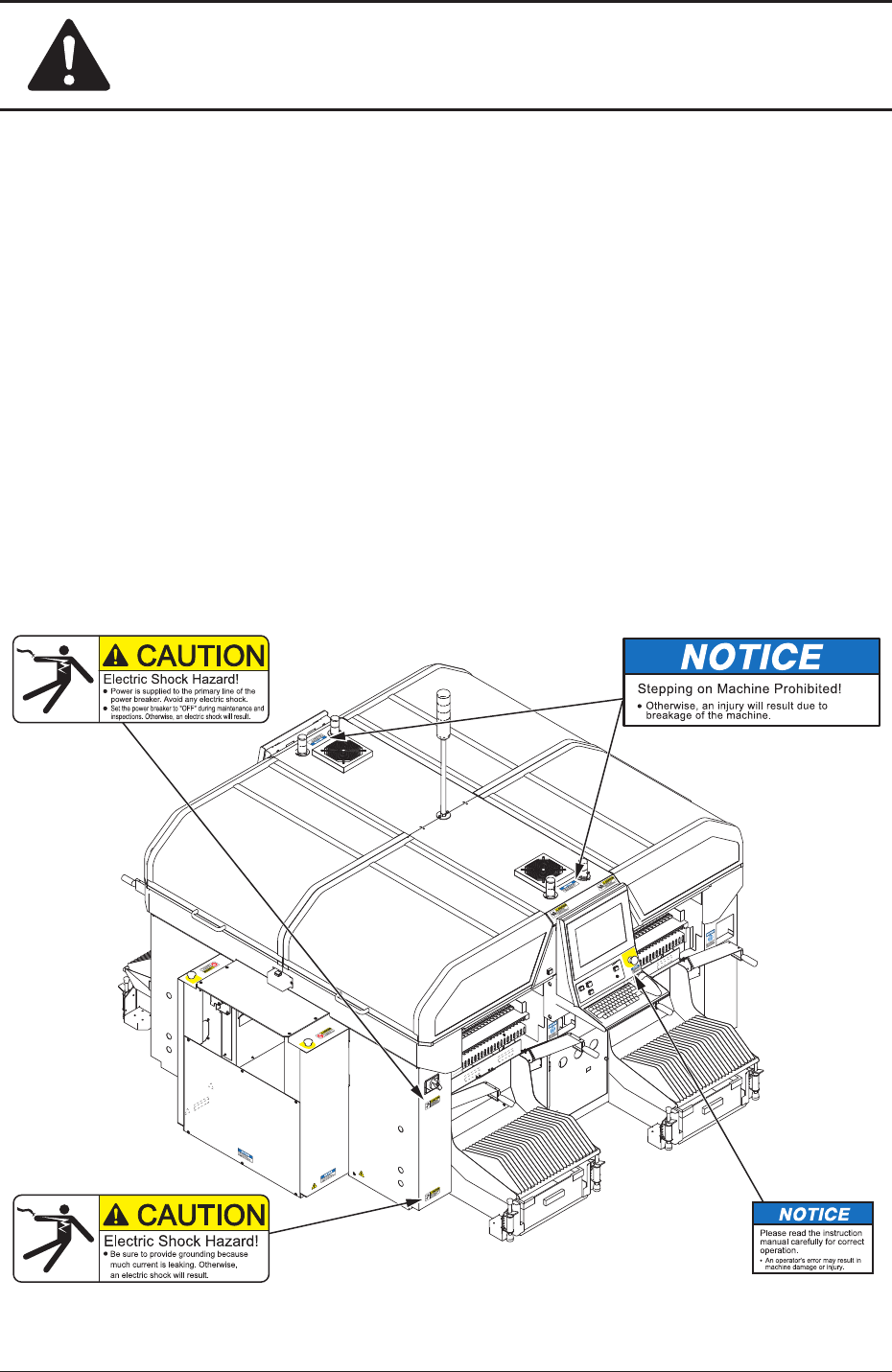

Location of Alert Labels
Thealertlabelsareafxedondangerousandcaution-requiredareas.
Refer to "Alert Labels and Description" for details.
630
1
14 5
167
10-
0084
-
630
1
14 5
150
01-
0085
-
630
1
14
51
67
10-
008
4-
630
1
1451
50
01-
008
5-
630 1
14 5167
10-0084-
630 1
14 5150
01-0085-
630
100
0633
00-0012
-
630
1
00 0633
00-001
2-
630
1
00 0633
00-001
2-
630
1
00 0633
00-0
012-
630
1
00 0633
00-
0
012-

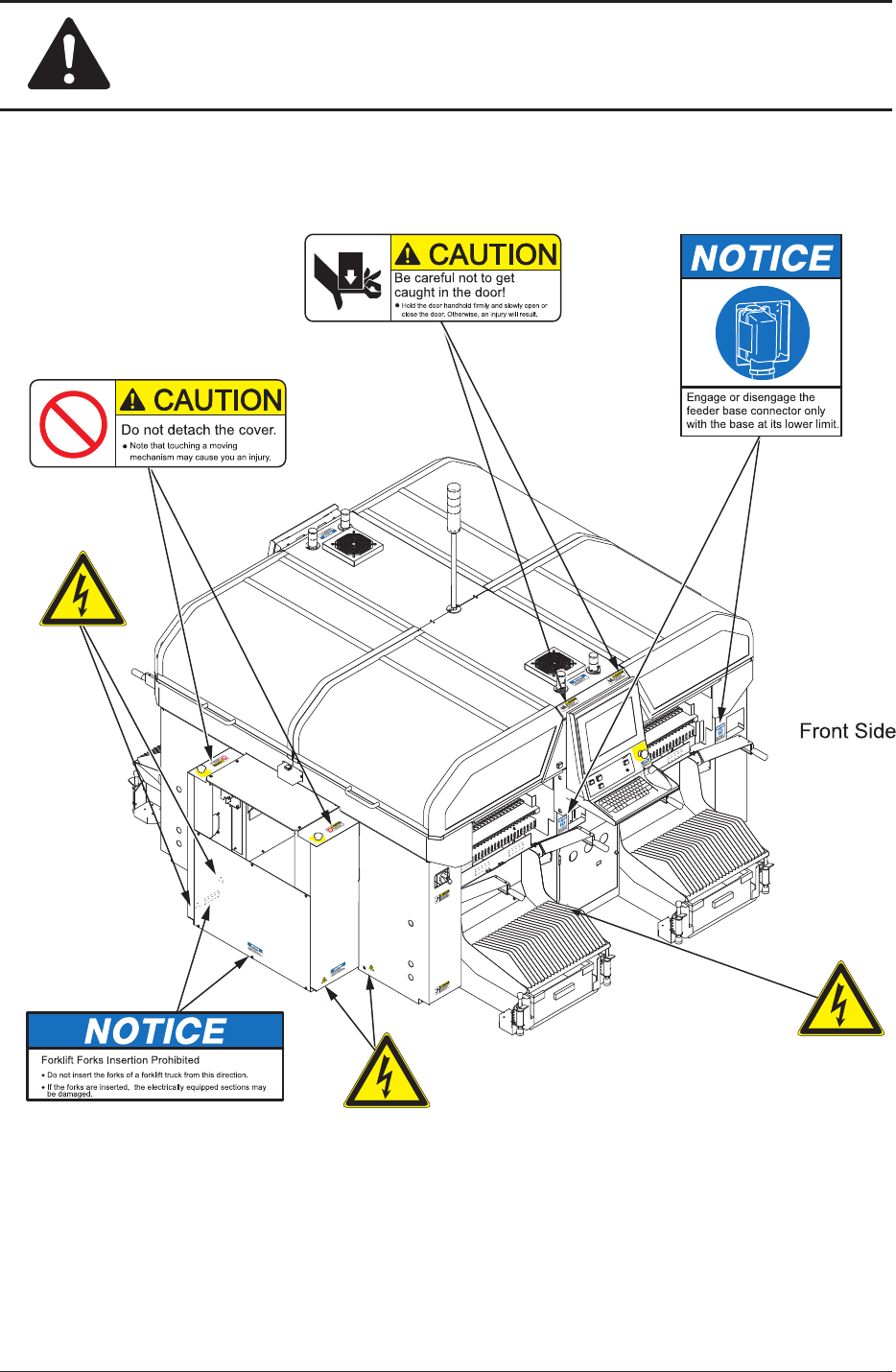

Front Side
(21)
(20)
(14)
(13)
EMERGENCY STOP
0804-004
Safety Precautions
Safe-16
AKFE-ID
0804-005
(15-3)
(15-3)
(28)
(12)
(24)
(15-3)
(8)
630
1
14 5
167
10-
0084
-
630
1
14 5
150
01-
0085
-
630 1
14
51
67
10-
008
4-
630
1
14
51
50
01-
008
5-
630 1
14 5167
10-0084-
630 1
14 5150
01-0085-
630
100
0633
00-0012
-
630
100 0633
00-001
2-
630
1
00 0633
00-001
2-
630
1
00 0
633
00-
0
012-
630
1
00 0633
00-
0
012-
EMERGENCY STOP
