2-3 AKFEPED-ID 0601-002 Layout of Sensors and Loads Beams Symbol Name Symbol Name -B2101 X-Axis Limit (+) -U21 X Converter -B2102 X-Axis Limit (-) -U22 Y1 Converter -B2201 X-Axis Limit (+) -U23 Y2 Converter -B2202 Y -Axi…
2-2
AKFEPED-ID
0804-003

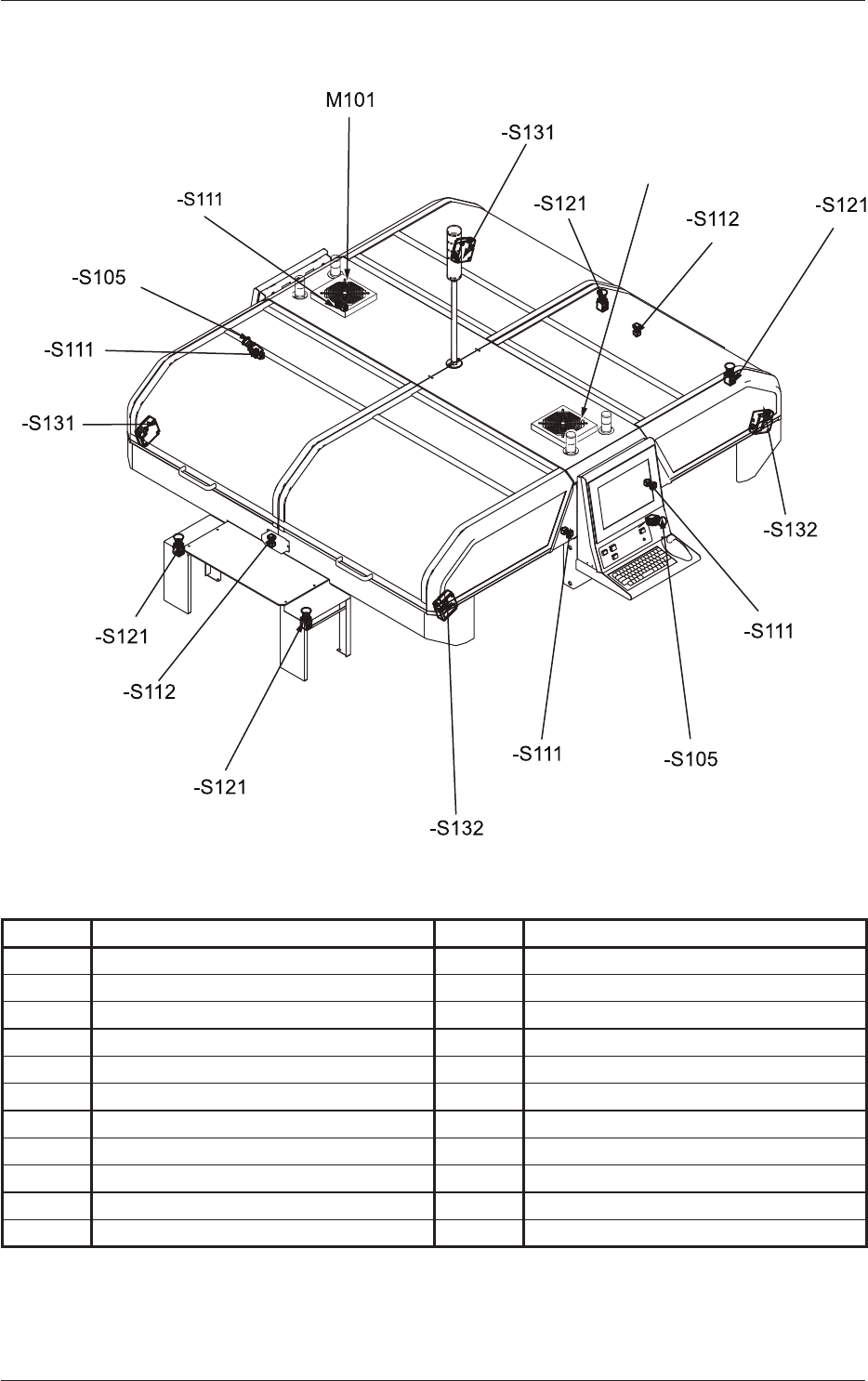

Layout of Sensors and Loads Cover
M102
Symbol Name Symbol Name
M101 Ceiling Cooling Fan 1 M102 Ceiling Cooling Fan 2
-S111 Feeder Ready 1 -S111 Feeder Ready 3
-S111 Feeder Ready 2 -S111 Feeder Ready 4
-S112 STAGE 1 READY -S112 STAGE 2 READY
-S131 Cover 1(Rear) -S131 Cover 2(Rear)
-S132 Cover 1(Front) -S132 Cover 2(Front)
-S121 Emergency Stop 1 -S121 Emergency Stop 4
-S105 Emergency Stop 2 -S105 Emergency Stop 5
-S121 Emergency Stop 3 -S121 Emergency Stop 6
Layout of Sensors and Loads Cover
2-3
AKFEPED-ID
0601-002

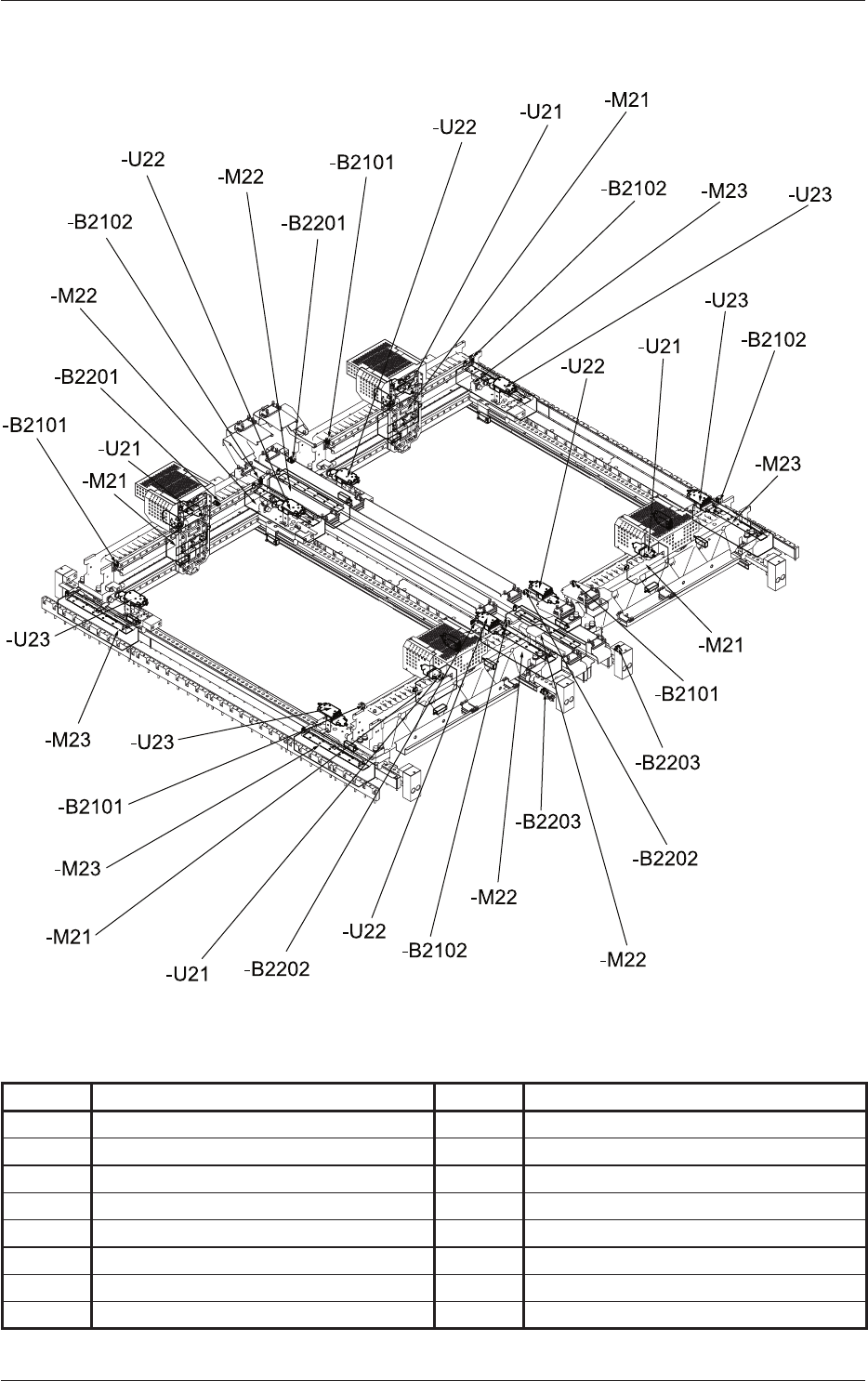

Layout of Sensors and Loads Beams
Symbol Name Symbol Name
-B2101 X-Axis Limit (+) -U21 X Converter
-B2102 X-Axis Limit (-) -U22 Y1 Converter
-B2201 X-Axis Limit (+) -U23 Y2 Converter
-B2202
Y-Axis Approach Detection
-B2203
Y-Axis Limit (-)
-M21 Beam X Motor
-M22 Beam Y1 Motor
-N23 Beam Y2 Motor
Layout of Sensors and Loads Beams
2-4
AKFEPED-ID
0604-003

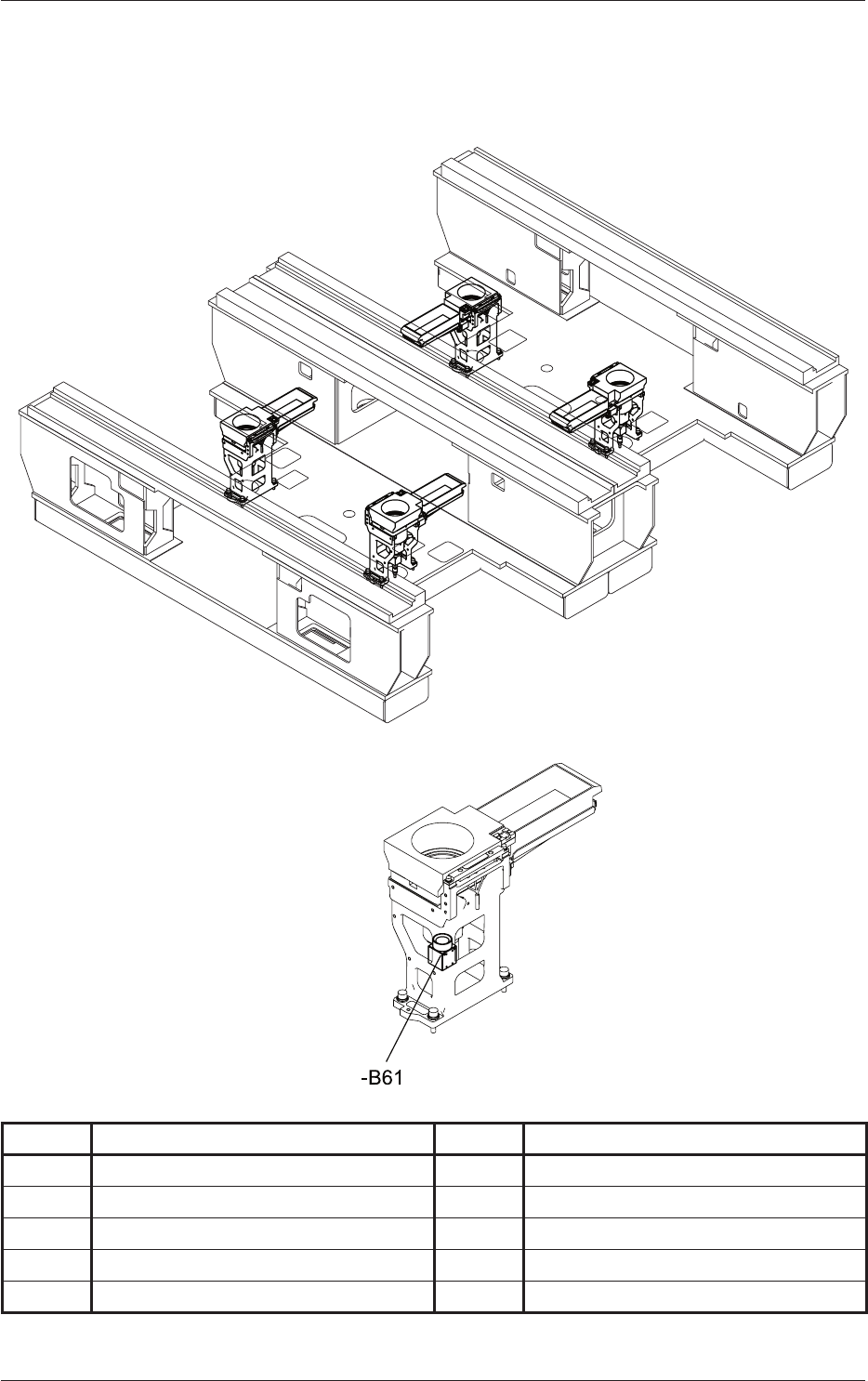

Layout of Sensors and Loads
Component Recognition Camera
Symbol Name Symbol Name
-B61 Component Recognition Camera
Layout of Sensors and Loads Component Recognition Camera
