2-8 AKFEPED-ID Layout of Sensors and Loads Conveyors (NC, NR) 0607-004 Layout of Sensors and Loads Conveyors (NC, NR) Symbol Name Symbol Name -B4101 NL T ransferred PCB Detection Sensor (Deceleration) -M41 T ransfer Serv…
2-7
AKFEPED-ID
Layout of Sensors and Loads Conveyors (NL, NA, NB)
0607-004
Layout of Sensors and Loads
Conveyors (NL, NA, NB)
Symbol Name Symbol Name
-B4101
NL Transferred PCB Detection Sensor (Deceleration)
-M41 Transfer Servomotor (NL)
-B4102
NL Transferred PCB Detection Sensor (Stop)
-M42 Transfer Servomotor (NA)
-B4201
NA Transferred PCB Detection Sensor (Deceleration)
-M44 Transfer Servomotor (NB)
-B4202
NA Transferred PCB Detection Sensor (Stop)
-M51
NL-W1 Chute Width Changeable Servomotor
-B4401
NB Transferred PCB Detection Sensor (Deceleration)
-M52
NL-W2 Chute Width Changeable Servomotor
-B4402
NB Transferred PCB Detection Sensor (Stop)
-M53 NA Backup Servomotor
-B5101 NL Chute Width Changeable 1 Limit (+) -M55
NB-W1 Chute Width Changeable Servomotor
-B5201 NL Chute Width Changeable 2 Limit (-) -M56
NB-W2 Chute Width Changeable Servomotor
-B5301 NA Backup 1 Limit (+) -Y0834 Z Clamp Cylinder Valve 1 DN [NA]
-B5501 NB Chute Width Changeable 2 Limit (+) -Y0835 Z Clamp Cylinder Valve 1 UP [NA]
-B5601 NB Chute Width Changeable 2 Limit (-) -Y0836 Z Clamp Pressure Change 1 (NA)
-B0812 NA PCB Positioning Stopper 1 Upper Limit
Detection
-Y0842 NA PCB Positioning Stopper 1 U/D Valve
-B0813 NA PCB Positioning Stopper 1 Lower Limit
Detection
2-8
AKFEPED-ID
Layout of Sensors and Loads Conveyors (NC, NR)
0607-004
Layout of Sensors and Loads Conveyors (NC, NR)
Symbol Name Symbol Name
-B4101
NL Transferred PCB Detection Sensor (Deceleration)
-M41 Transfer Servomotor (NL)
-B4102
NL Transferred PCB Detection Sensor (Stop)
-M42 Transfer Servomotor (NA)
-B4201
NA Transferred PCB Detection Sensor (Deceleration)
-M51
NR-W1 Chute Width Changeable Servomotor
-B4202
NA Transferred PCB Detection Sensor (Stop)
-M52
NR-W2 Chute Width Changeable Servomotor
-B5101 NL Chute Width Changeable 1 Limit (+) -M53 NC Backup Servomotorr
-B5201 NL Chute Width Changeable 2 Limit (-) -Y0834 Z Clamp Cylinder Valve 1 DN [NC]
-B5301 NA Backup 1 Limit (+) -Y0835 Z Clamp Cylinder Valve 1 UP [NC]
-B0812 NC PCB Positioning Stopper 1 Upper Limit
Detection
-Y0836 Z Clamp Pressure Change 1 (NC)
-B0813 NC PCB Positioning Stopper 1 Lower Limit
Detection
-Y0842 NC PCB Positioning Stopper 1 U/D Valve
2-9
AKFEPED-ID

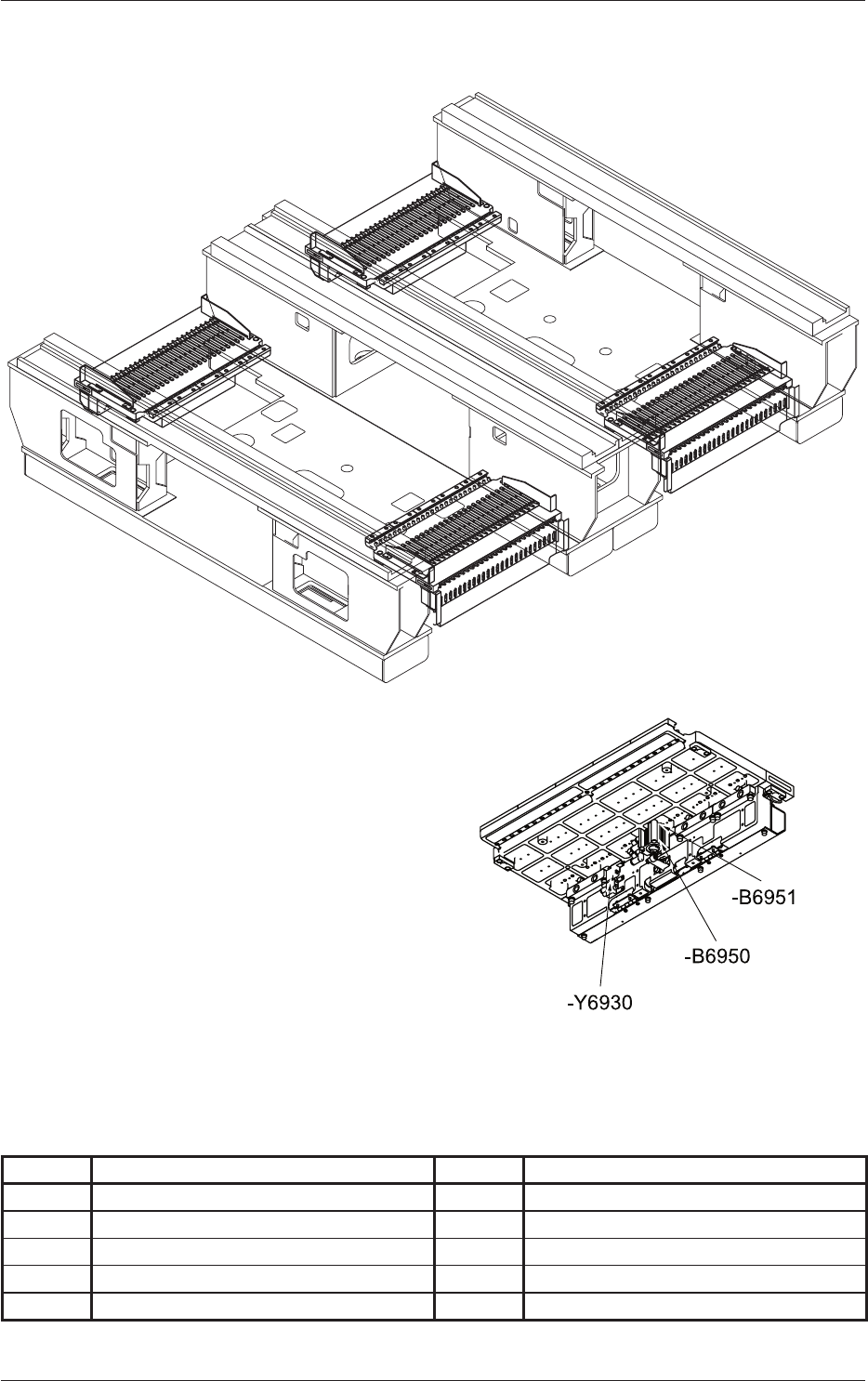

Layout of Sensors and Loads Feeder Bases
0604-003
Layout of Sensors and Loads Feeder Bases
Symbol Name Symbol Name
-B6950 Feeder Clamp Lower Limit
-B6951 Feeder Clamp Upper Limit
-Y6930 Feeder Clamp
