2-1 1 AKFEPED-ID Layout of Sensors and Loads Nozzle Stockers 0604-003 Layout of Sensors and Loads Nozzle Stockers Symbol Name Symbol Name -B0918 Nozzle Stocker Lower Limit Detection 1 -B0920 Nozzle Stocker Shutter Open C…
2-10
AKFEPED-ID
0604-003

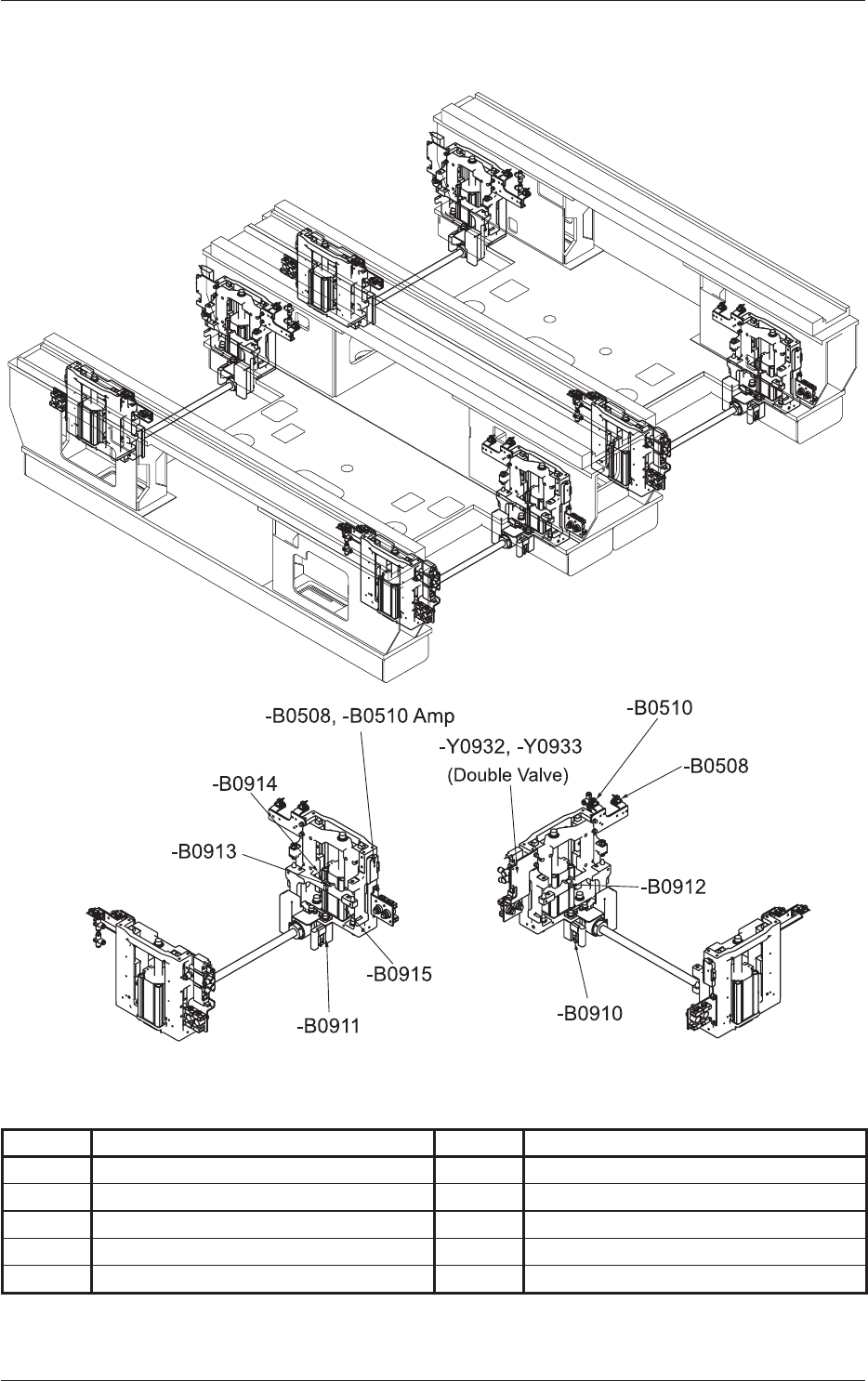

Layout of Sensors and Loads Positioning
Layout of Sensors and Loads Positioning
Symbol Name Symbol Name
-B0508 Feeder Disengaged Latch Detection -B0913 Lifting Section Feeder Base Detection 2
-B0510 Lifted Suppressor Detection -B0914 Cylinder Upper Limit Detection
-B0910
Feeder Base Y Direction Positioning Check 1
-B0915 Cylinder Lower Limit Detection
-B0911
Feeder Base Y Direction Positioning Check 2
-Y0932 Feeder Base Ascending
-B0912 Lifting Section Feeder Base Detection 1 -Y0933 Feeder Base Descending
2-11
AKFEPED-ID

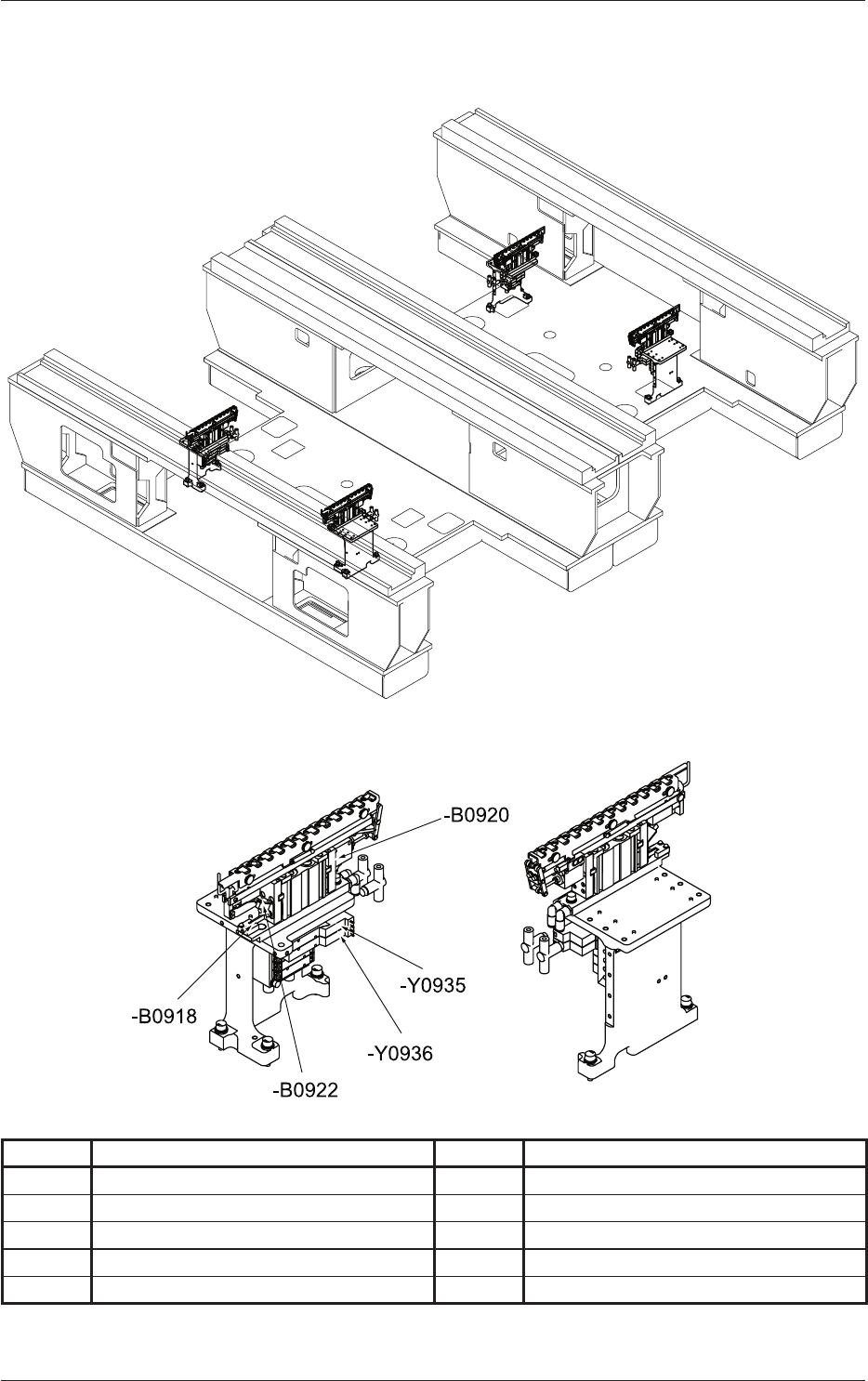

Layout of Sensors and Loads Nozzle Stockers
0604-003
Layout of Sensors and Loads Nozzle Stockers
Symbol Name Symbol Name
-B0918 Nozzle Stocker Lower Limit Detection 1
-B0920 Nozzle Stocker Shutter Open Check 1
-B0922 Nozzle Stocker Clamp Check 1
-B0935 Nozzle Stocker Shutter Open
-B0936 Nozzle Stocker Ascending 1
2-12
AKFEPED-ID
0601-002
