PS288 Owner’s Manual 1—1

Chapter

1Introduction

The PS288 is a versatile production programmer that handles traditional and

fine-pitched packages. Its flexibility is due to modular design, allowing you

to optimize for the level of production required by your facility.

PS288 features include:

• Automated programming, handling, and labeling for µBGA, PGA,

QFP, TQFP, TSOP, SOIC, PLCC, DIP, and other packages

• Configured with four FlashCORE programmers

• Support for memory and microcontroller devices in many package

types

• Optical vision system

• Flexible input and output options include static tray, automatic tray

feeder, tube, and tape systems

• Label or laser marking

• Modular design allows configuration for a wide range of applications

• Small mechanical footprint

System

Description

The PS288 moves devices from input media through a programming and

marking process to output media for delivery to the next phase of the pro-

duction process. It combines a device programming system and a high-speed

pick and place head (PNP head) to provide rapid programming of standard

pitch devices, as well as ultra-fine pitched devices.

TaskLink

™

software and Automated Handler (AH500) software running on

the system’s Handler Computer direct the PS288 to perform a series of pro-

cesses, including automatic handling, programming, marking, and place-

ment of devices in the output media of choice. Operator interaction is

reduced by allowing the selection of a Job from a list and starting the system.

Introduction • System Description

1—2 PS288 Owner’s Manual

Specifications

Terms Used to Indicate Direction

The PS288 motion system operates on three primary axes: X, Y, Z. These

axes are used throughout this manual to describe the motion of the various

parts of the system, and are described relative to the front of the PS288.

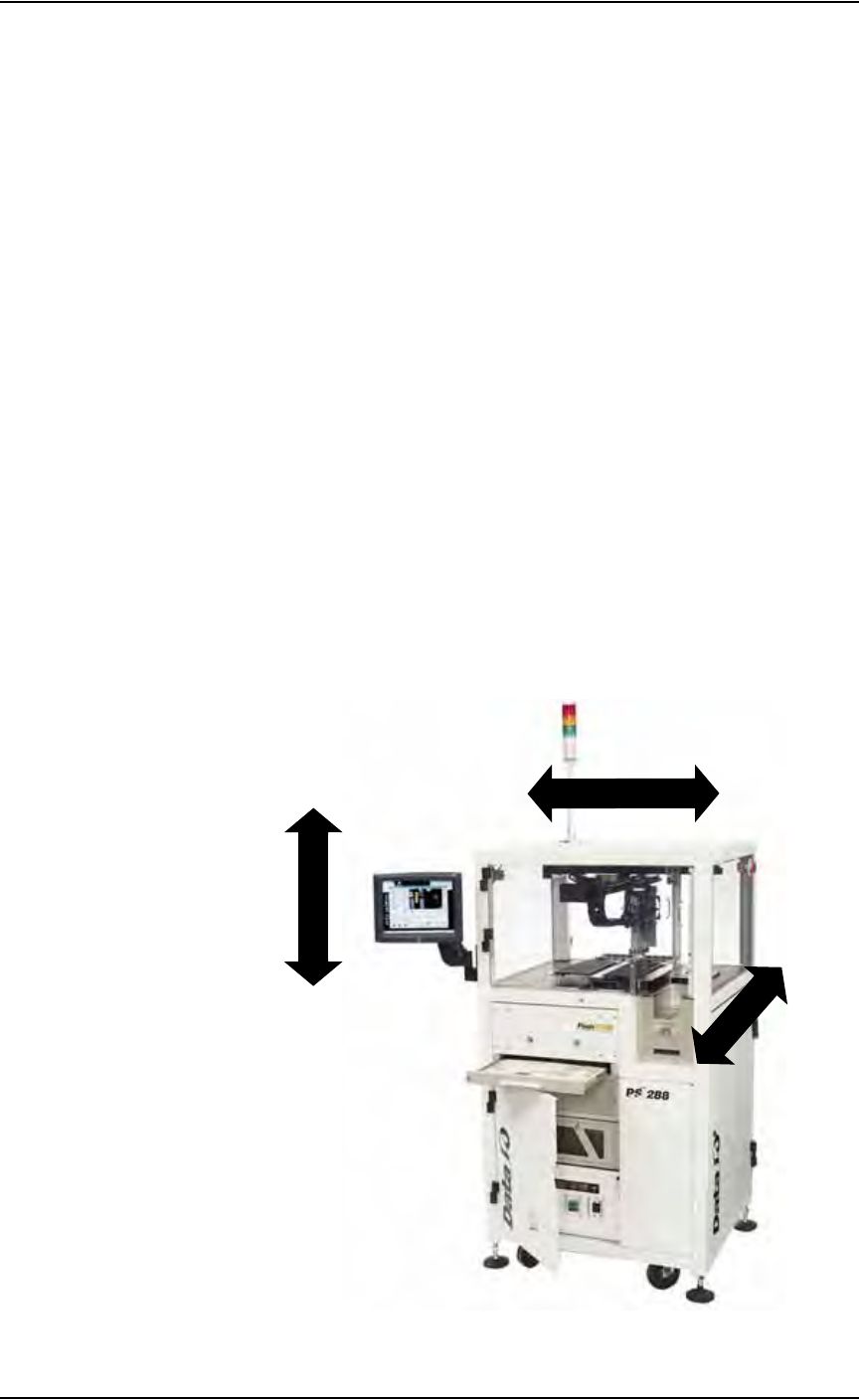

Figure 1-1—PS288 motion axes

Facilities:

Air Pressure 620-827 kiloPascals (90-120 PSI)

Air Flow 85 liters/minute (3 SCFM)

AC Input Voltage (single phase) 208-240 VAC

AC Input Voltage Frequency 50/60 Hz

AC Input Power (max) 10 A

Dimensions:

Length (including hinges) 900 mm (35 inches)

Width (including hinges) 800 mm (31 inches)

Height 626 mm (64 inches)

Weight 364 kg (800 lbs)

Environment:

Operating Temperature +13 to +30 C (+55 to +86 F)

Humidity (non-condensing) 90%

LEFT

RIGHT

X-AXIS

(+Z)

(+X)

DOWN

FRONT

-A

BACK

(+Y)
