Maintenance • Adjustments, Calibrations, and Functional Tests

PS288 Owner’s Manual 5—47

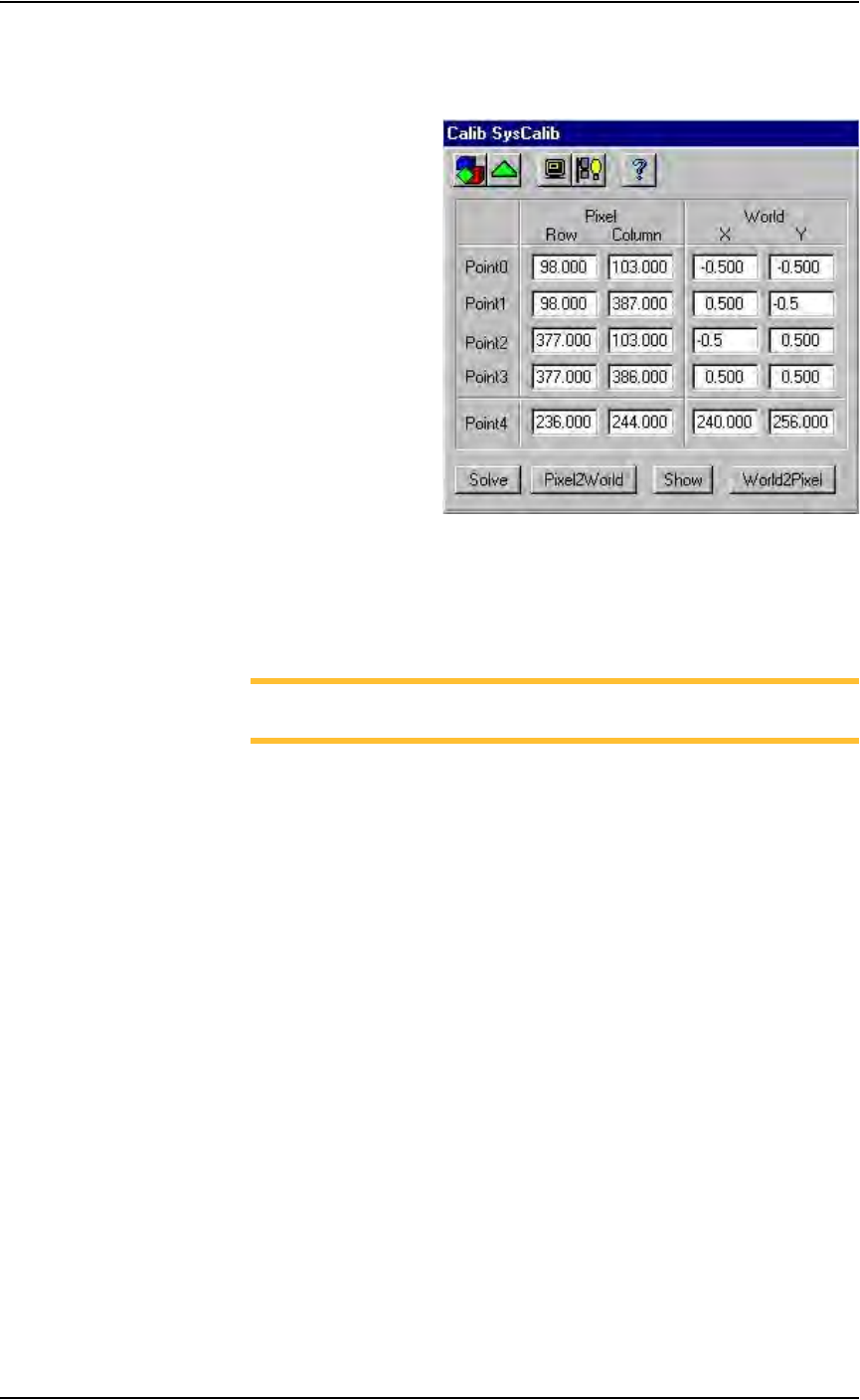

3g) On the Calib SysCalib window, set the World X and Y values as

shown in Figure 5-55. Press the Solve button. Then press the green tri-

angle to return to the Gantry window.

Figure 5-55—World values for X and Y

4. Adjust the Search Area—

4a) Manually remove the Vision Calibration Plate from the Vacuum Cup

nozzle. On the Gantry window, turn the Gantry Vacuum switch to OFF.

NOTE: In this example, Programmer 4 is used for illustration pur-

poses. Choose any programmer near the front of the PS288.

4b) Click P4. The PNP head will move to Programmer 4. Center the vac-

uum cup nozzle on the socket in Programmer 4. Use the X-axis and

Y-axis adjustment buttons on the Gantry window to center the PNP

head on the socket.

4c) Click Park to move the PNP head to the Park position. Manually place

a device in the socket of Programmer 4. Click P4 to move the PNP

head back to Programmer 4. Adjust the width of the Socket Actuator

ribs so that the ribs make contact with the socket top and yet are far

enough apart to be clear of the device when the device is picked.

Maintenance • Adjustments, Calibrations, and Functional Tests

5—48 PS288 Owner’s Manual

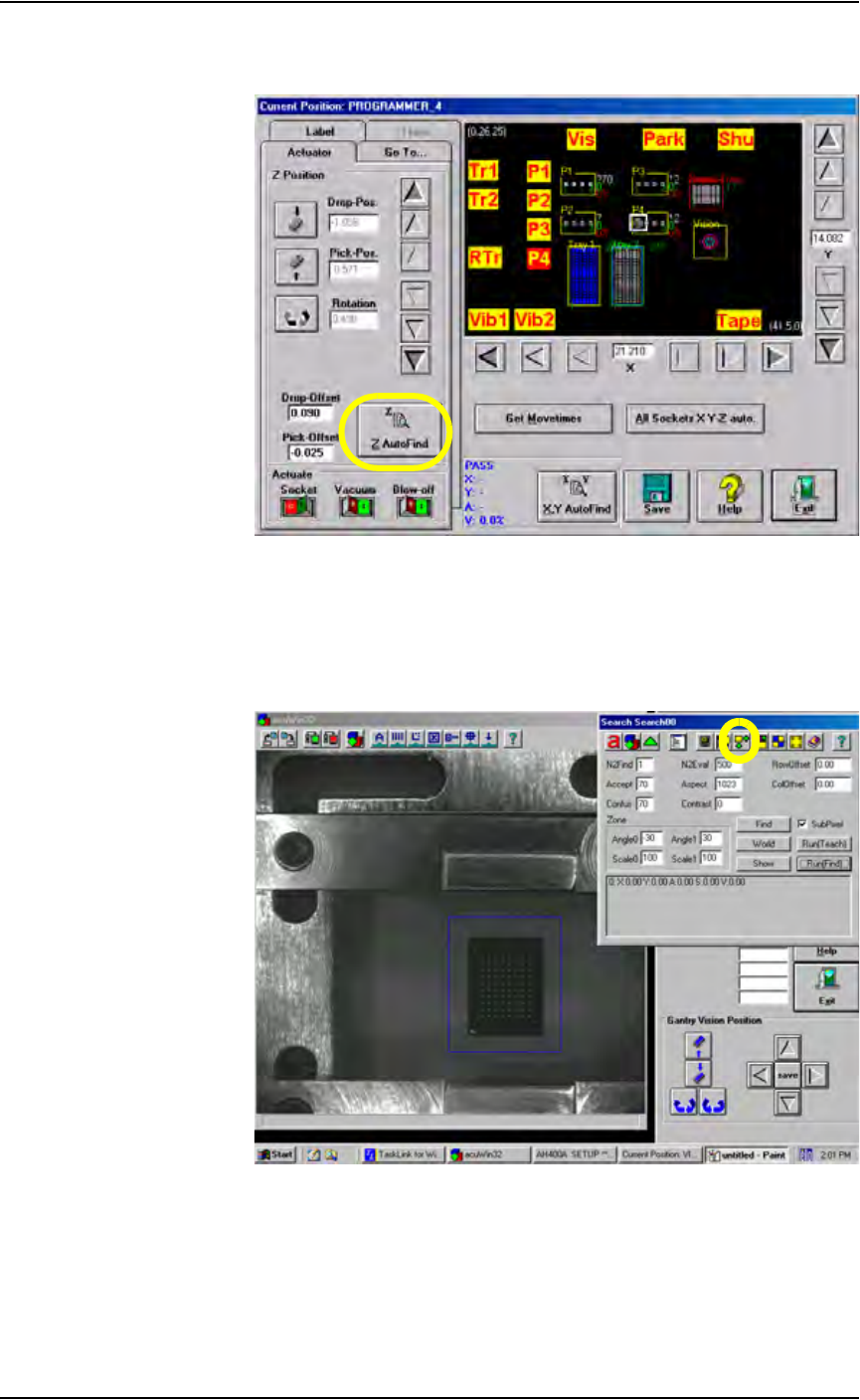

4d) On the Actuator tab, click Z AutoFind. See Figure 5-56. Ensure that

the device is picked from the center.

Figure 5-56—Z AutoFind.

4e) Pick up the device by right-clicking the touchpad over the device.

Left-click over the Vis area on the window to move the device to the

Vision system.

4f) On the Search Search dialog tool bar, click the icon to open the Area

Object dialog.

Figure 5-57—Click to open Area Object dialog

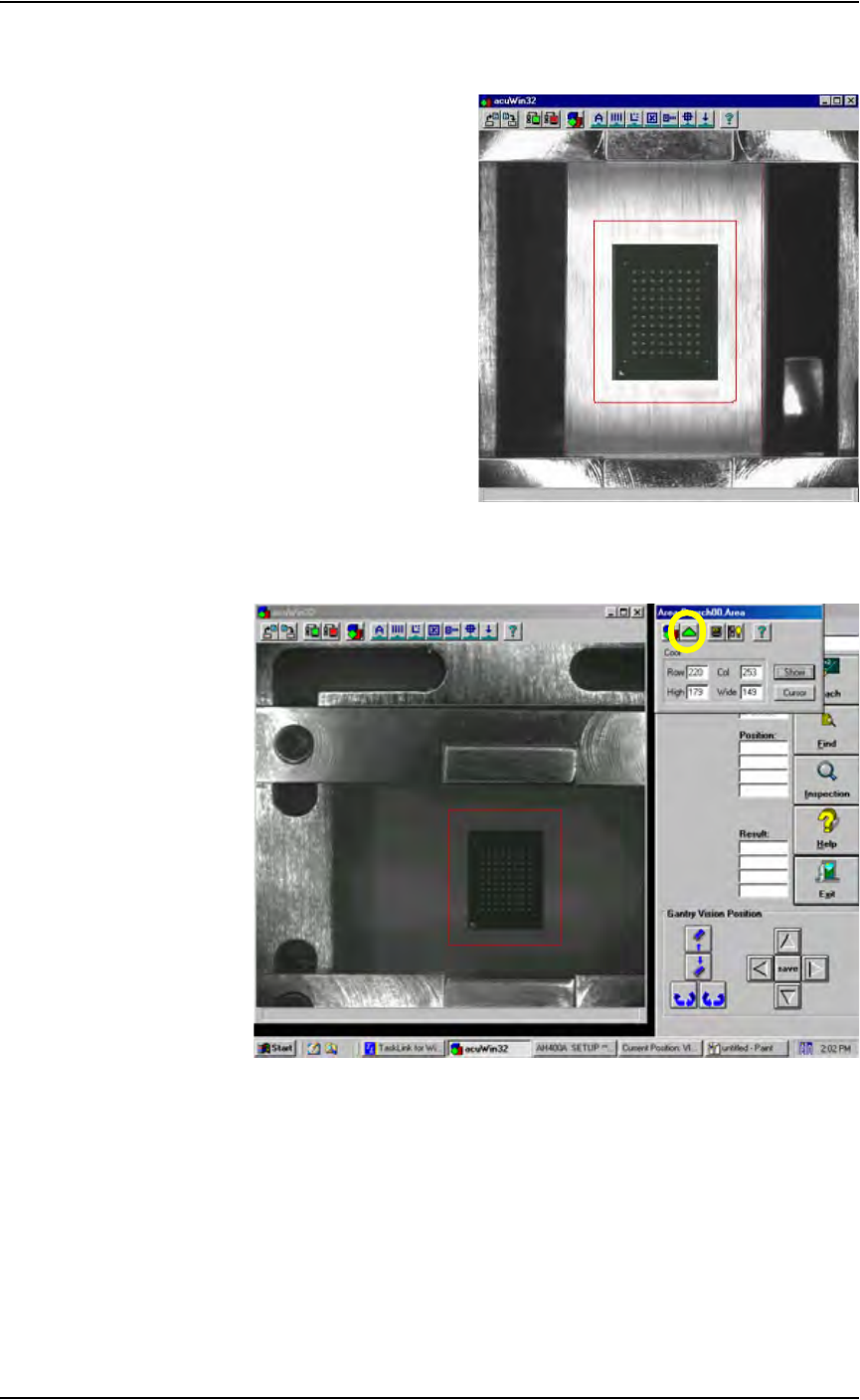

4g) Adjust the size of the device search area (red rectangle) around the

device so that it is 30-50% larger than the device. To adjust the device

Maintenance • Adjustments, Calibrations, and Functional Tests

PS288 Owner’s Manual 5—49

search area, place the arrow on any line, hold the left touchpad button

down, and use the touchpad to drag the line.

Figure 5-58—Adjust device search area around device

4h) When the device search area is adjusted, click the green triangle on the

Area Search00.Area dialog to exit. See Figure 5-59.

Figure 5-59—Click green triangle
