Set Up • (Optional) Setting Up the Tape Output System PS288 Owner’s Manual 2—17 PRESSURE SEAL UNIT : • Remove the Allen head screw on top of pressure seal unit. • Adjust the width of pressure seal unit to match the width…
Set Up • (Optional) Setting Up the Tape Output System
2—16 PS288 Owner’s Manual
Figure 2-20—Adjustable Loading Track
6. Advance carrier tape—
Slide the carrier tape to the left until it passes the Out of Pocket sensor,
as shown in Figure 2-21.
Figure 2-21—Out of Pocket sensor and tape location on the tape output
7. Install seal unit—
HEAT SEAL UNIT:
• Install the heat seal unit that matches the width of the carrier tape. Heat
seal units come in 8, 12, 16, 24, 32, 44, and 56 mm sizes.
• Use the long screw to attach the heat seal unit at the top and the short
screw to attach it at the bottom. See Figure 2-22.
Figure 2-22—Installing heat seal unit
End of carrier tape
Out of Pocket sensor
Set Up • (Optional) Setting Up the Tape Output System
PS288 Owner’s Manual 2—17

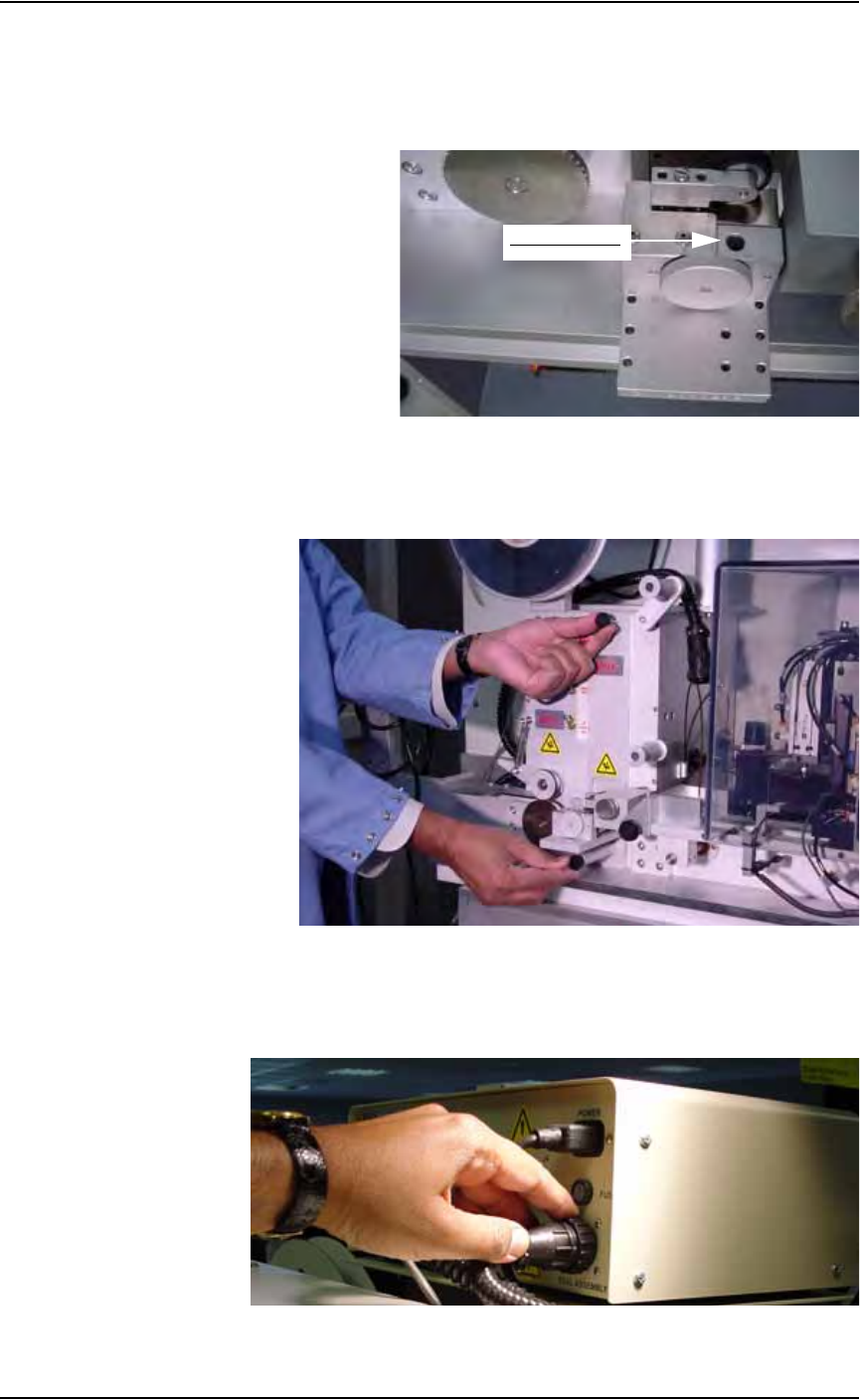

PRESSURE SEAL UNIT:
• Remove the Allen head screw on top of pressure seal unit.
• Adjust the width of pressure seal unit to match the width of tape.
• Tighten the Allen head screw. See Figure 2-23.
Figure 2-23—Adjusting width of pressure seal unit
• Use the short screw to attach the pressure seal unit at the top and the
long screw to attach it at the bottom. See Figure 2-24.
Figure 2-24—Installing pressure seal unit
8. Plug seal unit into control box—
Insert the power cord from the seal unit into the tape output controller
as shown in Figure 2-25.
Figure 2-25—Power cord in tape output controller
Allen head screw
Set Up • (Optional) Setting Up the Tape Output System
2—18 PS288 Owner’s Manual
9. Switch on and adjust seal pressure—
9a) Turn the Air Pressure ON/OFF Switch to ON.
9b) Set the Seal Pressure Adjust Controls so that Inner and Outer air pres-
sure are 40-50 PSI, as shown in Figure 2-26.
Figure 2-26—Seal pressure control settings
10. Install cover tape—
10a) Select cover tape of the same width as the carrier tape.
10b) Install the cover tape reel on the spindle so that the smooth side of the
cover tape faces the seal unit.
10c) Thread the cover tape around Cover Tape Guide #1 and Cover Tape
Guide #2 as shown in Figure 2-27.
Figure 2-27—Path of cover tape
11. Turn power on to tape output controller—
11a) Set Seal Switch to ON position.
Cover Tape Guide #1
Cover Tape Guide #2
