Set Up • (Optional) Setting Up the Tape Output System
2—18 PS288 Owner’s Manual
9. Switch on and adjust seal pressure—
9a) Turn the Air Pressure ON/OFF Switch to ON.
9b) Set the Seal Pressure Adjust Controls so that Inner and Outer air pres-
sure are 40-50 PSI, as shown in Figure 2-26.

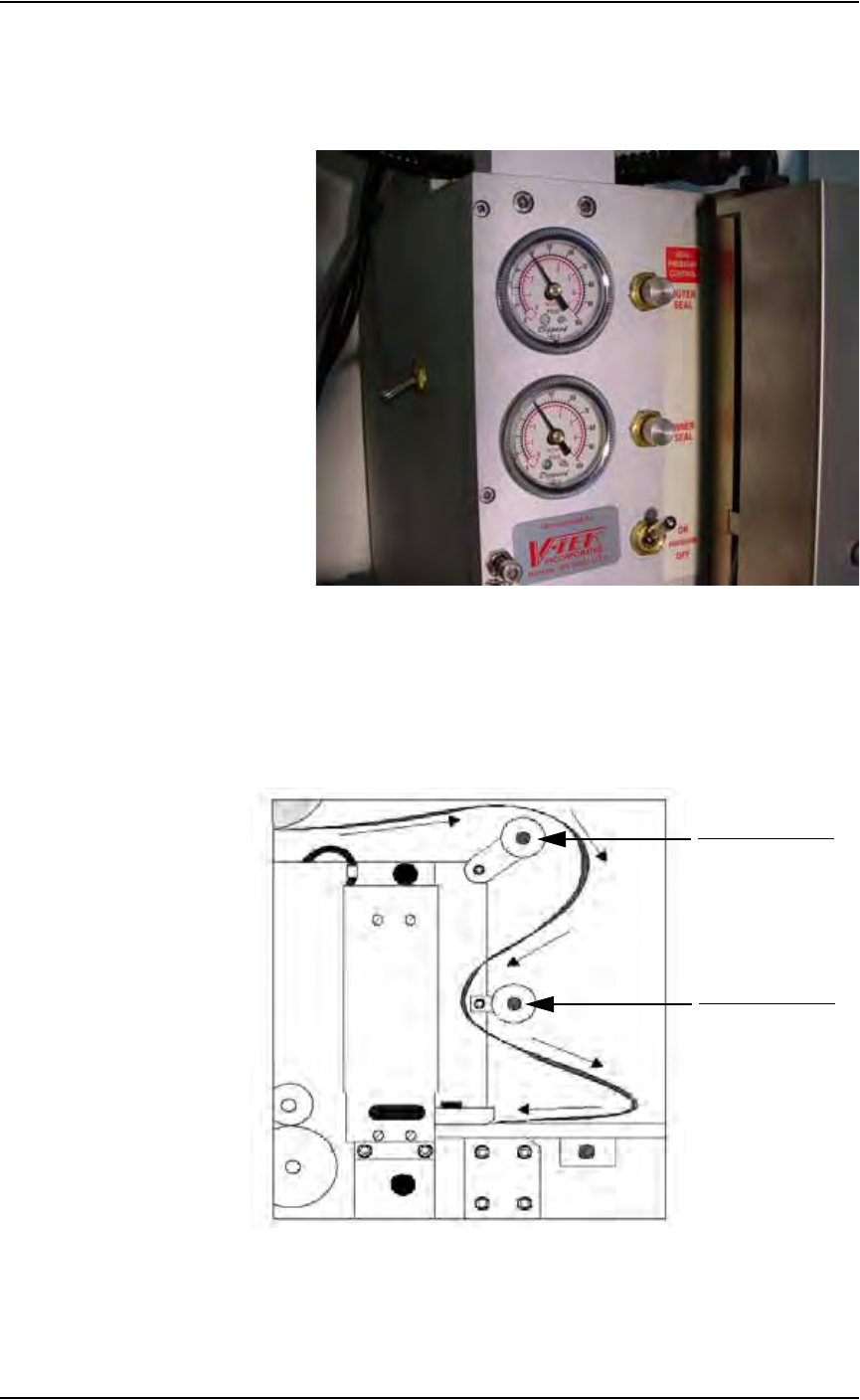

Figure 2-26—Seal pressure control settings
10. Install cover tape—
10a) Select cover tape of the same width as the carrier tape.
10b) Install the cover tape reel on the spindle so that the smooth side of the
cover tape faces the seal unit.
10c) Thread the cover tape around Cover Tape Guide #1 and Cover Tape
Guide #2 as shown in Figure 2-27.
Figure 2-27—Path of cover tape
11. Turn power on to tape output controller—
11a) Set Seal Switch to ON position.
Cover Tape Guide #1
Cover Tape Guide #2
Set Up • (Optional) Setting Up the Tape Output System
PS288 Owner’s Manual 2—19
11b) Set Inside and Outside temperature to 150-160
° C.
11c) Wait for temperature to reach target range. See Figure 2-28.

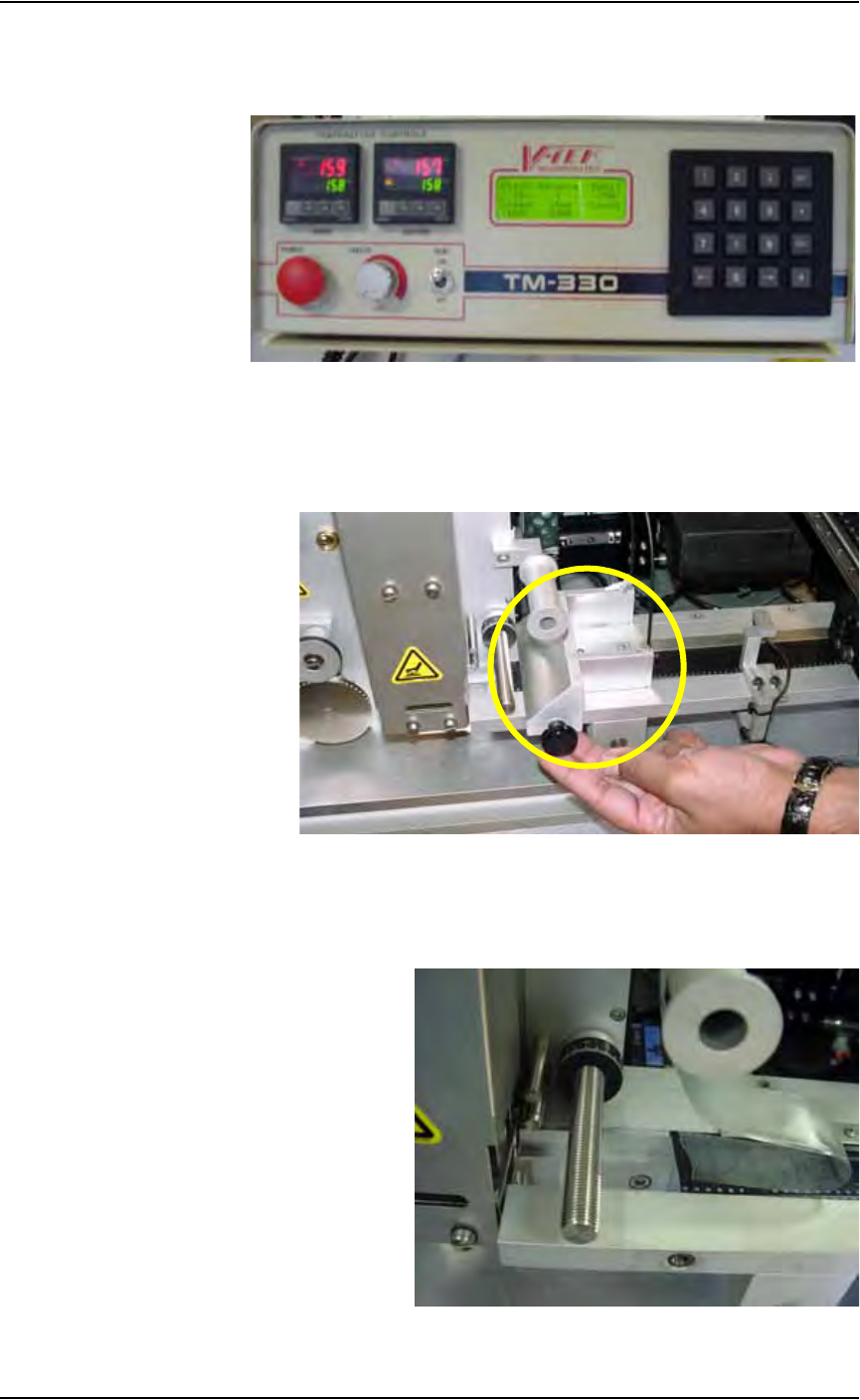

Figure 2-28—Power and heat settings
12. Remove Sensor Clamp Block—
Remove and set aside the Sensor Clamp Block to facilitate advancing
the carrier tape through the seal unit. See Figure 2-29.
Figure 2-29—Remove sensor clamp block
13. Attach cover tape to carrier tape—
Use a small piece of adhesive tape to attach the end of the cover tape to
the carrier tape. See Figure 2-30.
Figure 2-30—Combine cover and carrier tape
Set Up • (Optional) Setting Up the Tape Output System
2—20 PS288 Owner’s Manual
14. Advance combined tape—
Advance the combined cover/carrier tape through the seal unit.
15. Install Cover Tape Guide #3—
15a) Cover Tape Guide #3 comes in 8, 12, 16, 24, 32, 44, and 56 mm sizes.
Pick the size that matches the carrier tape width.
15b) Slide Cover Tape Guide #3 onto shaft (as shown in Figure 2-31) and
tighten the knurled knob.
Figure 2-31—Cover Tape Guide #3
15c) Reinstall the Sensor Clamp Block.
16. Advance combined cover/carrier tape through seal unit—
Slide the combined cover/carrier tape through the seal unit until it is
visible on the left of the seal unit.
17. Drive sprocket—
17a) Lift the Idler Arm and insert the combined cover/carrier tape.
17b) Align the holes on the combined cover/carrier tape with the teeth on the
Drive Sprocket. See Figure 2-32.
Figure 2-32—Idler Arm and Drive Sprocket
