Operation • Administrator Functions
PS288 Owner’s Manual 3—29

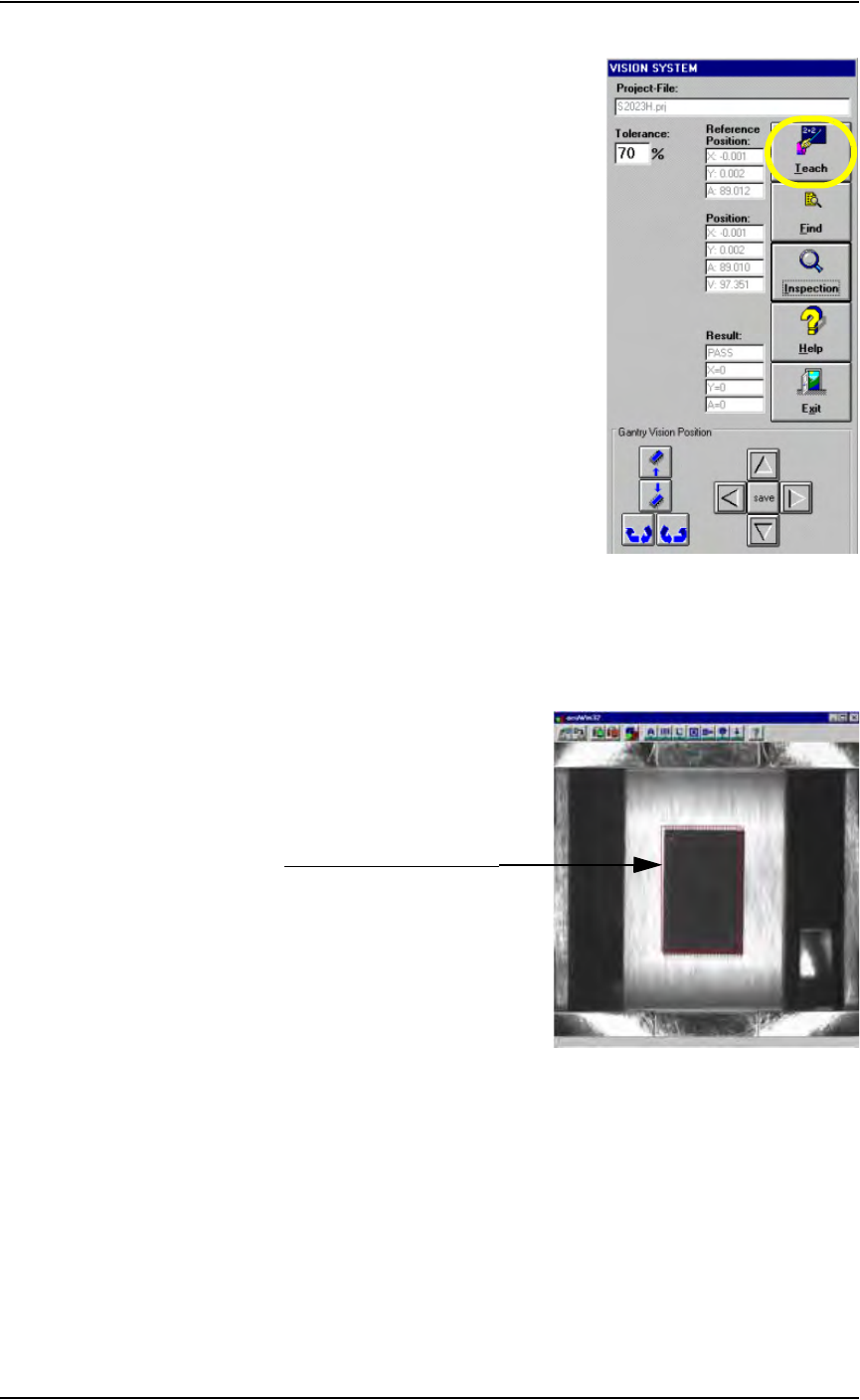

Figure 3-39—Click Teach
8b) In the acuWin32 window, size the device image area (red rectangle) so
that it matches the edges of the device. In Figure 3-40, the device
image area is offset slightly from the device for clarity. In actuality, the
device image area needs to match the device exactly.
Figure 3-40—Device image area (red rectangle) matches the device
8c) When the device image area exactly matches the device, click OK.
8d) If the Attention message box appears, click Ye s to save the changed
value. See Figure 3-41.
Device image area (red rectangle)
Operation • Administrator Functions
3—30 PS288 Owner’s Manual
Figure 3-41—Save changed value
9. Check new values—
9a) On the Vision System window, note the new Reference Position val-
ues for X and Y. Values are in inches. Ideally, these values are 0 (zero).
Values of ±0.005 inches are within tolerance. In the example shown
here, X = - 0.001 and Y = 0.002.
9b) Note the Verification value. This value should be greater than 95. In
the example shown here, the value is 97.351.
NOTE: If values are not within tolerance, proceed with Step 10. If
the values are within tolerance, skip forward to Step 11.
Figure 3-42—New values
10. Adjust device image area again (if necessary)—
10a) Adjust the device image area and move it in the X-axis and/or Y-axis
direction as required.
10b) On the Vision System window, click Teach again.
10c) On the Attention message box, click Yes to accept changed values.
Reference Position values
Verification value
Operation • Administrator Functions
PS288 Owner’s Manual 3—31
10d) Check new Reference Position and Verification values.
11. Inspect—
11a) Click Inspection on the Vision System window.
Figure 3-43— Click Inspection
11b) Verify that the Result now reads as shown in Figure 3-44.
PASS
X = 0
Y = 0
A = 0
Figure 3-44—Result: PASS
