B-113cab - Produkttechnik GmbH / Tharo Systems, Inc.
Interface Cable for RS-232
The following chapter shows some typical RS-232 interface cable configura-
tions. Note, that the pin assignment may vary for different computers. If you
have any problems with the connections, contact the manufacturer of your
computer on the pin assignment of the interface. Use the pin assignment of
the printer as shown in Table B-1 to obtain a suitable cable.
PC Apollo
25 pin connector 25 pin plug
PC Apollo
9 pin connector 25 pin plug
22
33
57
820
14
45
6

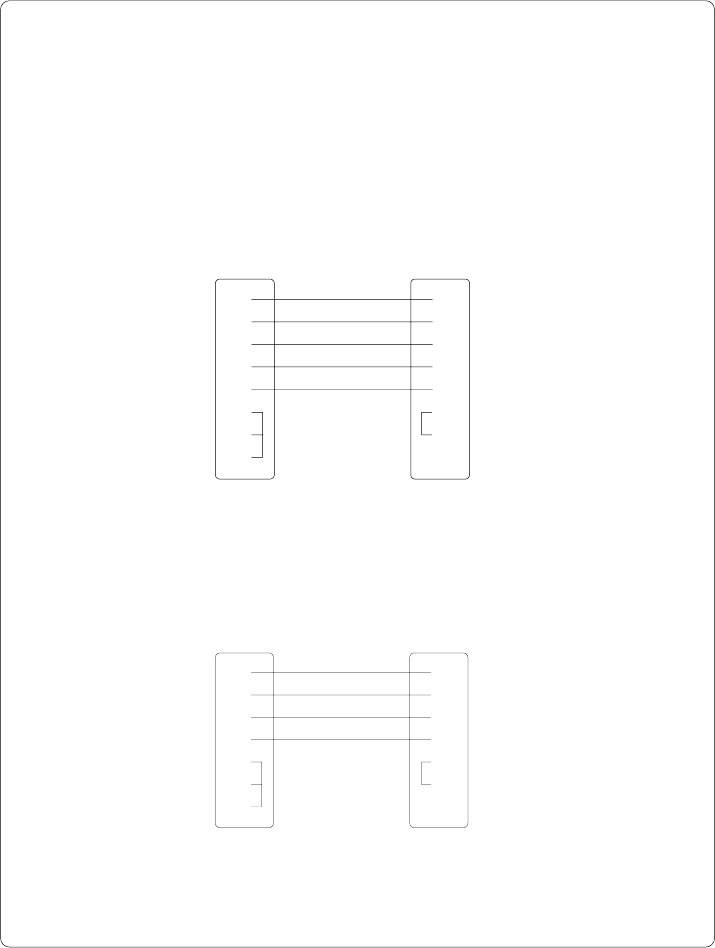

Fig. B-3 Interface cable with 9 pin computer connector
for RS-232 with protocol " ---" or "XON/XOFF"
Fig. B-2 Interface cable with 25 pin computer connector
for RS-232 with protocol " ---" or "XON/XOFF"
11
23
32
520
77
64
85
20
B-114 cab - Produkttechnik GmbH / Tharo Systems, Inc.
Interface Cable for RS-422/ RS-485
To control the Apollo by RS-422/ RS-485 interface, only the signals TDATA+,
TDATA-, RDATA+, and RDATA- are necessary.
Check the pin assignment of the interface of your computer, and use the pin
assignment of the printer as shown in Table B-1 to obtain a suitable cable.
PC Apollo
9 pin connector 25 pin plug

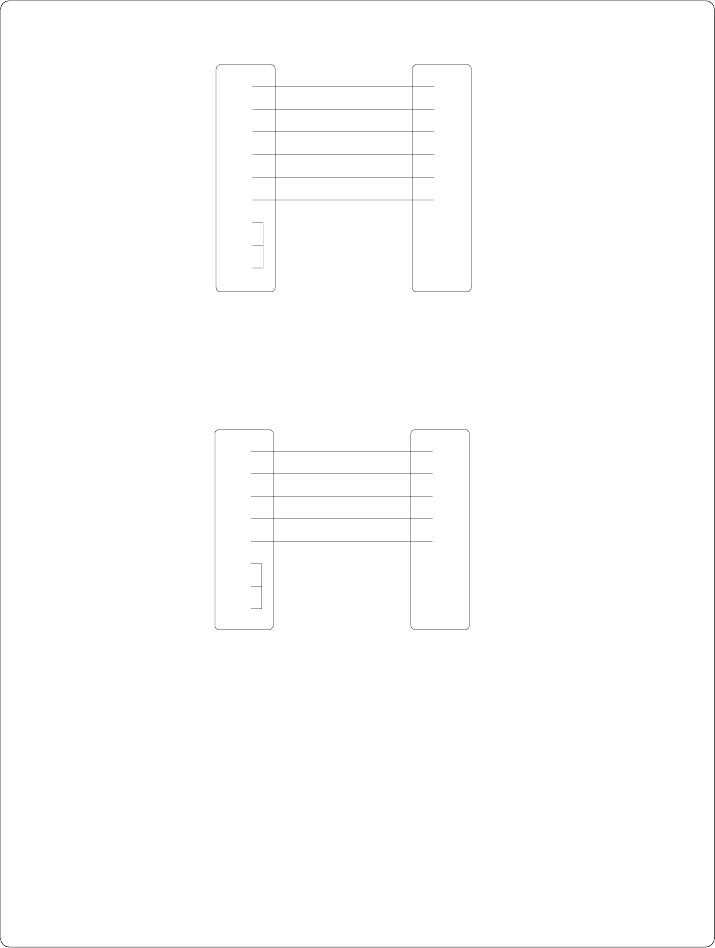

Fig. B-5 Interface cable with 9 pin computer connector
for RS-232 with protocol "RTS/CTS" or "XON/XOFF"
PC Apollo
25 pin connector 25 pin plug
Fig. B-4 Interface cable with 25 pin computer connector
for RS-232 with protocol " RTS/CTS" or "XON/XOFF"
22
33
57
75
84
1
4
6
11
23
32
45
54
77
6
8
20
B-115cab - Produkttechnik GmbH / Tharo Systems, Inc.
Pin Assignment of the Parallel Interface Connector
The Apollo provides a 36 pin connector for the parallel Centronics interface.
Table B-2 Signals of the Centronics interface

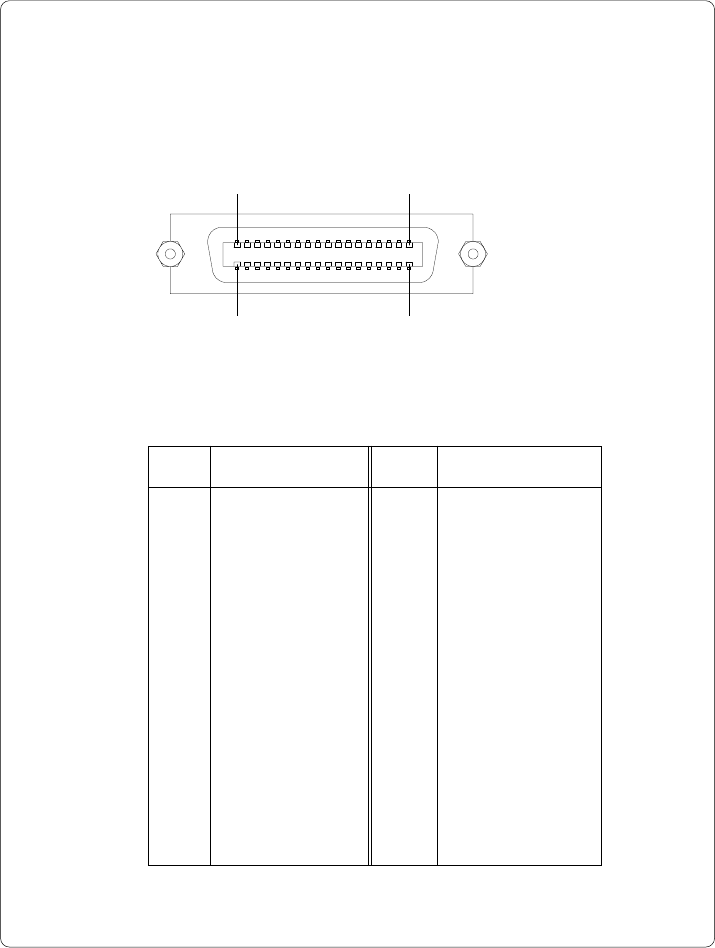

Fig. B-6 Centronics interface connector (rear of the printer)
Pin Signal Pin Signal
1 /STROBE 19 GND
2 DATA 1 20 GND
3 DATA 2 21 GND
4 DATA 3 22 GND
5 DATA 4 23 GND
6 DATA 5 24 GND
7 DATA 6 25 GND
8 DATA 7 26 GND
9 DATA 8 27 GND
10 /ACKNLG 28 GND
11 BUSY 29 GND
12 PE 30 GND
13 SLCT 31 nc
14 nc 32 nc
15 nc 33 nc
16 GND 34 nc
17 nc 35 nc
18 nc 36 nc
Pin 18 Pin 1
Pin 19Pin 36
