26 cab - Produkttechnik GmbH / Tharo Systems, Inc. 1 2 3 6 7 8 9 10 11 4 5 12 Fig. 4 e Detailed view of the print mechanism (Apollo 2/3) 1 - Printhead lever 2 - Media guide 3 - Rewind media guide 4 - Label edge sensor 5 …

25cab - Produkttechnik GmbH / Tharo Systems, Inc.

Fig. 4 d Side view Apollo 2/3 (with cover open)

1 2 3 4 5

6 7 8

1 - Ribbon take up hub

2 - Ribbon supply hub

3 - Media hub

4 - Media retainer

5 - Media retainer knurled head screw

6 - Print mechanism (for details see Figure 4 e)

For Apollo 2/3 with internal rewinder

7 - Media rewind hub

8 - Media rewind locking lever

26 cab - Produkttechnik GmbH / Tharo Systems, Inc.

4512

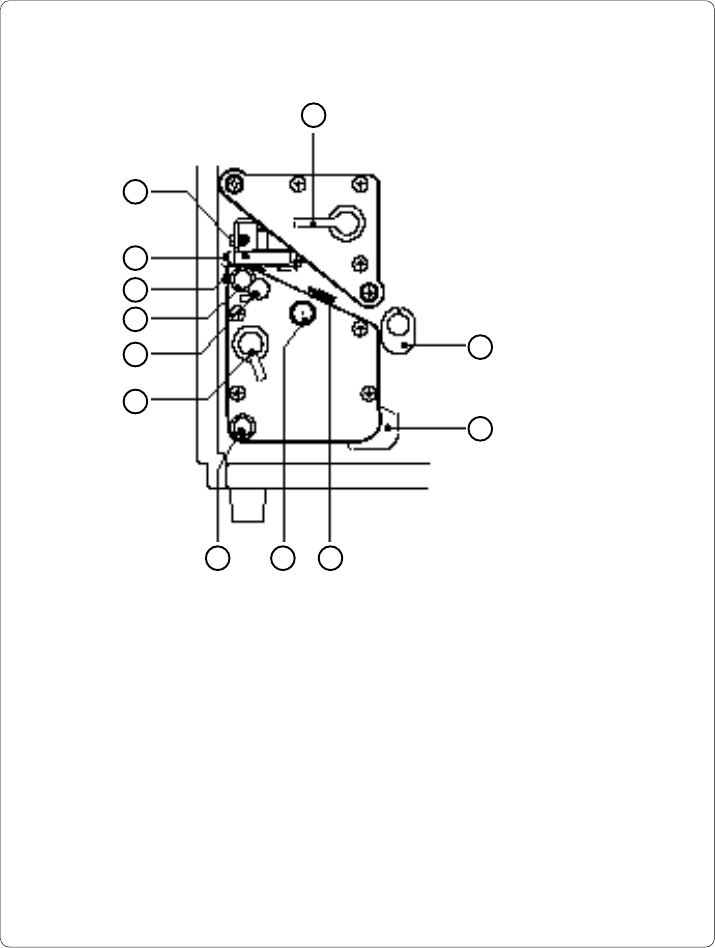

Fig. 4 e Detailed view of the print mechanism (Apollo 2/3)

1 - Printhead lever

2 - Media guide

3 - Rewind media guide

4 - Label edge sensor

5 - Label edge sensor adjustment knob

6 - Accessory lock/ release lever

7 - Printhead levelling adjustment screw

8 - Media feed roller

9 - Dispense/ Tear-off plate

10 - Ribbon shield

11 - Thermal printhead

For Apollo 2/3 with internal rewinder

12 - Rewind assist roller

27cab - Produkttechnik GmbH / Tharo Systems, Inc.

1 - Memory card module slot

2 - Input voltage selector/ Fuse holder

3 - Input voltage selector cover

4 - Power switch

5 - Power supply connector

6 - Serial interface port

7 - Parallel interface port

8 - Slot for fanfold paper

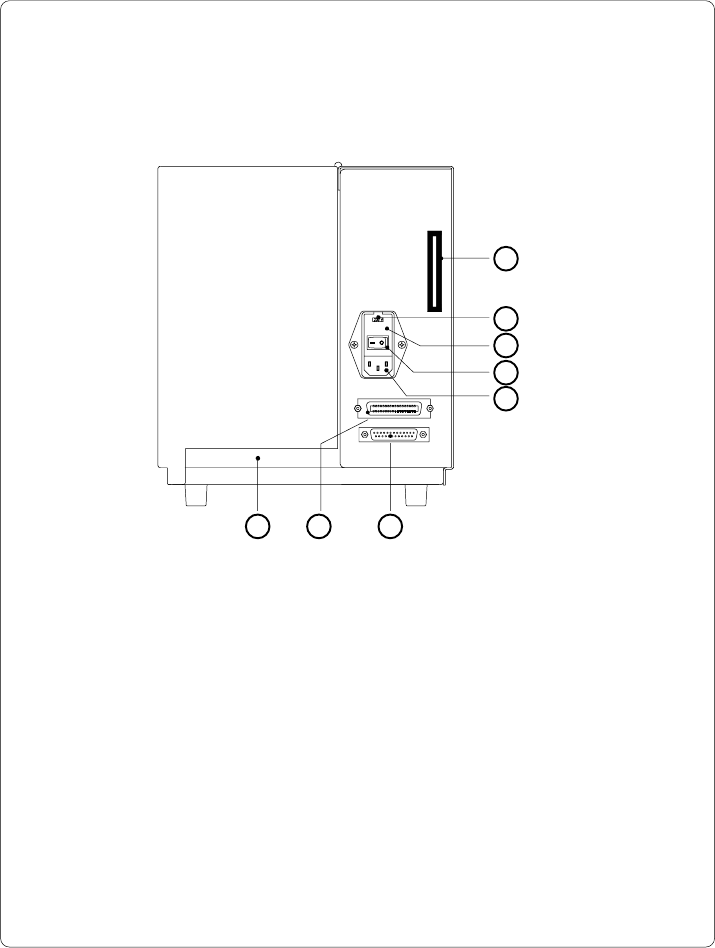

Fig. 4 f Back view Apollo 1/2

8 7 6
