Backfeed
In the cut and dispense mode, the material will be stopped in a position where
the front edge of the following label has already been forwarded over the print
line. The Apollo will carry out a backfeed of the label material from its cut/
dispense position to the print line. Thus, the next label can be printed all at once.
The backfeed will be performed independent of the label design if the parameter is
set on "always". If the setting is on "smart", the backfeed will only be performed if
the front label is in its cut/ dispense position and the Apollo has not yet received all
of the data for printing the following label. Otherwise, the print of the second label
will be started, but only completed after the first one has been picked up. Smart
backfeed can cause flaws in the printed image.
Besides, Apollo 1 offers to select from two backfeed modes, either "head lift-off"
or "head down". By selecting Head lift-off the printhead is raised with each
backfeed of material. This prevents smudging of the label material by the
ribbon. If the printhead is turned down the accuracy of positioning is more
precise.
Default Setting : head lift-off (Apollo 1), smart
1 Apollo 1
2 Apollo 2
3 Apollo 3
15 Backfeed
14
Copy memory card
16 Debug mode
Backfeed
head lift-off
Backfeed
head down
Backfeed
xxx Ye s
Backfeed
xxx No
Selection
Confirmation
Backfeed
smart
Backfeed
always
Selection
23
1

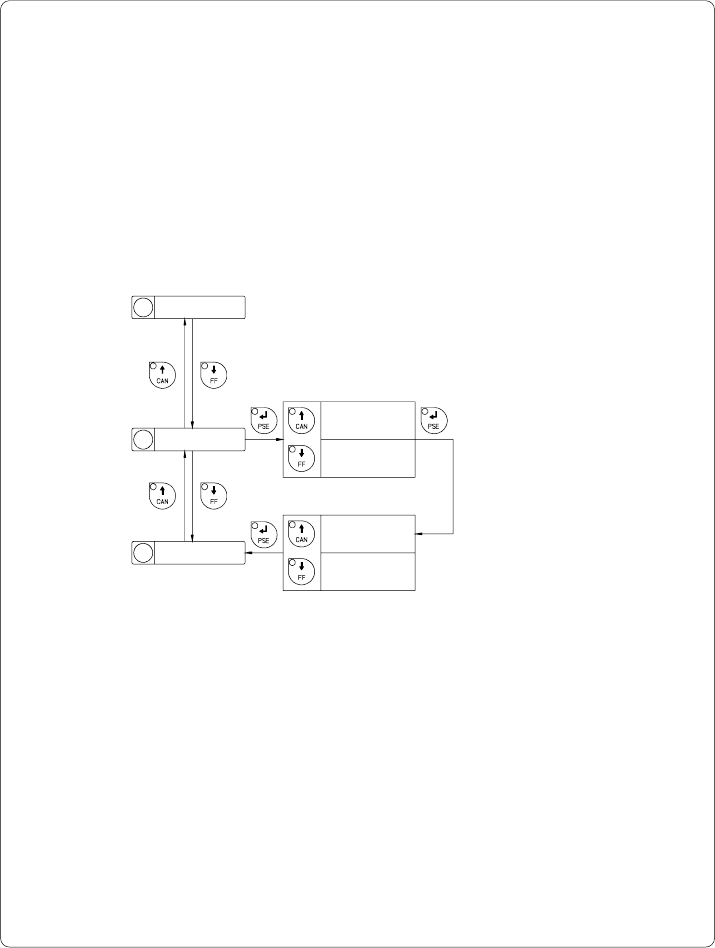

Fig. 9 q Set "Backfeed" parameter
67cab - Produkttechnik GmbH / Tharo Systems, Inc.
Debug Mode
The "Debug mode" represents a tool for the firmware programmer.
It will help to recognize faults and their possible sources beyond standard error
messages.
For standard use of the printer, the parameter should always be switched OFF.
Default Setting : Debug mode OFF
Debug mode
Off
Debug mode
On
Debug mode
xxx Ye s
Debug mode
xxx No
Selection
Confirmation
Fig. 9 r Set "Debug mode"
15 Backfeed
16 Debug mode
17 Tear-off positio
68 cab - Produkttechnik GmbH / Tharo Systems, Inc.
Tear-off Position
If the "Tear-off position" is active, an additional feed forwards will take place
after completion of the print job. This makes it possible to cut off the last label
at the tear-off plate. After starting a new print job, first the label material will be
fed back until the front edge of the first label is located at the print line.
If the parameter is OFF, the label dispense stops immediately after the last
label has completely passed the print line.
Default Setting : Tear-off position OFF
Tear-off positio
On
Tear-off positio
xxx Ye s
Tear-off positio
xxx No
Selection
Confirmation
Fig. 9 s Set "Tear-off position" parameter
16 Debug mode
17 Tear-off positio
18
Pause reprint
Tear-off positio
Off
