84 cab - Produkttechnik GmbH / Tharo Systems, Inc. 1. Use a cardboard roll ( 5 ) which is about .04 in (1 mm) wider than the label strip. 2. Attach the rewinder to the Apollo by positioning the metal posts on the bottom …

cab - Produkttechnik GmbH / Tharo Systems, Inc.

Rewinding Directly onto the Rewind Axle

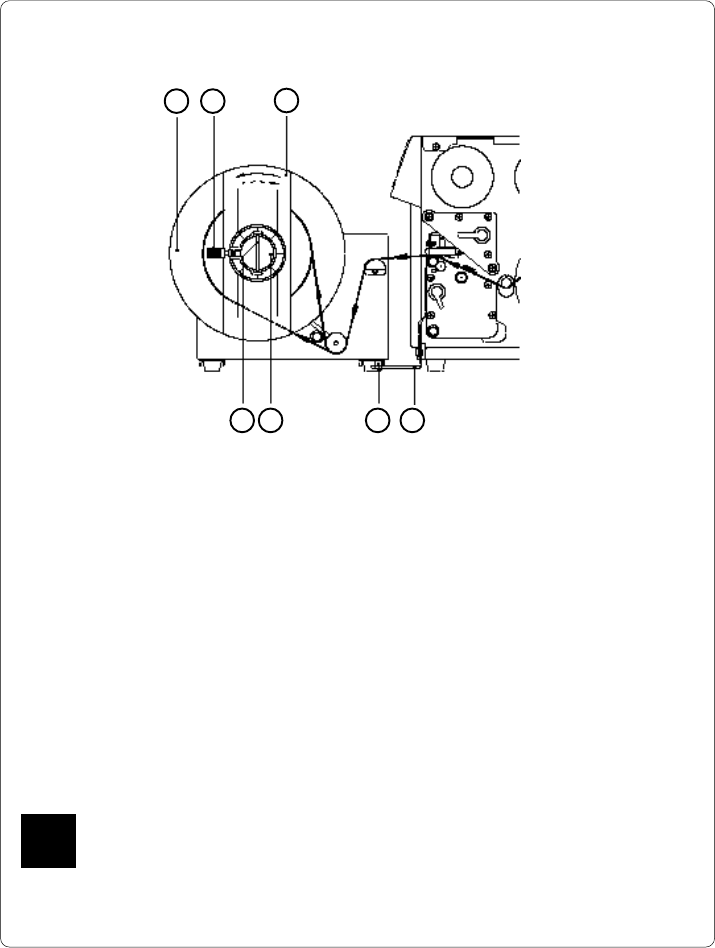

Fig. 13 f Rewinding directly onto the rewind axle

1. Attach the rewinder to the Apollo by positioning the metal posts on the

bottom of the rewinder (5) into the holes of the adapter plate (4).

2. Feed the label strip over the guide bar and under the roller onto the

rewinder axle (6) as shown in Figure 13 f.

3. Considering the required method of rewinding, secure the label strip appro-

priately to the rewinder axle (6) by sliding the clamp (7) over the label strip

with the clamp set in the groove. (the broken line shows the path of inside

rolled labels)

Ensure that the label strip is even with the disc (1).

4. Slide the clamp (7) as far as possible towards the disc (1).

5. Slide the flange (3) onto the rewind axle (6) so that it slightly touches the

label strip. The label strip must be able to move slightly between the disc

and the flange.

6. Tighten knurled screw (2) in the flange (3).

7. Switch the rewinder ON.

Caution !

When switched ON, the rewinder immediately starts rotating !

457 6

84 cab - Produkttechnik GmbH / Tharo Systems, Inc.

1. Use a cardboard roll (5) which is about .04 in (1 mm) wider than the label strip.

2. Attach the rewinder to the Apollo by positioning the metal posts on the bottom

of the rewinder (4) into the holes of the adapter plate (3).

3. Mount the first axle adapter (6) onto the rewinder axle (2) and slide it up to the

disc (1). Tighten knurled screw (7).

4. Mount the second adapter onto the rewinder axle (2). Slide it towards the first

adapter until the clearance between the edge of the adapter and the disc (1)

is a little less than the width of the cardboard roll (5). Tighten knurled screw

(7).

5. Slide the cardboard roll (5) over the two adapters (6) until it is touching the disc

(1).

6. Feed the label strip over the guide bar and under the roller as shown in Figure

13 g up to the cardboard roll (5).

7. Using adhesive tape or a label, affix the end of the label strip to the cardboard

roll (5). (the broken line shows the path of inside rolled labels)

8. Slide flange onto the rewind axle (2) until it stops at the cardboard. Tighten

knurled screw.

9. Switch the rewinder ON.

Caution !

When switched ON, the rewinder immediately begins rotating !

Fig. 13 g Rewinding onto 3 in (75 mm) cardboard cores

(view without flange)

Rewinding on to 3 in (75 mm) Cardboard Rolls

6 57 4 3

1 2

cab - Produkttechnik GmbH / Tharo Systems, Inc.

Cutter Assembly

With the optional cutter assembly installed, labels or endless media may be

cut off immediately after being printed.

The cutter is controlled and powered by the peripheral port of the Apollo.

The firmware of the printer allows a backfeed of the label stock so that it is

always possible to print the last label in its entirety before it is cut off.

The cutter assembly is delivered in a separate package.

Please keep the original packaging in case the cutter must be returned !

Fig. 13 h Mechanical mounting of the cutter

The printer must be switched OFF before mounting the cutter !

The cutter may be used only when mounted onto the Apollo !

Installing the Cutter

3 2
