2.2 Setup screen
This section describes the operation buttons displayed on the Setup screen.

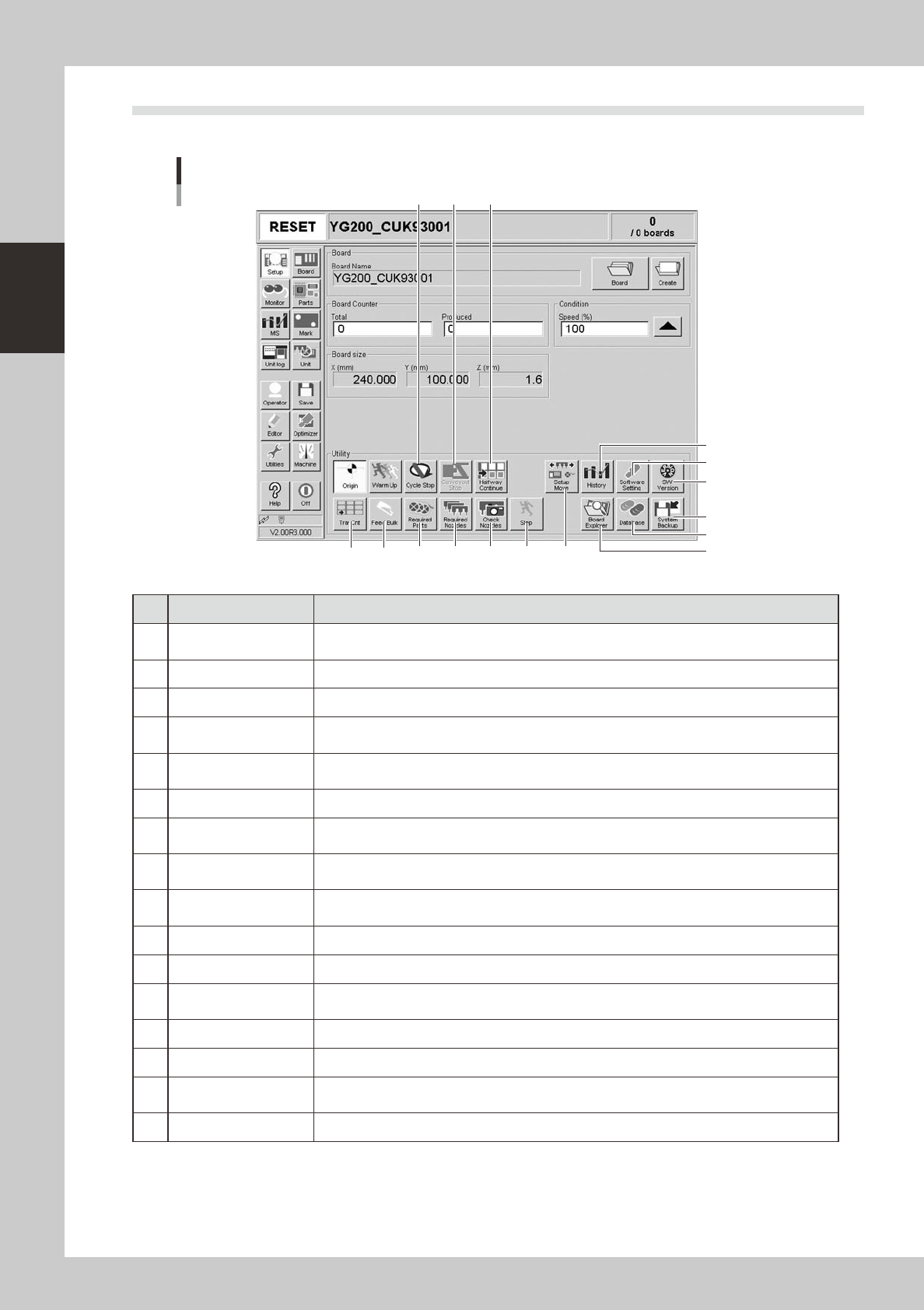

Setup screen
1
2
3
4
5
6
7
8 9
14 15 16
13121110
24203-M0-00
Button name Function
1 History
Saves production history data, and saves or clear any desired items of "MIS" and "Unit log"
records. Also use this button when removing a storage medium from the machine.
2 Software Setting Sets machine screen display items, adds or deletes operators, and sets passwords.
3 Version Shows version information on application software and system.
4 System Backup
Makes a backup of machine coordinates, accuracy information, option device information and
standard coordinates necessary for machine operation or restores the data using the backup.
5 Database
Makes a backup of parts and mark database necessary for board production or restores the data
using the backup. Also sets the database locations.
6 Board Explorer Moves, backs up, restores or copies board data.
7 Cycle Stop
Stops machine operation just after mounting components on the current board, for example, to
check the mounted results or to prevent the board from flowing to the downstream machine.
8 Convey-out Stop
Stops machine operation after mounting components on all boards on the conveyor and
transferring them to the downstream machine.
9 Halfway Continue
After stopping the machine for some reason during component mounting and resetting the data,
pressing this button loads that data to resume component mounting from the next mount point.
10 Tray Cnt Displays the number of tray components that have been used.
11 Feed Bulk Feeds bulk components to the pickup position of a bulk feeder.
12 Required Parts
Displays the component types and feeder positions that are set up for the production to be
started.
13 Required Nozzles Displays a list of nozzles to be used.
14 Check Nozzles Checks if nozzle tips for chip components are dirty or clogged by acquiring their images.
15 Step
Temporarily stops the machine at a specific position, for example, during initial component
mounting, test mounting, or trouble analysis.
16 Setup Move Moves the head and conveyor to their setup positions.
2-11
2
Basic operation
2.3 Unit screen
This section describes the manual operation buttons on the Unit screen.
n
Manual conveyor operation
3
1
2 4
6
7 8

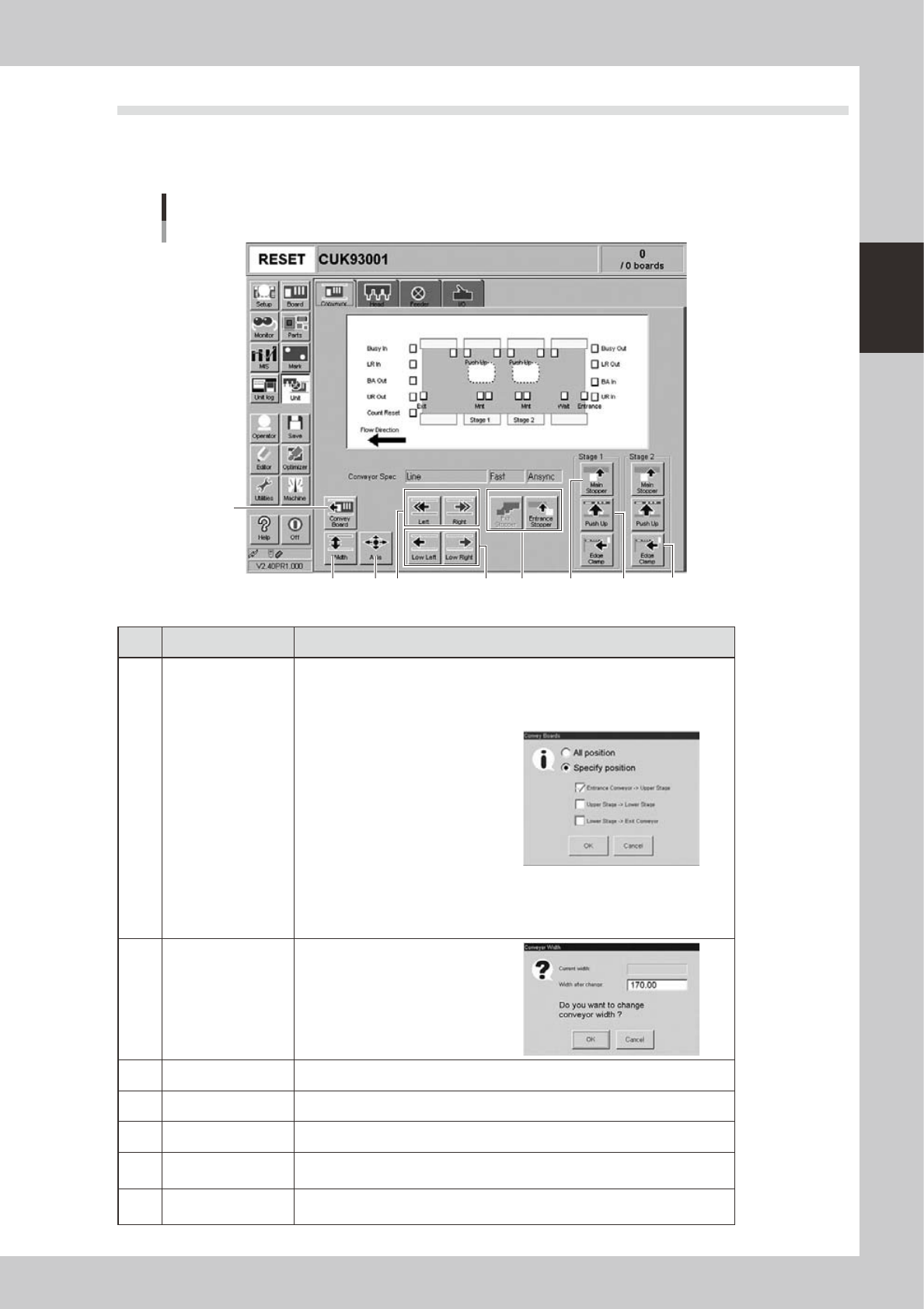

[Unit] - [Conveyor] screen
Screen example of YG200L
5
9
24204-M2-00
Button name Function
1 Convey Board
Opens the dialog box shown on
the right. Specify the method for
transferring boards, for example, from
the conveyor entrance or standby
position to the clamp position.
• "All positions": Transfers the boards
on the conveyor in sequence from
"Downstream stage to exit conveyor" -
"Upstream stage to downstream stage"
"Entrance conveyor to upstream
stage".
• "Specify position": Transfers the
boards only in the sections specified
with the check box under this button.
When all three check boxes are
selected, this is the same as selecting
the "All positions" option button
2
Width
Displays the "Conveyor Width" dialog
box. Check or enter the conveyor
width and press the [OK] button to
adjust the conveyor width.
3 Axis Opens the "Move Axis" screen that allows manual movement on each axis.
4 Left, Right Rotates the conveyor belt.
5 Low Left, Low Right Rotates the conveyor belt at a slow speed.
6
Exit Stopper / Entrance
Stopper
Raises or lowers the exit stopper or entrance stopper.
7 Main Stopper
Raises or lowers the main stopper that stops a board in the clamp position on
the conveyor.
2-12
2
Basic operation
Button name Function
8 Push Up
Opens the "Conveyor Push Up"
dialog box. Check or enter the board
thickness and press the [OK] button to
clamp the board by pushing it up from
the bottom.
9
Edge Clamp
(YG200L only)
Use this button to check the edge clamp operation.
n
Axis movement

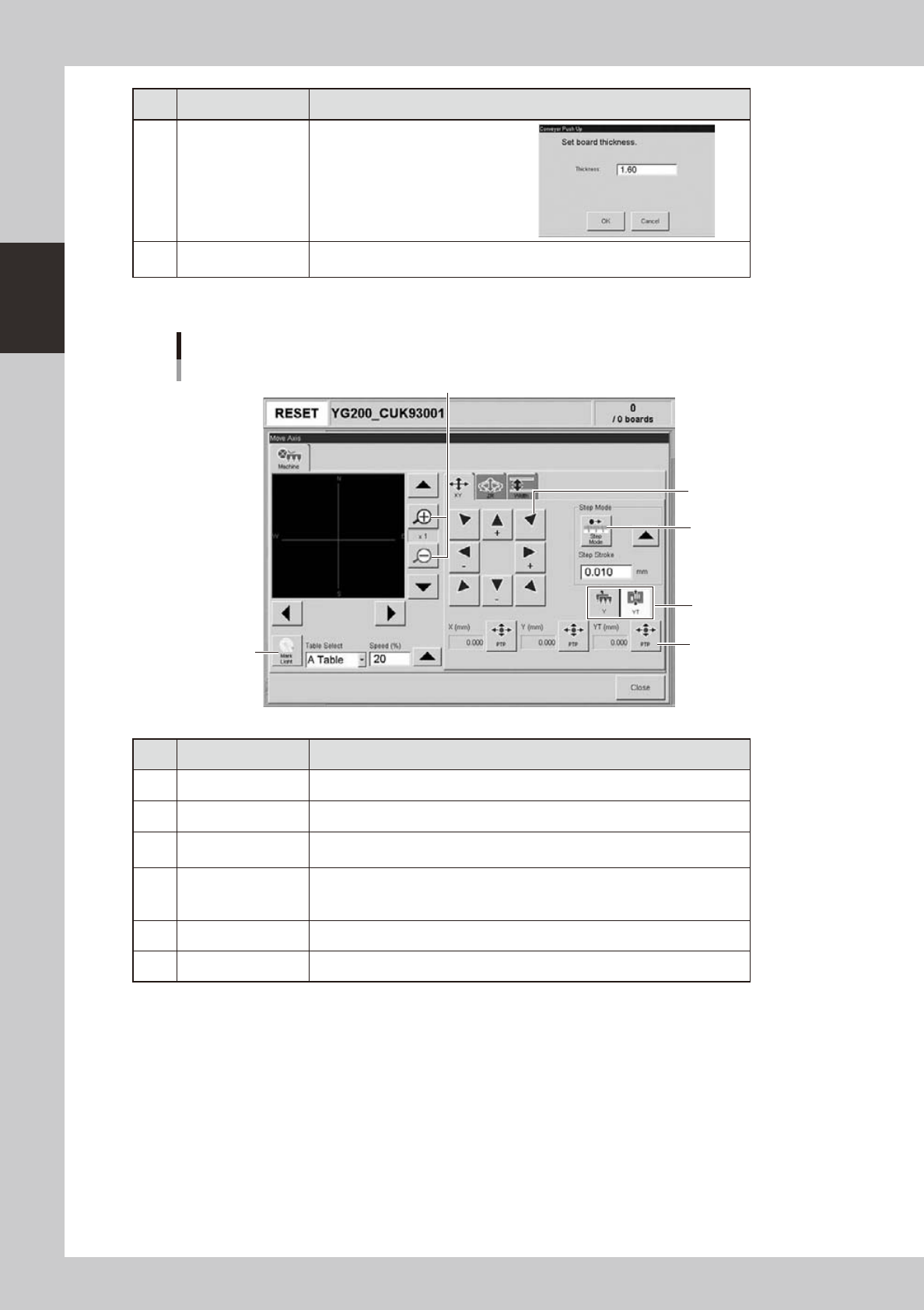

"Move Axis" screen
1
2
3
4
5
6
24206-M2-00
Button name Function
1 Zoom in/out (+, -) Zooms in or out the image. (16 times to 1/16 times)
2 Mark Light Allows changing mark lighting manually. Using this button does not affect data.
3 PTP
Displays the "PTP" dialog box that allows directly specifying the position where
you want to move the selected axis.
4 Step Mode
When this button is pushed in, the selected axis can be moved in "step mode
(inching mode)" with the arrow buttons at a specified step stroke (inching
stroke).
5 Arrow Use these buttons to move the selected axis in the desired direction.
6 Y/YT Use these buttons to switch between the Y axis and YT axis (table axis).
