DEK Printer Training
Prepared by :KENNY
Date : 25 June, 2006
VER1.0
Dek Printer Training 1/70 25 June 2006
1. Machine Overview 机器概述

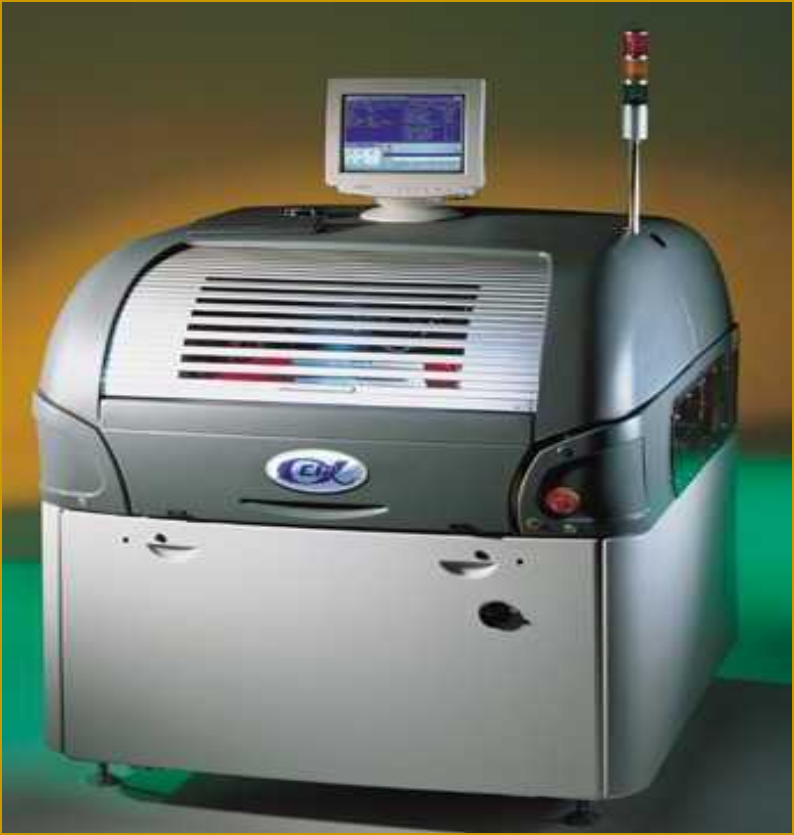

DEK 710
Stencil Size : 29” X 29”. If the stencil is not this size. Need to using Adapter.
钢网大小: 29 寸 X 29 寸.如果不是这大小要用钢网适配器
Camera: Cyber optic digital camera(Interface : IEEE1394 ,camera model is GREEN)相
机用 Cyber optic 数码相机(用 IEEE1394 连接, 相机型号 : GREEN)
2XCMOS 用二倍 CMOS 镜头
FOV=11.3 x 8.5 mm 每次可照大小是 11.3 x 8.5 mm
15 microns per pixel
Fiducial Size : 0.5mm - 3.0mm
Conveyor type : Front Fixed , L-L,R-R,L-R,R-L(If using Right to Left, it have right feed
delay time) 送板模式: 固定边在前面, 左进左出,右进右出,左进右出,右进左出(如果设
定是右进左出‧，会有一延迟时间设定)
PCB support : 81mm height 顶针是 81mm 高
Setup Machine Frame Leg : 36mm & 24 mm Spanner.机器脚的板手用 36mm 及 24mm
Voltage : 230V single phase(max 10A)230 伏单相电‧最大电流 10 安培
Weight :650kg 重量 650kg.
Table is fixed. Stencil can adjust.抬 XY 固定.只可上落Ｕ，
钢网可 XY 方向走动
Screen Offset Adjust
钢网走动
X,Y offset : +-3 degreeX & Y 正负三度
X have two offset motor (Fwd & rear) X 方向有两个马达
Y only have one offset motor. Y 方向有一个马达
Only 2 fiduical moark can setup. 只有二个 MARK(PCB 2 个,
钢网 2 个)
Board stop : Only mechnical stopper. 停板用机械气动顶住
One Board detect sensor 有一个看 PCB 的感应器
Board Handling ：
Minimum Size 40 x 50mm
Maximum Size 508 x 508mm
Thickness 0.2mm - 6mm
Maximum Weight 1Kg
Warpage Up to 8mm including PCB thickness
Underside Clearance Programmable 3mm - 42mm
Operating Envelope
Temperature 10 - 35°C (50 - 95°F)
Humidity 30 - 70% Relative Humidity (non condensing)
Approx. Weight 650kg
Approx. Dimensions 1314mm X 1608mm X 1825mm (Machine)

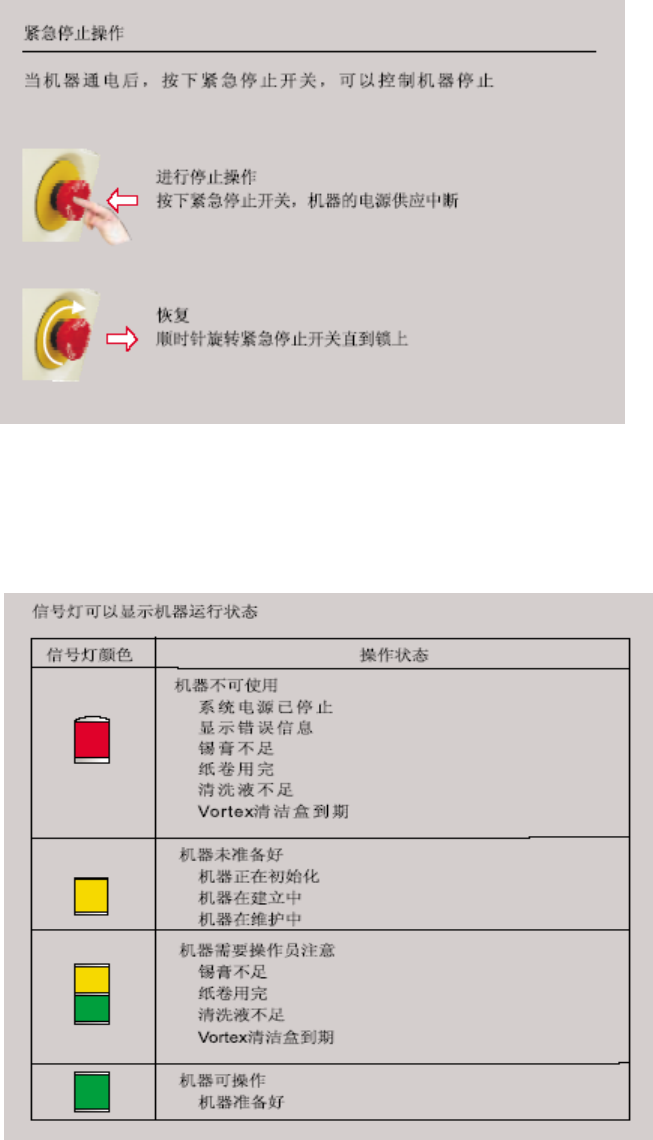

2. E-STOP Button & Signal Tower 紧急按纽及信号灯
