点 T ransport Height 送板高度 点 Contact Height 印刷板高度 点 Board Clamp 板会夹紧 D e k P r i n t e r T r a i n i n g 1 2 / 7 0 2 5 J u n e 2 0 0 6
Board Stop X = Board Length 板长 / 2
Board Stop Y = Board Width 板宽* 2/3

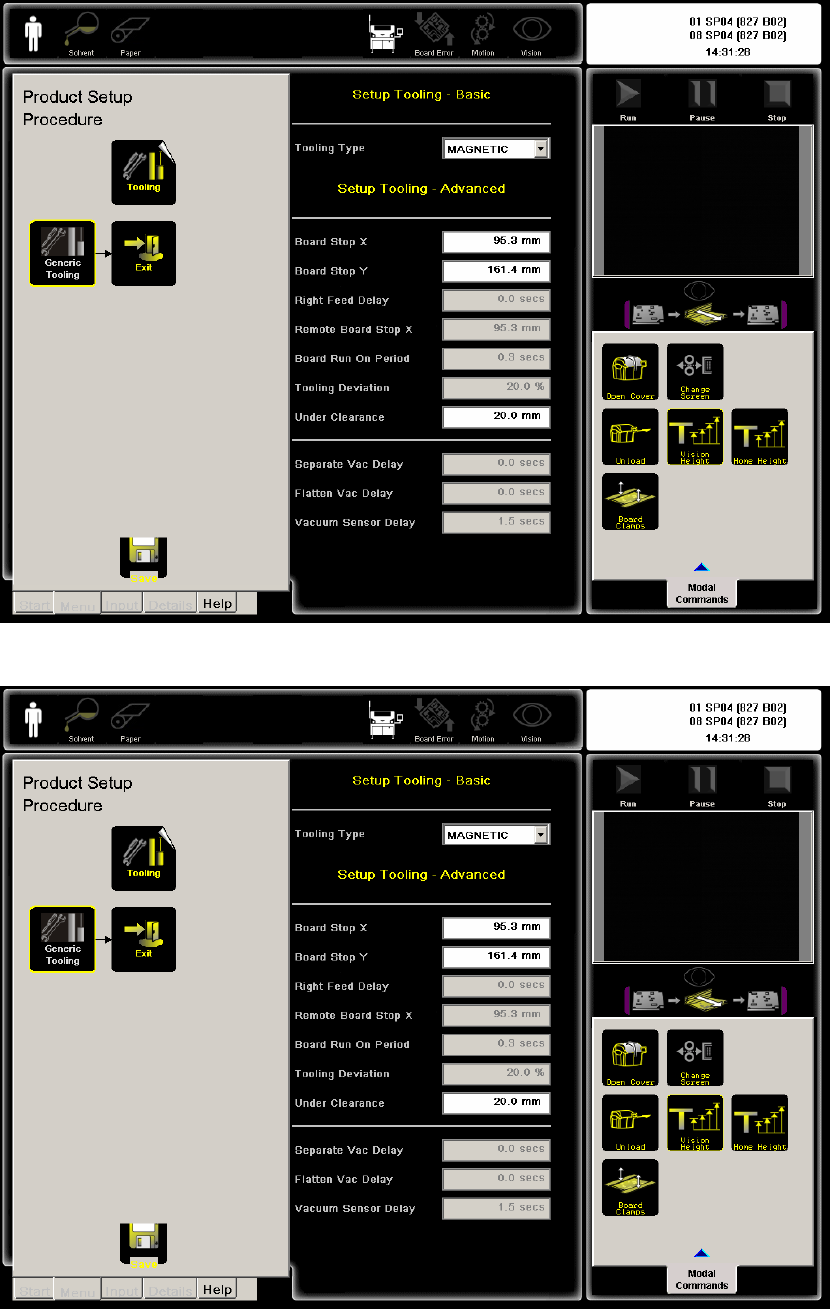

Setup Tooling
Under Clearance 板底的空间高度
Dek Printer Training 11/70 25 June 2006
点 Transport Height 送板高度
点 Contact Height 印刷板高度
点 Board Clamp 板会夹紧
Dek Printer Training 12/70 25 June 2006
点 VISION HEIGHT 位置会走到看 MARK 点的高度
Dek Printer Training 13/70 25 June 2006
