Dek Training - 第64页
Print Carriage Linear Bearing Gu ide 印刷头的二个走轴 D e k P r i n t e r T r a i n i n g 6 0 / 7 0 2 5 J u n e 2 0 0 6

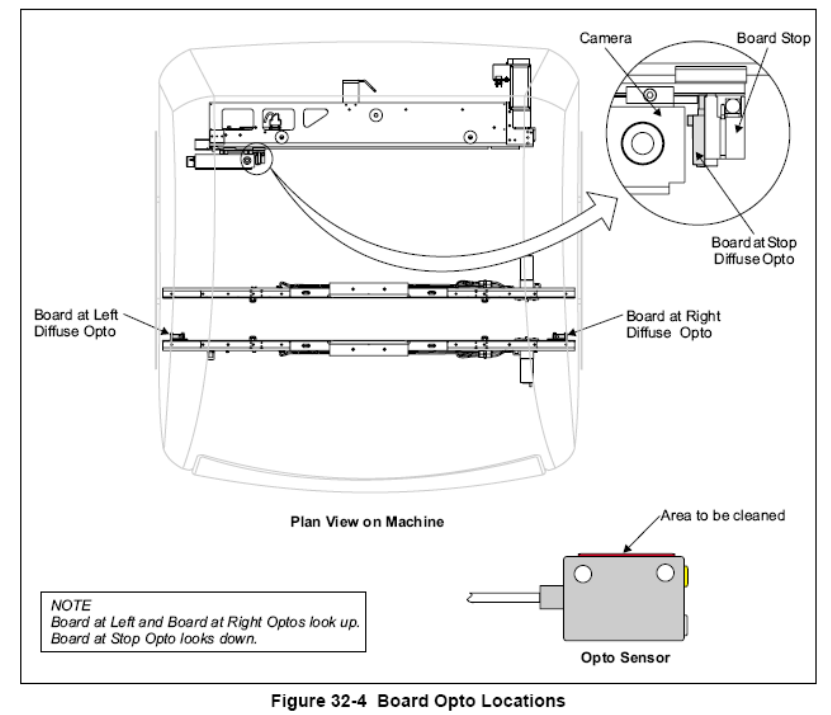

Board Opto-sensors(Board at Left, Board at Stop, Board at right)看 PCB 板的感
应器
Dek Printer Training 59/70 25 June 2006

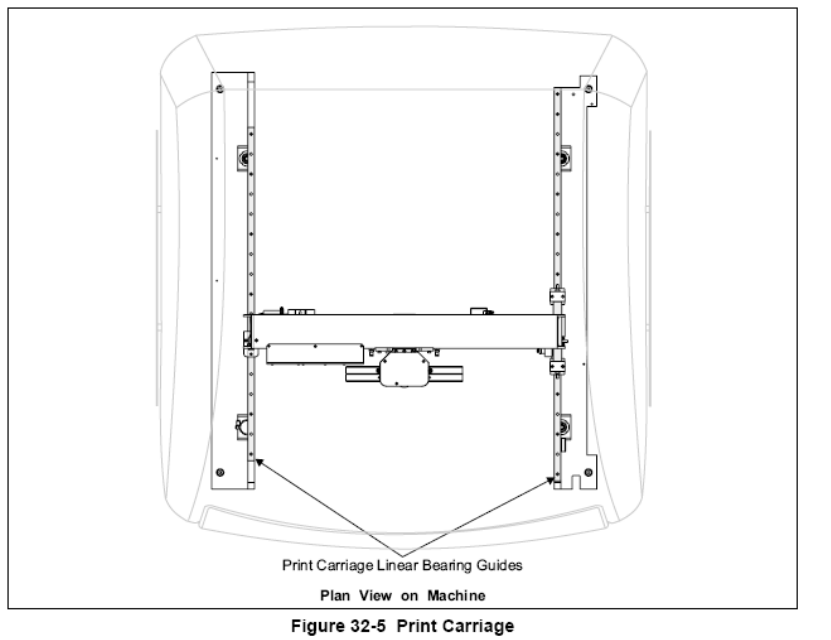

Print Carriage Linear Bearing Guide 印刷头的二个走轴
Dek Printer Training 60/70 25 June 2006

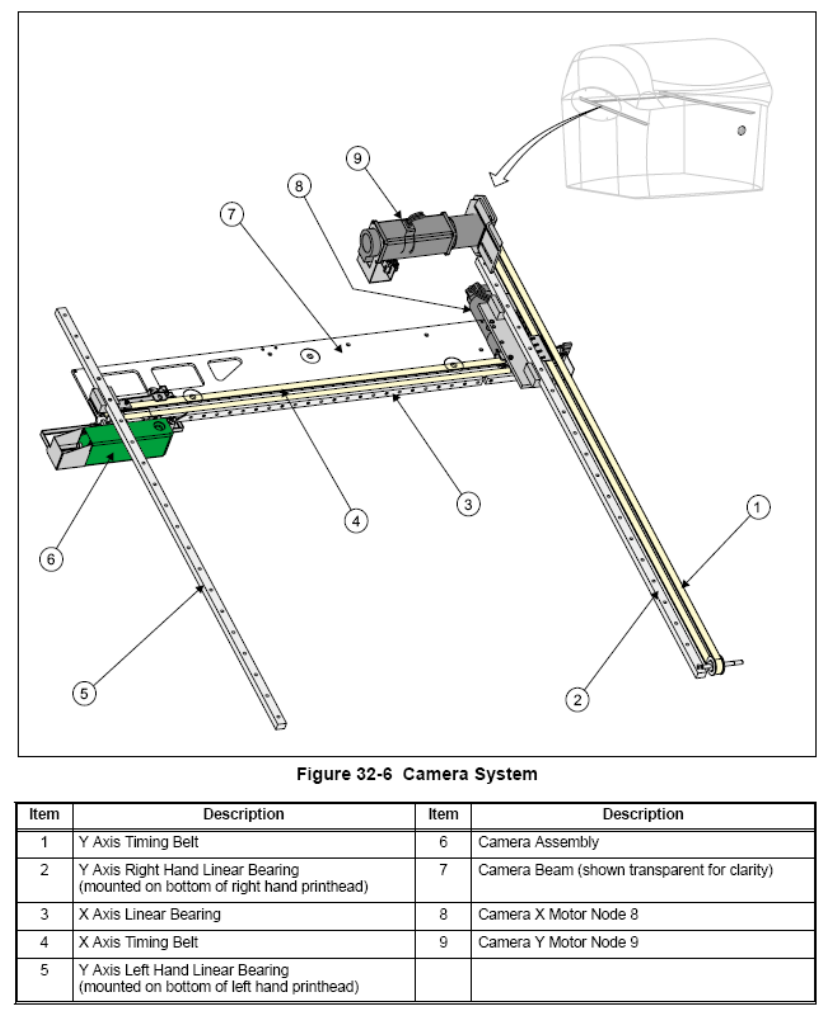

X & Y Timing Belt, Camera X Linear Guide(1)& Camera Y Linear guide(2)
X & Y 轴皮带, X 相机走轴, Y 相机走轴
Dek Printer Training 61/70 25 June 2006
