2 Assembly instructions MTC2 with 35 mm tray height SIPLACE MTC2
08/2007 Edition
12
2.5 Restrictions
– The maximum tray height inclusive component and all tolerances is restricted to 35 mm for
tower 1.
– The minimum tray height inclusive component is 2 mm for usage with standard nozzles for both
towers.
– The cycle-time extends according to the longer Z axis way.
– The performance calculation in SIPLACE Pro can differ from the real performance.
– The MTC2 has to be aligned very exactly to avoid HEAD CRASH!
– The current valid guidelines for the MTC 2 are still to be considered.
– The components must lie correctly in the tray, otherwise there is a risk of HEAD CRASH.
2
The bubble level has to be exactly in the middle, otherwise there is DANGER of HEAD CRASH!2
2
2
2
Bubble level
SIPLACE MTC2 2 Assembly instructions MTC2 with 35 mm tray height
08/2007 Edition
13
2.6 Safety instructions
WARNING
The safety instructions from the “Operational safety” chapter of the user manual and servicing in-
structions take precedence over these instructions. 2
The SIPLACE placement machines are supplied with main power voltage.
Consequently parts of these systems carry dangerous voltages! This voltage is present at cer-
tain modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
During the retrofit, always secure the machine to prevent access by other people and to prevent it
being switched on again. The procedure is described in the “Locking the machine…” section of
the user manual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
2
2.6.1 Definitions
2
Note 2
2
2
2
2 Assembly instructions MTC2 with 35 mm tray height SIPLACE MTC2
08/2007 Edition
14
2.7 Hardware installation
2.7.1 Assembly and disassembly of the MTC2
: Install the MTC 2 following the manual 00193634-xx.

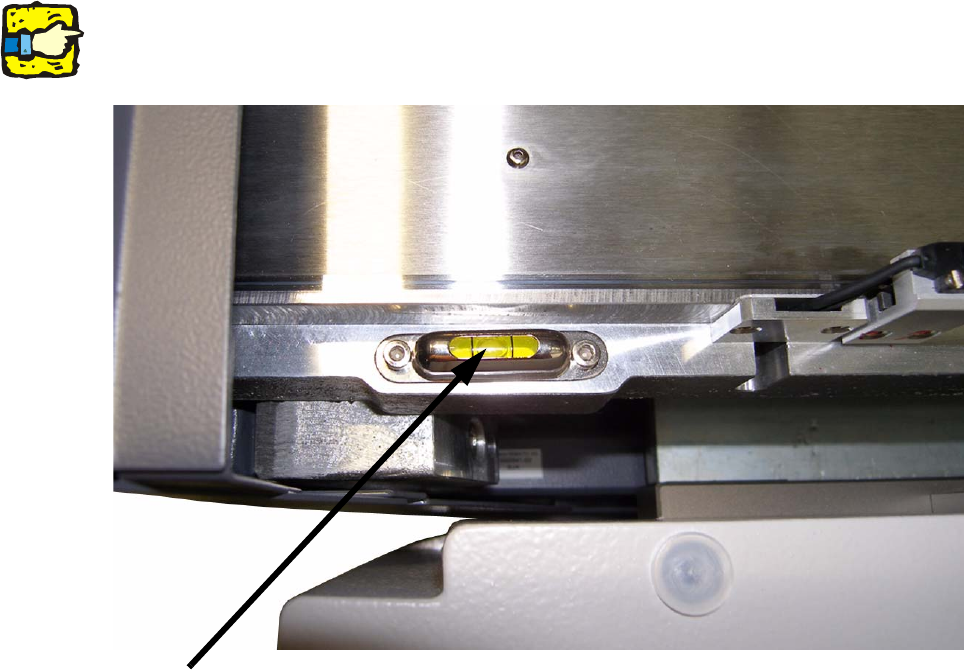

: Align the MTC 2 after the bubble level.
2
The MTC 2 has to be aligned very exactly otherwise there is danger of HEAD-CRASH! 2
2
2
2
2
2
2
2
2
2
Bubble level
