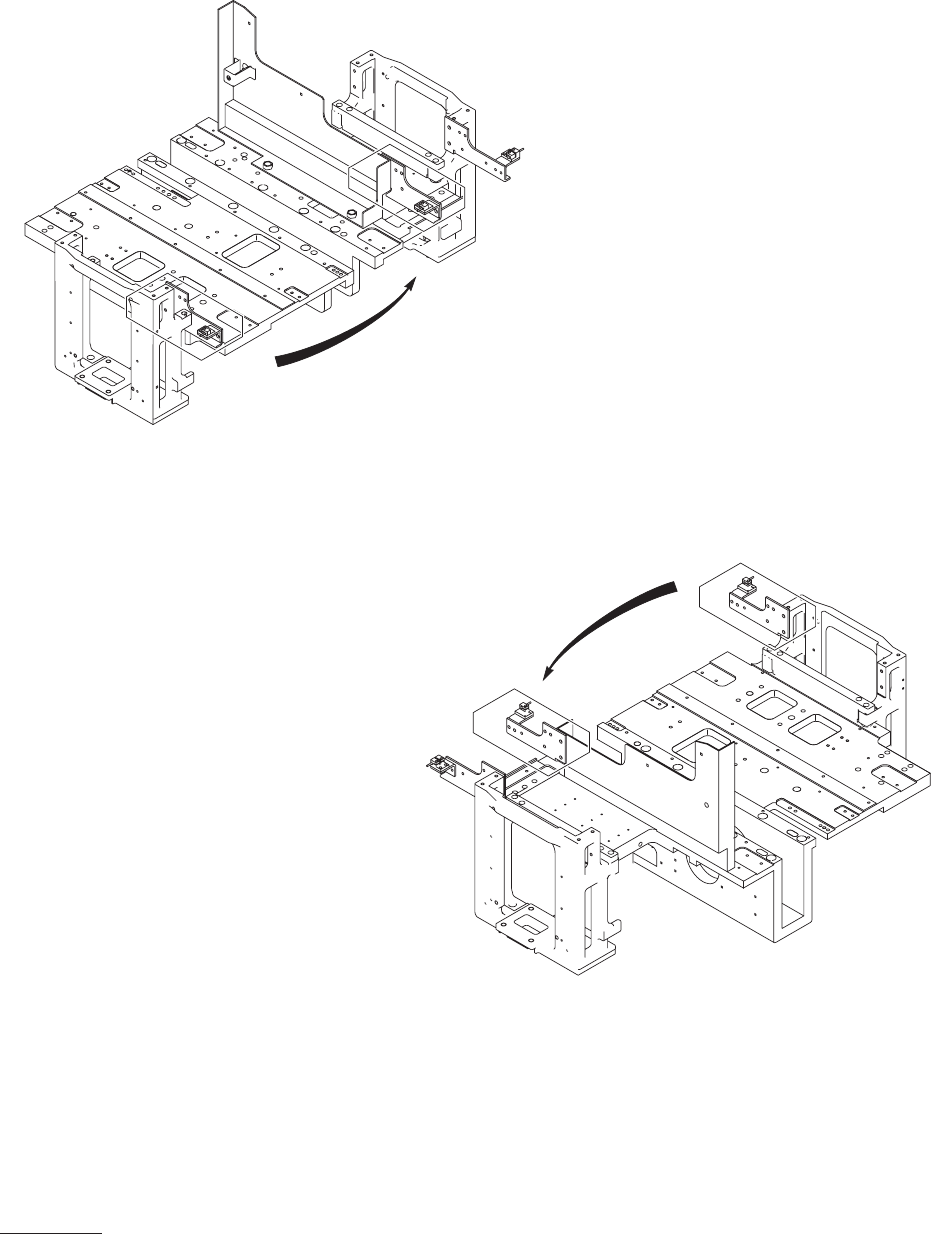

FG-S006-01 0609-001 16 TRANSFER TRANSFER For Left-Rear For Right-Front G-S014-04 G-S014-01 位置決め部 POSITIONING SECTION Fig. J-1 ベース部 Base Section
FG-S006-01
1012-003
15
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
B-5
406 6301384368 COVER 1
806TL-A110020-A106
211A9951
407 6301402307 COVER 1
806TL-A110020-A107
211AA138
408 6301389196 BRACKET 1
806TL-A110020-A108
211F9958
409 6301384078 BOX 1
806TL-A110020-A109
211B1077
410 6301389141 SUPPORT 1
806TL-A110020-A110
211K3096
411 6301402314 COVER 1
806TL-A110020-A111
211AA139
412 6301383989 PLATE 3
806TL-A110020-A112
211DA733
413 6301384108 PLATE 3
806TL-A110020-A113
211DA734
414 6301384573 COVER 1
806TL-A110020-A114
211A9953
415 6301380964 SUPPORT 1
806TL-A110020-A115
211K3078
416 6301389158 PLATE 1
806TL-A110020-A116
211DA798
417 6301402574 MECH PARTS(BOX) 1
806TL-A110020-A217
226J2205
451 6300007510 BOLT,HEX-SCT 4 M3X8 221A0006
452 6300007619 BOL
T,HEX-SCT 20 M4X8 221A0016
453 6300858310 BOL
T,HEX-SCT 2 M6X14 221A0240
454 6300007985 BOL
T,HEX-SCT 2 M8X10 221A0053
456 411
1412806 WASHER SPR 3 4 SW3 221H0281
457 411
1412905 WASHER SPR 4 20 SW4 221H0284
458 411
1413001 WASHER SPR 6 2 SW6 221H0289
459 411
1413100 WASHER SPR 8 2 SW8 221H0291
461 411
1413902 WASHER V 3X7X0.5 4 FW3 221H0312
462 411
1414008 WASHER V 4X9X0.8 20 FW4 221H0315
463 411
1414305 WASHER V 6X12.5X1.6 2 FW6 221H0320
464 411
1414503 WASHER V 8X17X1.6 2 FW8 221H0323
FG-S006-01
0609-001
16
TRANSFER
TRANSFER
For Left-Rear
For Right-Front
G-S014-04
G-S014-01
位置決め部
POSITIONING SECTION
Fig. J-1
ベース部
Base Section
