Gardner Denver Elmo Technology GmbH 4 / 18 610.00139.40.000 System design 2 System design 2 14 12 23 20 22 24 13 15 21 18 19 17 16 610.00139.99.B02 Fig. 2: System design 12 E-Module 19 Mains cable 13 Po wer supply 20 Vac…
Gardner Denver Elmo Technology GmbH 3 / 18 610.00139.40.000
System design 1
System design 1
1
2
3
4
5
6
7
8
9
10
11
610.00139.99.B01
Fig. 1: System design
1 Status indicator lights “Pump in operation”. 6 Rating plate
2 Status indicator lights “Ready for operation”. 7 Cooling air vents
3 Status indicator lights “Converter failure” 8 Housing
4 Pressure gauge 9 Extracted air vent
5 Inlet flange 10 Unit
11 Lockable wheels
Gardner Denver Elmo Technology GmbH 4 / 18 610.00139.40.000
System design 2
System design 2
14
12
23 202224
13
15
21
18
19
17
16
610.00139.99.B02

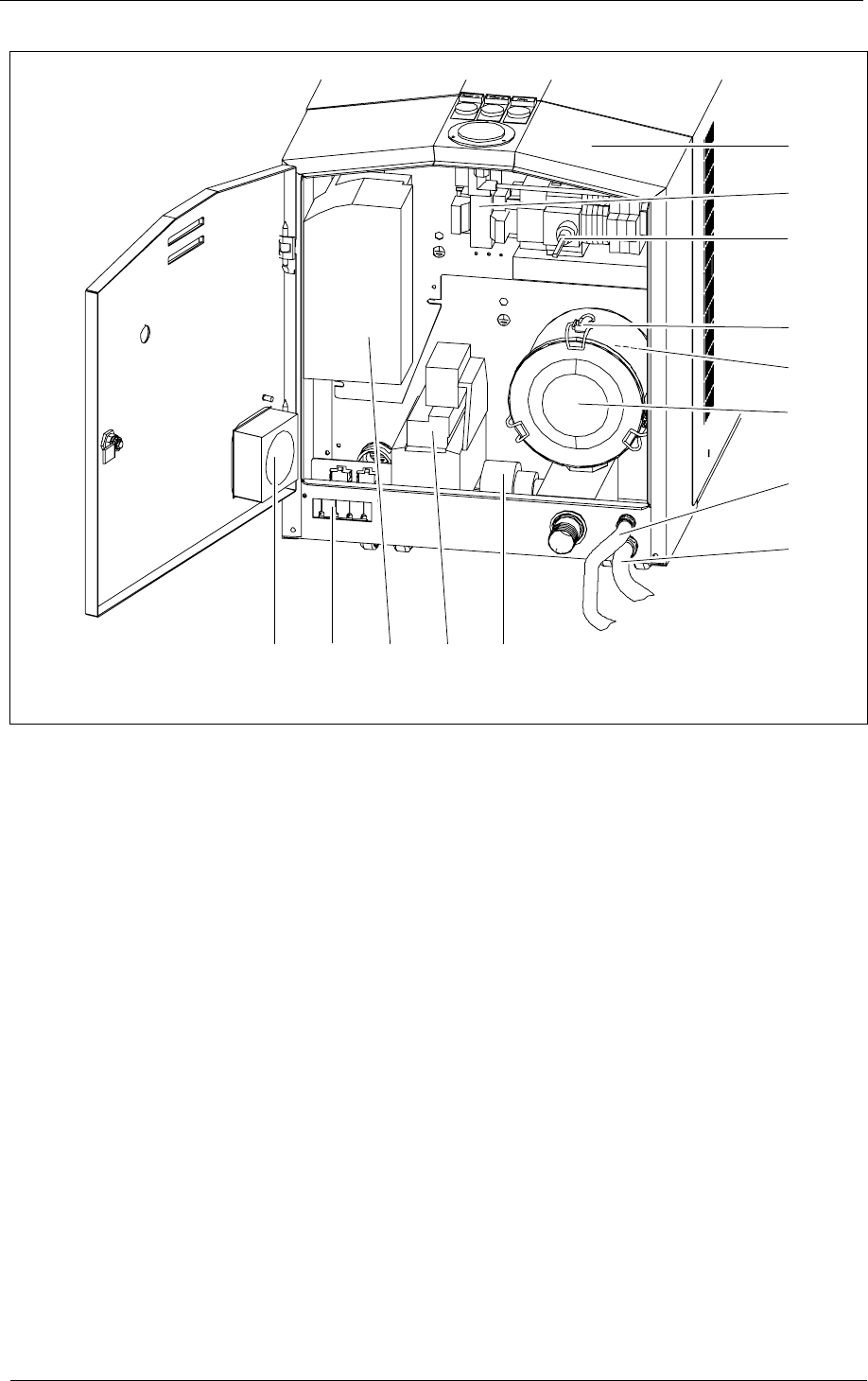

Fig. 2: System design
12 E-Module 19 Mains cable
13 Power supply 20 Vacuum relief valve
14 Main switch 21 Mains choke
15 In-line filter catch 22 Frequency inverter
16 Filter refill 23 Cable feedthrough for control line
17 Inline filter 24 Fan E-Module
18 Grounding cable
Gardner Denver Elmo Technology GmbH 5 / 18 610.00139.40.000
Safety
1 Safety
1.1 Definitions
The following key words and symbols are used to
impart important information and notes in these
operating instructions:
1.1.1 Warning symbol
The warning symbol
is depicted in the
safety instructions in the related title frame on the
left next to the key word (DANGER, WARNING,
CAUTION).
Safety instructions and warning symbols indicate
danger of personal injury.
Follow these safety instructions to protect your-
self against injury or death!
Safety instructions without warning symbols
indicate danger of material damage.
1.1.2 Key word
DANGER
WARNING
CAUTION
Caution
NOTE
The key words are in the title fra-
me in the safety instructions.
They follow a defined hierarchy and
they indicate (in connection with
the warning symbol, see chap-
ter
1.1.1) the importance of the
danger or the nature of the in-
struction.
Refer to the following clarifications:
DANGER
Danger of personal injury.
Indication of an immediately threatened danger
which could lead to death or serious injury if
the appropriate precautions are not observed.
WARNING
Danger of personal injury.
Indication of an immediately threatened danger
which could lead to death or serious injury if
the appropriate precautions are not observed.
CAUTION
Danger of personal injury.
Indication of a possible danger which could lead
to medium or light injury if the appropriate
precautions are not observed.
CAUTION
Danger of material damage.
Indication of a possible danger which could lead
to material damage if the appropriate precau-
tions are not observed.
CAUTION
Indication of a possible disadvantage, i.e. un-
desired circumstances may arise if the appro-
priate precautions are not observed.
NOTE
Indicates a possible advantage, if the appropri-
ate precautions are observed; tip.
1.2 General safety instructions
WARNING
Improper handling of the system can result
in serious or fatal injuries!
This instruction manual
• must be read and understood before com-
mencing any work on or with the system, and
• must be complied with and
• must be available at the system location.
WARNING
Improper handling of the system can result
in serious or fatal injuries!
Operate the system
• for the purposes given under "
Correct Use Of
The Equipment
", page 7!
• using the media listed under "
Correct Use Of
The Equipment
", page 7!
• at the values given under "
Technical Data",
page
8!
