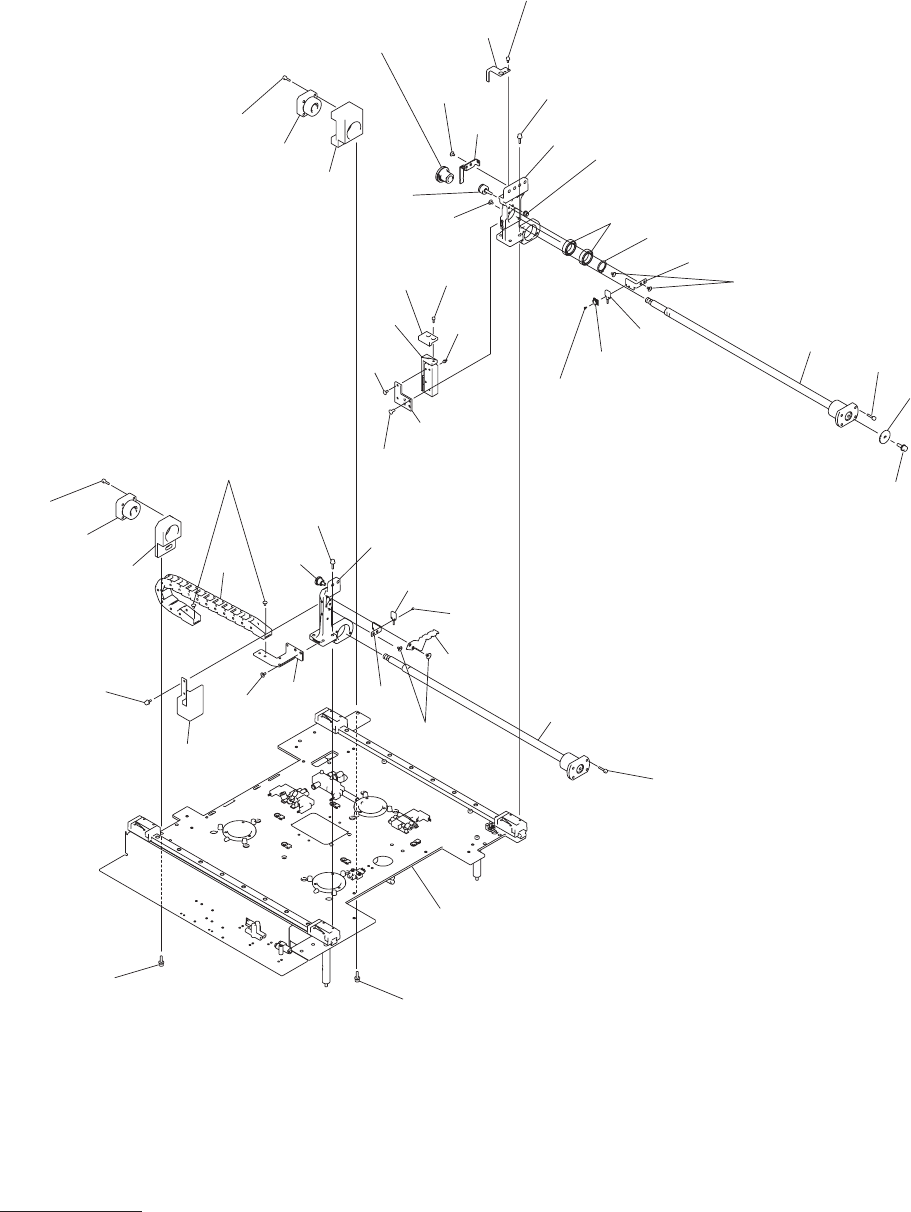

MODEL SL-G350
0712-002
搬送部全体
OVERALL TRANSFER SECTION
Fig. N-2
バックアップ駆動部
Back-up Driving Section
N-2 illust-1
MODEL SL-G350
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
104 6301623238 BRACKET 1 870N--100-004 211FD159
106 6301644103 COLLAR 2 870N--100-006 216A1586
107 6301644165 COLLAR 2 870N--100-007 216A1588
108 6301517834 PLATE 1 870N--100-008 211DC339
116 6301660646 BALL SCREW 3 870N--100-016 223B0447
119 6301532097 PULLEY,TIMING 1 870N--100-019 223Q0705
120 6301498089 PULLEY,TIMING 3 870N--100-020 223Q0681
121 6301520261 BELT,TIMING 1 870N--100-021 223L0346
123 6301002729 MOTOR,AC-SERVO 1 M53 870N--100-023 4M150130
125 6300969009 BEARING,RADIAL 4 870N--100-025 222D0343
126 6301621685 COLLAR 2 870N--100-041 216A1552
130 6301526522 COLLAR 1 870N--100-610 216A1460
131 6301526539 COLLAR 1 870N--100-611 216A1461
132 6301526546 COLLAR 1 870N--100-612 216A1462
134 6301533278 BRACKET 1 870N--100-614 211FB818
153 4111412806 WASHER SPR 3 2 870N--100-803 221H0281
154 4111413902 WASHER V 3X7X0.5 2 870N--100-804 221H0312
158 4111412905 WASHER SPR 4 23 870N--100-807 221H0284
159 4111414008 WASHER V 4X9X0.8 23 870N--100-808 221H0315
160 4111410901 NUT HEX 8 2 870N--100-919 221F0089
163 6300008944 SET SCREW 2 M5X6 SET 870N--100-912 221C0007
164 4111416705 WASHER SPR 5 4 870N--100-813 221H0318
166 6300010220 WASHER 4 BW5 870N--100-815 221H0005
169 4111413100 WASHER SPR 8 3 870N--100-818 221H0291
170 4111414503 WASHER V 8X17X1.6 4 870N--100-819 221H0323
171 6300010244 WASHER 1 BW8 870N--100-820 221H0007
172 6300007503 BOLT,HEX-SCT 2 M3X6 870N--100-822 221A0005
175 6300007619 BOLT,HEX-SCT 12 M4X8 870N--100-825 221A0016
176 6300007626 BOLT,HEX-SCT 11 M4X10 870N--100-826 221A0017
178 6300007640 BOLT,HEX-SCT 9 M4X14 870N--100-828 221A0019
179 6300007657 BOLT,HEX-SCT 3 M4X16 870N--100-829 221A0020
181 6300007671 BOLT,HEX-SCT 12 M4X25 870N--100-831 221A0022
184 6300007756 BOLT,HEX-SCT 4 M5X12 870N--100-834 221A0030
189 6300008012 BOLT,HEX-SCT 1 M8X20 870N--100-839 221A0056
190 6300008081 BOLT,HEX-SCT 2 M8X60 870N--100-840 221A0063
196 4110511708 SCR TRS 4X6 5 870N--100-906 221E0532
N-2
N-2 list-1
MODEL SL-G350
0712-002
搬送部全体
OVERALL TRANSFER SECTION
Fig. N-3
シュート１可動部
Chute 1 Moving Section
N-3 illust-1
