MODEL SL-G350
0712-002
搬送部全体
OVERALL TRANSFER SECTION

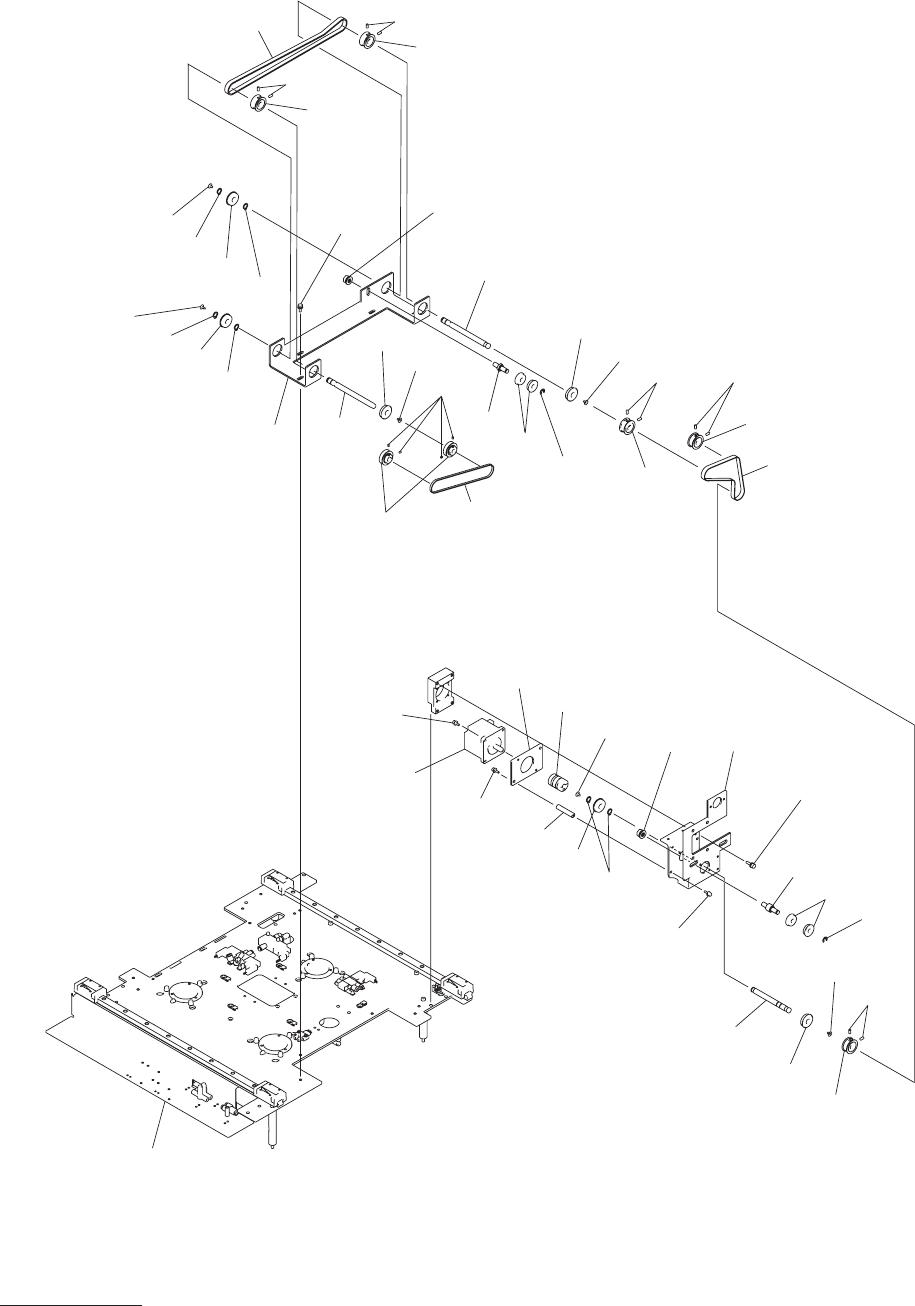

Fig. N-6
シュート２駆動部
Chute 2 Driving Section
N-6 illust-1
MODEL SL-G350
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-6
502 6301571287 BRACKET 1 870N--100-002 211FC459
505 6300969009 BEARING,RADIAL 4 866N--100-025 222D0343
507 6301565187 SHAFT 1 870N--100-217 213A1474
509 6301499574 MOTOR,STEPPING 1 M56 870N--100-419 4M140163
512 6301567310 SHAFT 1 870N--100-312 213A1478
515 6301571324 SHAFT 1 870N--100-315 213A1490
517 6301566047 PLATE 1 870N--100-317 211DC850
518 6301567563 BRACKET 1 870N--100-318 211FC373
522 6301517865 BELT,TIMING 1 870N--100-322 223L0340
523 6301587295 BELT,TIMING 1 870N--100-323 223L0375
527 6301533162 BELT,TIMING 1 870N--100-327 223L0354
528 6301544205 COUPLING 1 870N--100-328 223C0244
529 6300011425 BEARING,RADIAL 6 870N--100-329 222D0021
530 4110007102 RING C 10 6 870N--100-330 221K0076
534 6301546438 PULLEY,TIMING 2 870N--100-334 223Q0718
538 4110010409 RING E 6 2 870N--100-238 221K0099
539 6301546872 SHAFT 1 870N--100-239 213A1447
546 6301545905 SHAFT 2 870N--100-711 213A1445
547 6301546353 PULLEY,TIMING 5 870N--100-712 223Q0717
548 6301567518 SHAFT 1 870N--100-718 213A1483
557 4111412905 WASHER SPR 4 6 870N--100-807 221H0284
558 4111414008 WASHER V 4X9X0.8 6 870N--100-808 221H0315
561 4110082109 WASHER SPR 5 4 870N--100-811 221H0286
562 4110881702 WASHER V 5X10X1 4 870N--100-812 221H0317
563 4111416705 WASHER SPR 5 4 870N--100-813 221H0287
564 4111414107 WASHER V 5X10X1 4 870N--100-814 221H0318
568 4111413100 WASHER SPR 8 2 870N--100-818 221H0291
569 4111414503 WASHER V 8X17X1.6 2 870N--100-819 221H0323
577 6300007633 BOLT,HEX-SCT 6 M4X12 870N--100-827 221A0018
585 4111404900 BOLT HEX 5X12 4 870N--100-835 221B014
586 6300007763 BOLT,HEX-SCT 4 M5X16 870N--100-836 221A0031
587 4110511708 SCR TRS 4X6 12 870N--100-906 221E0532
589 4111410901 NUT HEX 8 2 870N--100-919 221F0089
591 6300082296 SET SCREW 4 M4X4 SET 870N--100-911 221C0027
592 6300008944 SET SCREW 10 M5X6 SET 870N--100-912 221C0007
N-6 list-1
MODEL SL-G350
0712-002
搬送部全体
OVERALL TRANSFER SECTION

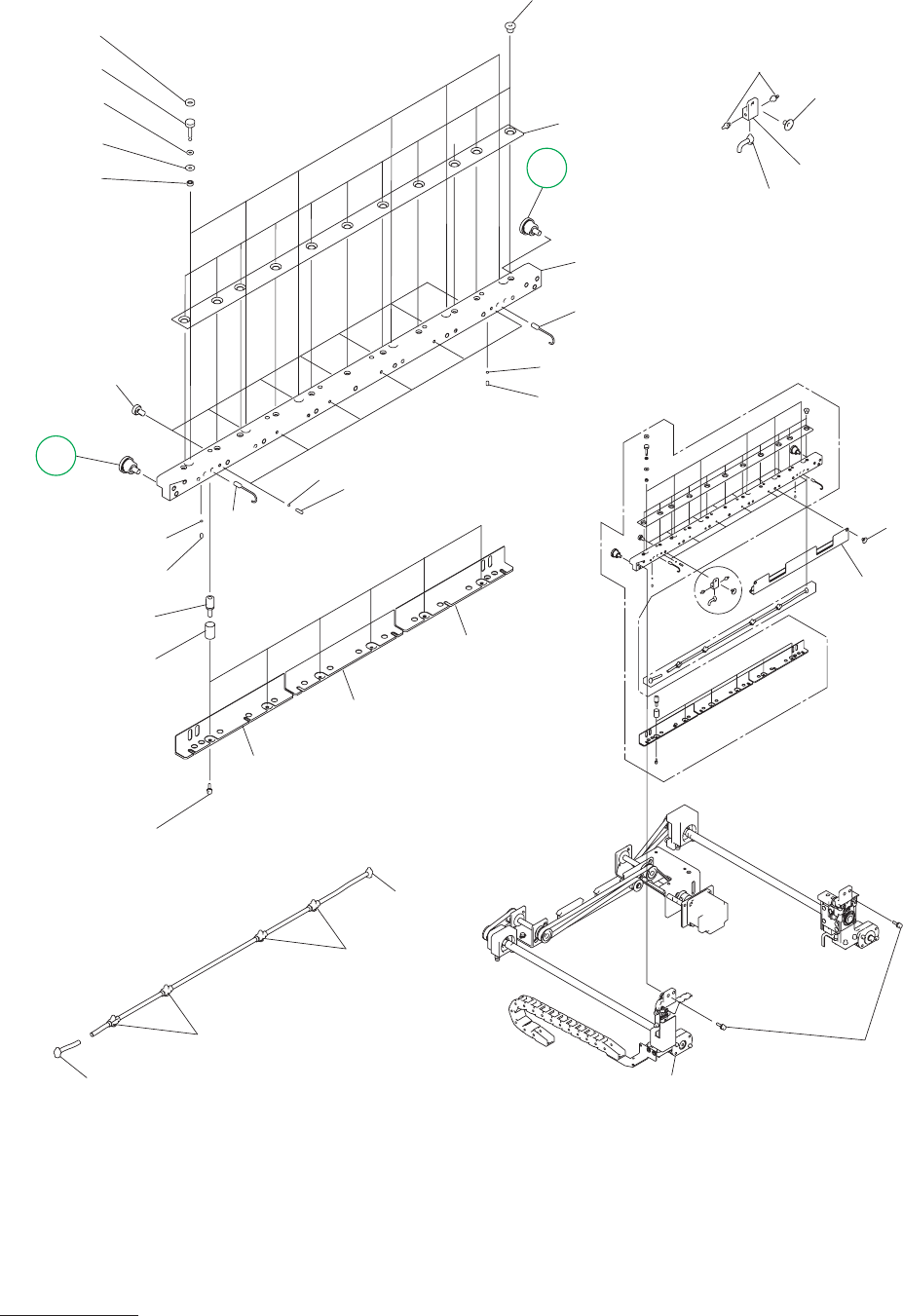

Fig. N-7
シュート１
Chute 1
N-7 illust-1
