MODEL SL-G350 0712-002 搬送部全体 OVERALL TRANSFER SECTION Fig. N-8 シュート２ Chute 2 See Fig.N-5 B 786 746 . 763 . 764 786 . 763 . 764 A C 725 721 726 727 709 71 1 713 733 739 723 719 705 701 733 703 706 718 718 716 728 715 707 …
MODEL SL-G350
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
602 6301568652 PLATE 1 870N--100-102 211DC888
604 6301568041 BLOCK 1 870N--100-104 211G5350
607 6301483788 SHAFT 6 870N--100-107 213A1378
609 6301233253 SPRING,COMP 6 870N--100-109 222M1297
611 6301544779 GUIDE,SLIDE 6 870N--100-111 222C0126
612 6301237022 SENSOR,PELEC 1 B4201,B4202
870N--100-112 23G00241
613 6301311616 PIN,GUIDE 7 870N--100-113 216F0902
614 6300363470 SEAL 6 870N--100-114 226A0074
615 6300033137 SEAL 6 870N--100-115 226A0001
616 6300941333 SEAL 6 870N--100-116 226A0144
618 6301572529 BOLT,HEX-SCT 11 870N--100-118 221A0431
619 6300484656 PIPE FITTINGS 10 870N--100-119 225F0261
620 6300769029 PIPE FITTINGS 4 870N--100-120 225F0330
621 6300465556 PIPE FITTINGS 3 870N--100-121 225F0253
623 6301550411 BLOCK 1 870N--100-713 211G5202
625 6301569826 BRACKET 1 870N--100-125 211FC417
626 6301514123 BRACKET 1 870N--100-126 211FB476
627 6301569833 BRACKET 1 870N--100-127 211FC418
628 6301516677 BUSH,LOCATE 6 870N--100-128 216Q0044
633 6301272733 PULLEY,TIMING 2 870N--100-223 223Q0564
636 6301568782 BRACKET 1 870N--100-716 211FC398
639 6301614175 SPACER 8 870N--100-439 211E1117
651 4111416606 WASHER SPR 2.5 6 870N--100-801 221H0279
652 4111413803 WASHER V 2.5X6.5X0.5 6 870N--100-802 221H0310
663 4111416705 WASHER SPR 5 4 870N--100-813 221H0287
664 4111414107 WASHER V 5X10X1 4 870N--100-814 221H0318
671 6300123791 BOLT,HEX-SCT 6 M2.5X5 870N--100-821 221A0150
686 6300007763 BOLT,HEX-SCT 4 M5X16 870N--100-836 221A0031
688 4111408007 SCR TRS 5X6 3 870N--100-908 221E0536
689 6300008883 SET SCREW 2 M3X4 SET 870N--100-909 221C0001
690 6300008906 SET SCREW 6 M3X8 SET 870N--100-910 221C0003
N-7
N-7 list-1
MODEL SL-G350
0712-002
搬送部全体

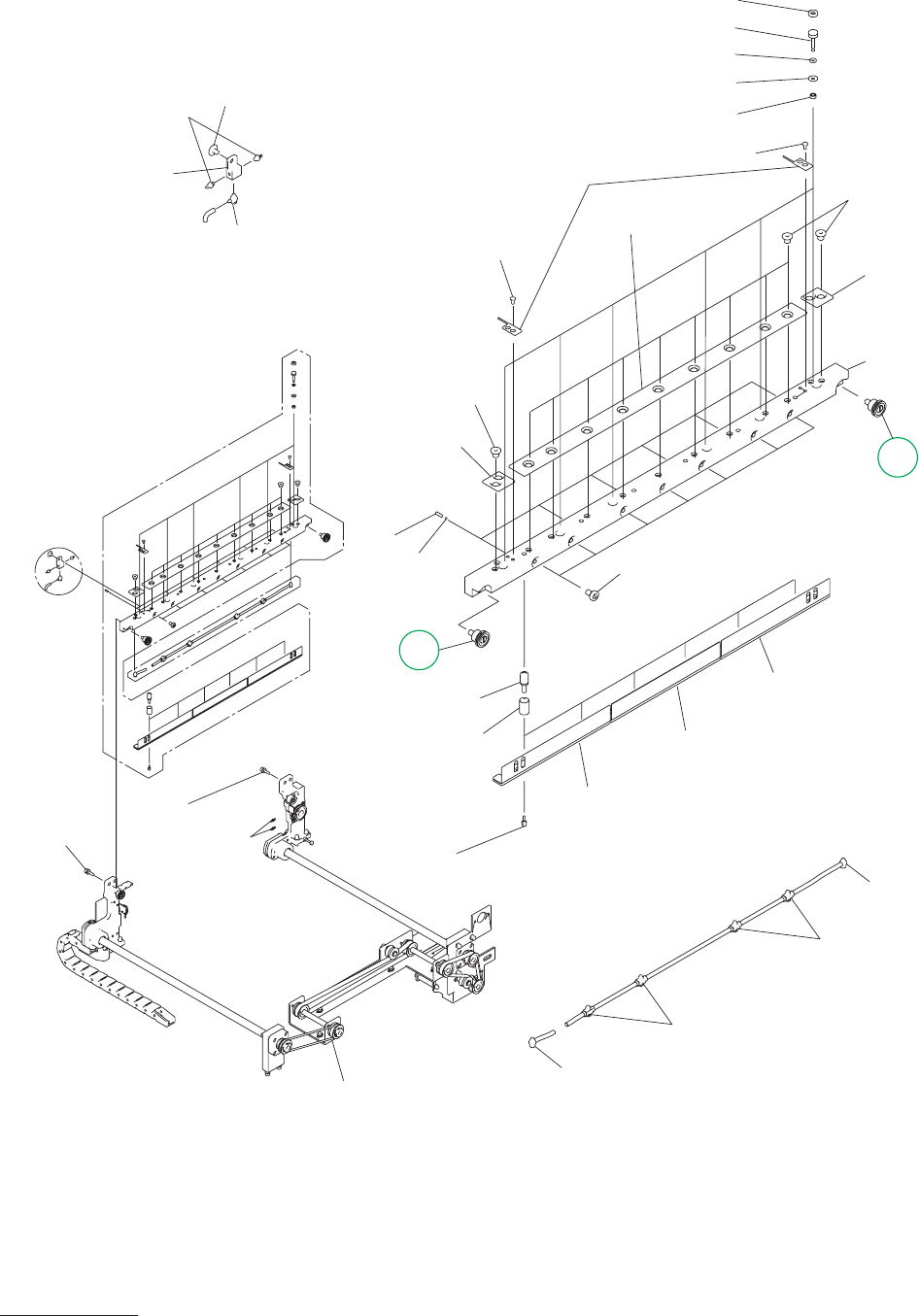

OVERALL TRANSFER SECTION
Fig. N-8
シュート２
Chute 2
See Fig.N-5
B
786
746
.
763
.
764
786
.
763
.
764
A
C
725
721
726
727
709
711
713
733
739
723
719
705
701
733
703
706
718
718
716
728
715
707
714
721
719
.
720
719
.
720
721
DETAIL “C”
771
.
751
.
752
788
793
791
793
DETAIL “A”
DETAIL “B”
注)
Key No.733(○印)は重要保守部品となっております。交換方法については
高度な技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No. 733(with a circle) is an important maintenance component.
Because high-grade technique is required for the replacement of this component,
consult our service personnel.
712
N-8 illust-1
MODEL SL-G350
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
701 6301568645 PLATE 1 870N--100-101 211DC887
703 6301568034 BLOCK 1 870N--100-103 211G5349
705 6301568669 PLATE 1 870N--100-105 211DC889
706 6301568676 PLATE 1 870N--100-106 211DC890
707 6301483788 SHAFT 6 870N--100-107 213A1378
709 6301233253 SPRING,COMP 6 870N--100-109 222M1297
711 6301544779 GUIDE,SLIDE 6 870N--100-111 222C0126
712 6301237022 SENSOR,PELEC 1 B4201,B4202
870N--100-112 23G00241
713 6301311616 PIN,GUIDE 7 870N--100-113 216F0902
714 6300363470 SEAL 6 870N--100-114 226A0074
715 6300033137 SEAL 6 870N--100-115 226A0001
716 6300941333 SEAL 6 870N--100-116 226A0144
718 6301572529 BOLT,HEX-SCT 13 870N--100-118 221A0431
719 6300484656 PIPE FITTINGS 10 870N--100-119 225F0261
720 6300769029 PIPE FITTINGS 4 870N--100-120 225F0330
721 6300465556 PIPE FITTINGS 3 870N--100-121 225F0253
723 6301550411 BLOCK 1 870N--100-713 211G5202
725 6301569826 BRACKET 1 870N--100-125 211FC417
726 6301514123 BRACKET 1 870N--100-126 211FB476
727 6301569833 BRACKET 1 870N--100-127 211FC418
728 6301516677 BUSH,LOCATE 6 870N--100-128 216Q0044
733 6301272733 PULLEY,TIMING 2 870N--100-223 223Q0564
739 6301614175 SPACER 8 870N--100-439 211E1117
746 6301540382 AIR LINE EQPT 2 870N--100-036 225B0565
751 4111416606 WASHER SPR 2.5 6 870N--100-801 221H0279
752 4111413803 WASHER V 2.5X6.5X0.5 6 870N--100-802 221H0310
763 4111416705 WASHER SPR 5 4 870N--100-813 221H0287
764 4111414107 WASHER V 5X10X1 4 870N--100-814 221H0318
771 6300123791 BOLT,HEX-SCT 6 M2.5X5 870N--100-821 221A0150
786 6300007763 BOLT,HEX-SCT 4 M5X16 870N--100-836 221A0031
788 4111408007 SCR TRS 5X6 1 870N--100-908 221E0536
791 6300008906 SET SCREW 6 M3X8 SET 870N--100-910 221C0003
793 4110022600 SCR FLT 3X6 4 870N--100-913 221D0216
N-8
N-8 list-1
