MODEL SL-G350 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 805 6300969009 BEARING,RADIAL 2 866N--100-025 222D0343 807 6301287034 GUIDE,SLIDE 1 870N--100-237 222C0109 808 63015651 18 PLA TE 1 870N--1…
MODEL SL-G350
0712-002

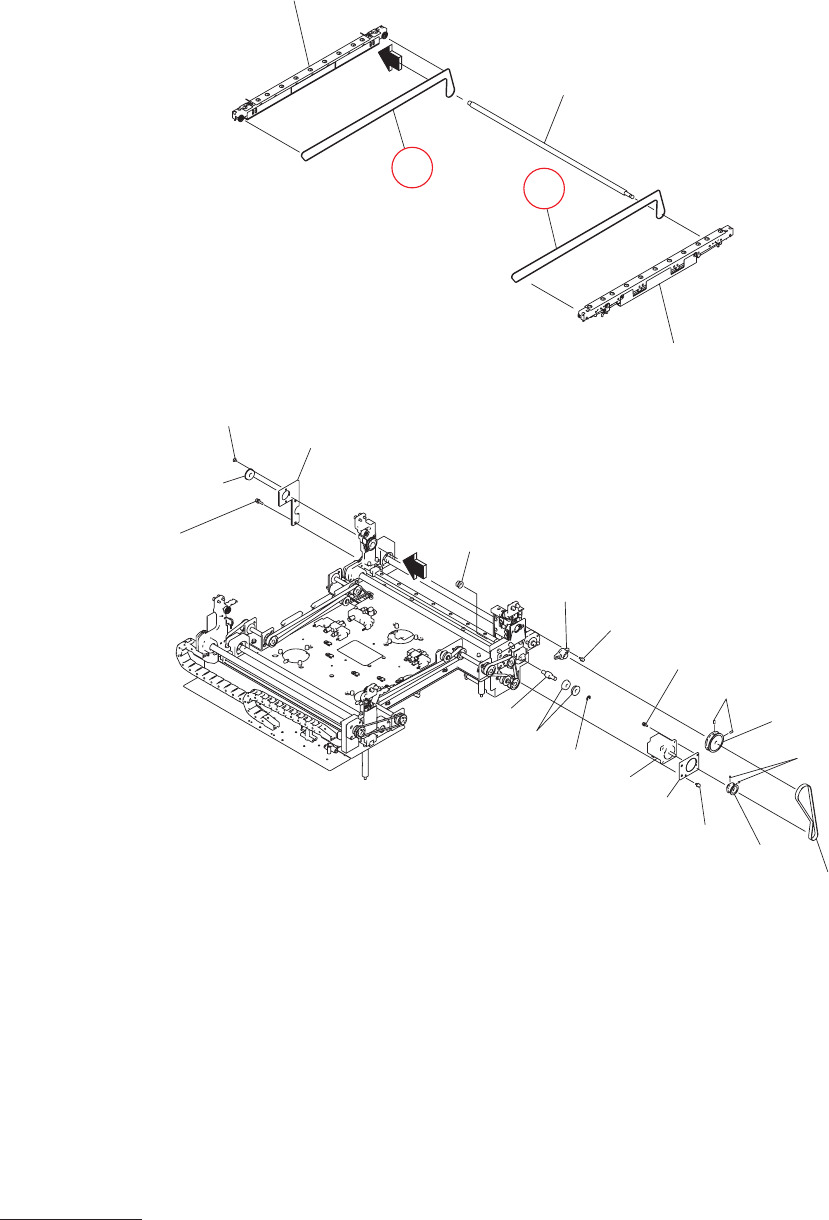

搬送部全体
OVERALL TRANSFER SECTION
Fig. N-9
基盤搬送部
PCB T
ransfer Section
808
828
816
827
831
830
829
826
807
825
See Fig.N-7
See Fig.N-8
825
A
A
838
805
817
875
.
857
.
858
876
.
857
.
853
876
.
857
.
858
897
.
857
.
858
866
886
.
863
.
864
892
891
Key No.825(
Notice) The Key No. 825(with a circle) is an important maintenance component.
Because high-grade technique is required for the r
eplacement of this component,
consult our service personnel.
N-9 illust-1
MODEL SL-G350
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
805 6300969009 BEARING,RADIAL 2 866N--100-025 222D0343
807 6301287034 GUIDE,SLIDE 1 870N--100-237 222C0109
808 6301565118 PLATE 1 870N--100-208 211DC842
816 6301571317 PLATE 1 870N--100-616 211DC910
817 6301571331 SHAFT 1 870N--100-617 213A1491
825 6301236780 BELT,TIMING 2 870N--100-225 223L0261
826 6301571577 BELT,TIMING 1 870N--100-226 223L0374
827 6300882988 BEARING,UNIT 1 870N--100-227 222F0076
828 6300011425 BEARING,RADIAL 1 870N--100-228 222D0021
829 6301498010 PULLEY,TIMING 1 870N--100-229 223Q0679
830 6301236506 PULLEY,TIMING 1 870N--100-230 223Q0546
831 6301499581 MOTOR,STEPPING 1 M42 870N--100-231 4M140164
838 4110010409 RING E 6 1 870N--100-238 221K0099
853 4111415906 WASHER F 4X8X0.8 2 870N--100-843 221H0340
857 4111412905 WASHER SPR 4 7 870N--100-807 221H0284
858 4111414008 WASHER V 4X9X0.8 5 870N--100-808 221H0315
863 4111416705 WASHER SPR 5 2 870N--100-813 221H0287
864 4111414107 WASHER V 5X10X1 2 870N--100-814 221H0318
866 4110511708 SCR TRS 4X6 2 870N--100-906 221E0532
875 6300007619 BOLT,HEX-SCT 4 M4X8 870N--100-825 221A0016
876 6300007626 BOLT,HEX-SCT 4 M4X10 870N--100-826 221A0017
886 6300007763 BOLT,HEX-SCT 2 M5X16 870N--100-836 221A0031
891 6300082296 SET SCREW 2 M4X4 SET 870N--100-911 221C0027
892 6300008944 SET SCREW 2 M5X6 SET 870N--100-912 221C0007
897 4110548506 NUT HEX 4 1 870N--100-917 221F0081
N-9
N-9 list-1
