MODEL SL-G350 1004-004 305 6301314860 ROD 2 870NX-100-205 216C0772 309 6301526638 BRACKET 2 870NX-100-209 21 1FB702 320 6301505206 PULLEY ,TIMING 4 870NX-100-220 223Q0682 321 41 10007805 RING C 20 4 870NX-100-221 221K008…
MODEL SL-G350
0712-002
320
320
327
330
333
322
309
322
331
341
329
320
320
309
333
322
327
322
331
330
341
329
321
321
321
321
335
335
335
335
305
328
328
305
328
328
336
337
337
336
369
.
355
.
386
382
.
355
.
357
382
.
355
.
357
371
379
379
379
379
379
379
380
380
381
381
.
358
.
359
371
.
358
.
359
371
.
358
.
359
371
.
358
.
359
372
.
358
.
359
372
.
358
.
359
372
.
358
.
359
372
.
358
.
359
372
.
358
.
359
372
.
358
.
359
369
.
355
.
386
370
.
386
370
.
386
注)
Key No.328(○印)は重要保守部品となっております。交換方法については高度な
技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No. 328 (with a circle) is an important maintenance component.
Because high-grade technique is required for the replacement of this component,
consult our service personnel.

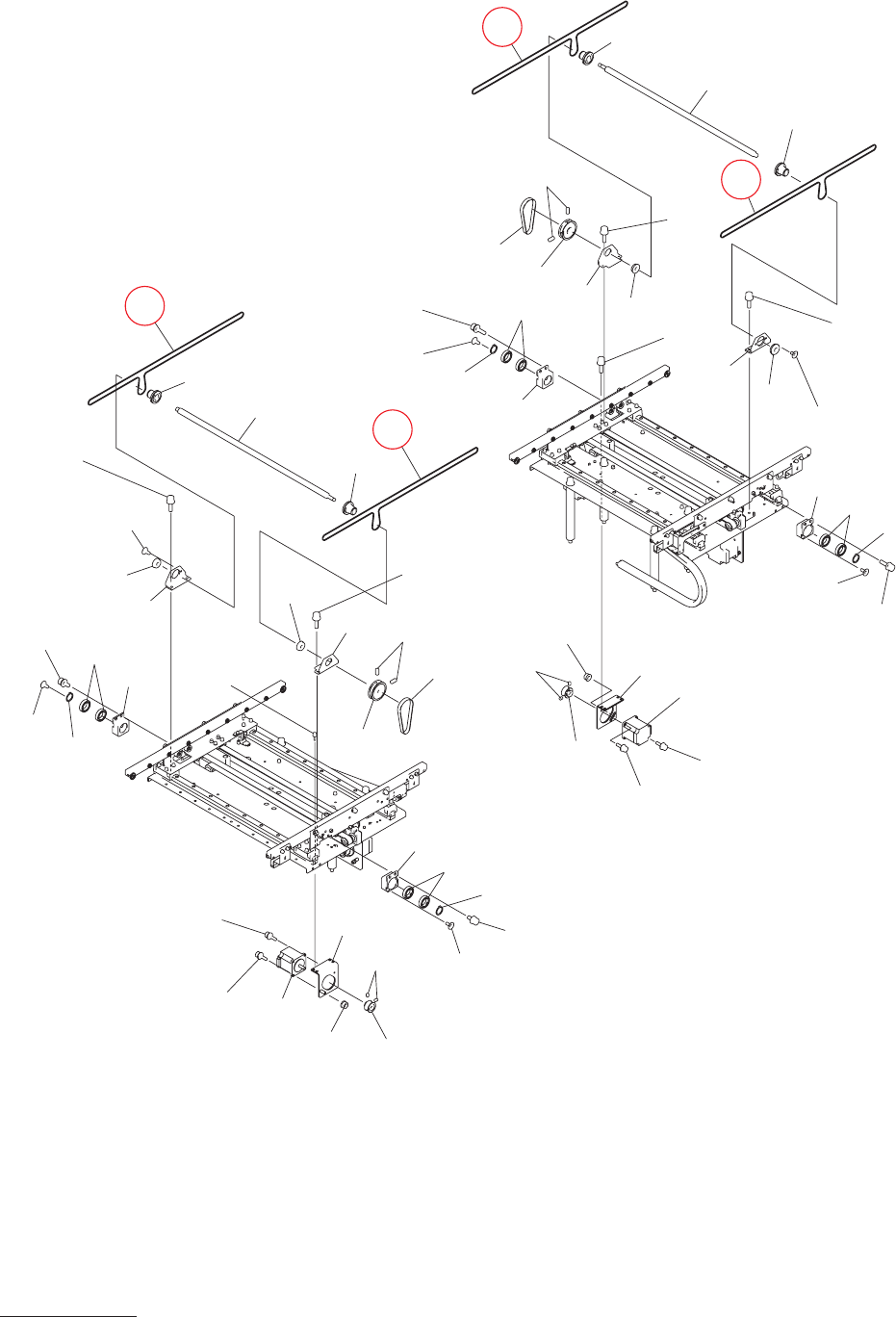

搬送供給、排出部
TRANSFER SUPPLY, DISCHARGE SECTION
Fig. NX-4
搬送部
Conveyor Section
NX-4 illust-1
MODEL SL-G350
1004-004
305 6301314860 ROD 2 870NX-100-205 216C0772
309 6301526638 BRACKET 2 870NX-100-209 211FB702
320 6301505206 PULLEY,TIMING 4 870NX-100-220 223Q0682
321 4110007805 RING C 20 4 870NX-100-221 221K0084
322 6300765731 BEARING,RADIAL 8 870NX-100-222 222D0298
327 6301244006 BELT,TIMING 2 870NX-100-427 223L0267
328 6301236797 BELT,TIMING 4 870NX-100-428 223L0262
329 6301498010 PULLEY,TIMING 2 870NX-100-229 223Q0679
330 6301236506 PULLEY,TIMING 2 870NX-100-230 223Q0546
331 6301499581 MOTOR,STEPPING 2 M41 870NX-100-231 4M140164
333 6301569727 BRACKET 2 870NX-100-433 211FC412
335 6301320878 BLOCK 4 870NX-100-505 211G3804
336 6300011425 BEARING,RADIAL 2 870NX-100-526 222D0021
337 6300969009 BEARING,RADIAL 2 870NX-100-527 222D0343
341 6301569581 BRACKET 2 870NX-100-701 211FC406
355 4111412905 WASHER SPR 4 4 870NX-100-805 221H0284
357 6300010213 WASHER 2 BW4 870NX-100-807 221H0004
358 4111416705 WASHER SPR 5 20 870NX-100-808 221H0284
359 4111414107 WASHER V 5X10X1 20 870NX-100-809 221H0004
369 6300007657 BOLT,HEX-SCT 2 M4X16 870NX-100-819 221A0020
370 6300007664 BOLT,HEX-SCT 2 M4X20 870NX-100-820 221A0021
371 6300007749 BOLT,HEX-SCT 8 M5X10 870NX-100-821 221A0029
372 6300007756 BOLT,HEX-SCT 12 M5X12 870NX-100-822 221A0030
379 4110511708 SCR TRS 4X6 12 870NX-100-829 221E0532
380 6300082296 SET SCREW 4 M4X4 SET 870NX-100-830 221C0027
381 6300008951 SET SCREW 4 M5X8 SET 870NX-100-831 221C0008
382 4111410307 NUT HEX 4 2 870NX-100-832 221F0082
386 4111415906 WASHER F 4X8X0.8 4 870NX-100-836 221H0340
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
NX-4
NX-4 list-1
MODEL SL-G350
0712-002

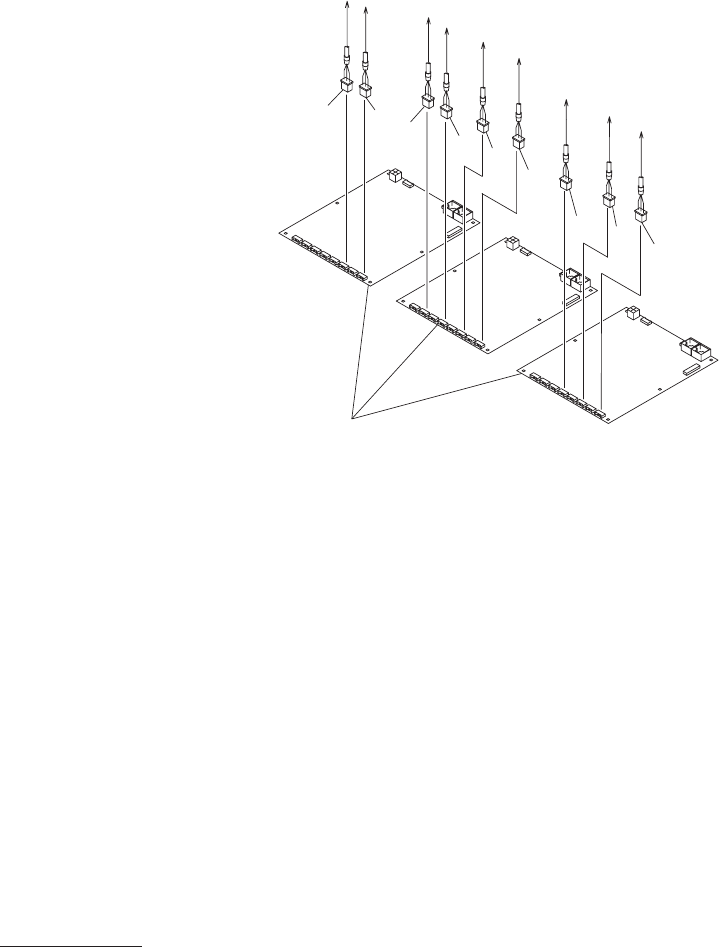

搬送ケーブル部
TRANSFER CABLE SECTION
Fig. NE-1
ケーブル
Cable
GXH-3JPH
See Fig. BL-2
Key No.175
53
X4109
57
X5110
51
X4107
M41
52
X4108
M42
M44
54
X5107
M51
55
X5108
M52
56
X5109
M55
M56
61
X5208
M52
-A51
60
X5207
M51
-A52
-A41
NE-1 illust-1
