8 3. Moving-axis Section 3-2. Y-axis 1 6 9 7 8 12 3 4 4 5 2 10 5 1 1 1 6 9 7 8 12 3 4 4 5 2 10 5 1 1
7
3. Moving-axis Section
3-1. X-axis
No. Part No. Part Name Q'ty Remarks Rank Level
1 LG7-M220H-01X PLATE, SENSOR X 2 / ×
2 LG7-M22A4-00X CLAMP, CABLE 1 / ×
3 LG7-M22A1-10X COUPLING, X-AXIS 1 / ×
4 LG7-M22A3-00X CABLE BEAR, X 1 / ×
5 LG0-M22A4-00X BRACKET FIX 1 / ×
6 LG0-M22A5-00X BRACKET MOV. 1 / ×
7 LG0-M22A6-00X SEPARATER, X 15 / ×
8 LE3-M6521-00X MOTOR ASSY. 1 B ×
9 LG9-M220F-00X BRACKET, FIXED 1 / ○
10 LE3-M653A-01X SENSOR ASSY. 1 B ×
11 LE3-M653E-01X SENSOR ASSY. 1 B ×
12 LG7-M2211-00X STOPPER L ASSY. 1 / ○
13 KV7-M2651-10X DAMPER, STOPPER 1 / ○
14 KV7-M2652-00X BRACKET, STOPPER Y 1 / ○
15 KV7-M2653-00X PIN, PARALLEL 1 / ○
16 LG7-M22A5-00X WASHER 2 / ○
17 91317-04014 BOLT HEX. SOCKET HEAD 1 / ○
18 LG7-M2212-00X STOPPER R ASSY. 1 / ○
19 KV7-M2651-10X DAMPER, STOPPER 1 / ○
20 KV7-M2652-00X BRACKET, STOPPER Y 1 / ○
21 KV7-M2653-00X PIN, PARALLEL 1 / ○
22 LG7-M22A5-00X WASHER 1 / ○
23 91317-04012 BOLT HEX. SOCKET HEAD 1 / ○
8
3. Moving-axis Section

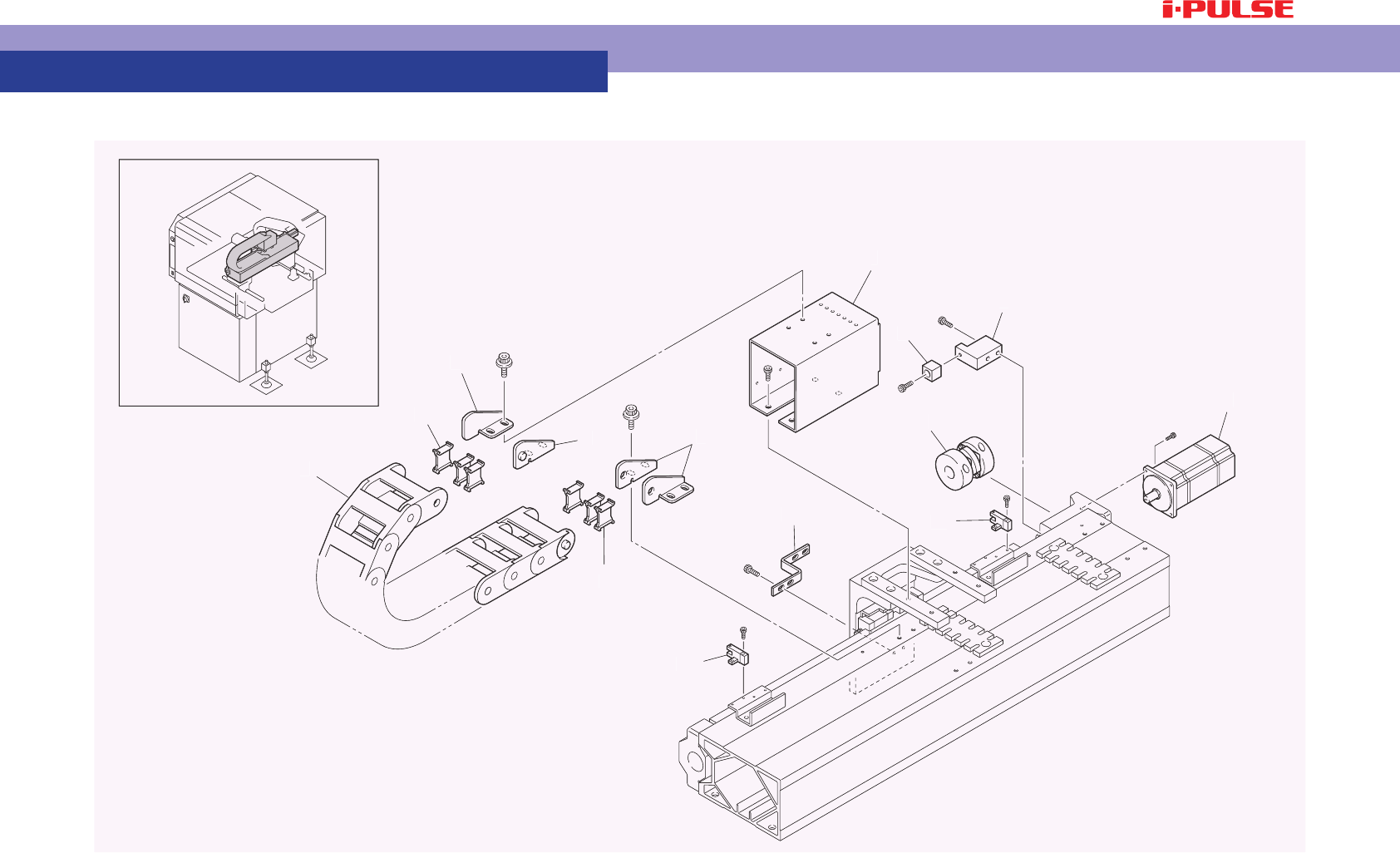

3-2. Y-axis
1
6
9
7
8
12
3
4
4
5
2
10
5
11
1
6
9
7
8
12
3
4
4
5
2
10
5
11
9
3. Moving-axis Section
3-2. Y-axis
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE3-M2604-000 HOLDER, BEAR Y 1 / ×
2 LG7-M26A0-00X CABLE BEAR, Y 1 / ×
3 LG0-M22A4-00X BRACKET FIX 1 / ×
4 LG0-M22A5-00X BRACKET MOV. 1 / ×
5 LG0-M22A6-00X SEPARATER, X 9 / ×
6 LG7-M26A1-10X COUPLING, Y-AXIS 1 / ×
7 LG0-M220F-00X DAMPER, X 1 / ○
8 LG0-M220G-00X STOPPER, X 1 / ○
9 LE3-M6522-00X MOTOR ASSY. 1 B ×
10 LG7-M2630-00X LOCK, HEAD 1 / ○
11 LE3-M653F-01X SENSOR ASSY. 1 B ×
12 LE3-M653G-01X SENSOR ASSY. 1 B ×
