12 4. Conveyor Unit Section 4-2. Front-R (Stopper) 2 15 3 8 7 5 4 10 9 1 1 16 1 13 14 12 6 2 15 3 8 7 5 4 10 9 1 1 16 1 13 14 12 6 No. Part No. Part Name Q'ty Remarks Rank Level 1 LG7-M900H-00X SHAFT, DRIVE 1 / × 2 …
11
4. Conveyor Unit Section
4-1. Conveyor Common
No. Part No. Part Name Q'ty Remarks Rank Level
1 LG7-M900B-00X PLATE, GUIDE L 2 / ×
2 LG7-M900C-00X PLATE, GUIDE R 2 / ×
3 LG7-M900K-00X PULLEY, DRIVE R 1 / ○
4 LE3-M901U-10X GUIDE, SIDE (F) 1 / ×
5 LE3-M900V-12X GUIDE, SIDE (R) 1 / ×
6 LE3-M900Y-00X PLATE, UPPER F 5 / ×
7 LE3-M90A1-00X COUPRING 1 / ×
8 LE3-M90A2-01X BELT 2 / ×
9 KG2-M9108-11X COLLAR, CONVEYOR 1 A ○
10 KV7-M9140-A0X PULLEY CONV. ASSY. 8 A ○
11 LG0-M900A-00X BLOCK, GUIDE (A) 1 / ○
12 LG0-M900B-00X BLOCK, GUIDE (B) 1 / ○
13 LG0-M900C-00X BLOCK, GUIDE (C) 2 / ○
14 LC2-M9131-00X MOTOR 1 / ×
15 LC2-M9132-00X GEAR HEAD 1 / ×
16 LE3-M6531-03X SENSOR ASSY. 1 B ×
17 LE3-M6532-02X SENSOR ASSY. 1 B ×
18 LE3-M90F1-00X SCREW, FLAT HEAD 10 / ○
19 LG7-M900J-00X PULLEY, DRIVE F 1 / ×
20 LG7-M90A5-00X COLLOR, BRG 1 / ×
12
4. Conveyor Unit Section

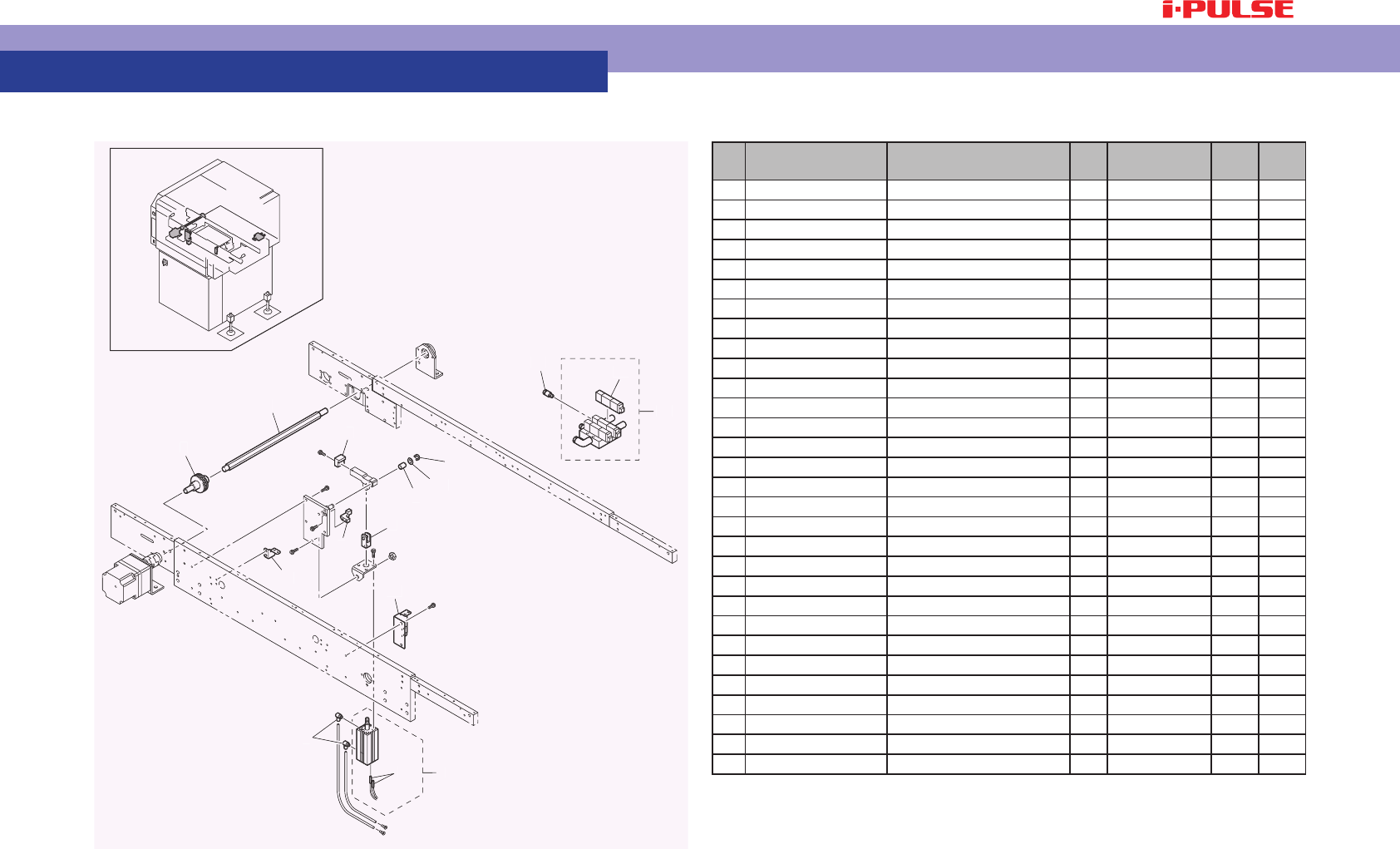

4-2. Front-R (Stopper)
2
15
3
8
7
5
4
10
9
11
16
1
13
14
12
6
2
15
3
8
7
5
4
10
9
11
16
1
13
14
12
6
No. Part No. Part Name Q'ty Remarks Rank Level
1 LG7-M900H-00X SHAFT, DRIVE 1 / ×
2 LG7-M900J-00X PULLEY, DRIVE F 1 / ×
3 LG0-M9203-00X BLOCK, STOPPER (B) 1 / ×
4 LG0-M901X-00X STOPPER 1 / ×
5 LG9-M91A0-00X AIR CYLINDER 1 B ×
6 LG9-M90K6-00X SENSOR, CYL. ASSY. 1 B ×
7 LG0-M90AV-00X JOINT 1 / ×
8 LG0-M71AH-00X JOINT 2 / ×
9 LG0-M90AW-00X BUSH 1 / ×
10 LG0-M90AX-00X SPACER 1 / ×
11 99080-06600 CIRCLIP (E) 1 / ×
12 LG0-M90AN-00X JOINT 2 / ○
13 LG0-M90AL-00X SOLENOID VALVE 1 B ○
14 LC0-M90K5-00X SV ASSY. 1 B ×
15 LE3-M901S-00X BRKT. SENSOR (R) 1 / ×
16 LE3-M900S-12X BRKT. SENSOR (L) 1 / ×
13
4. Conveyor Unit Section

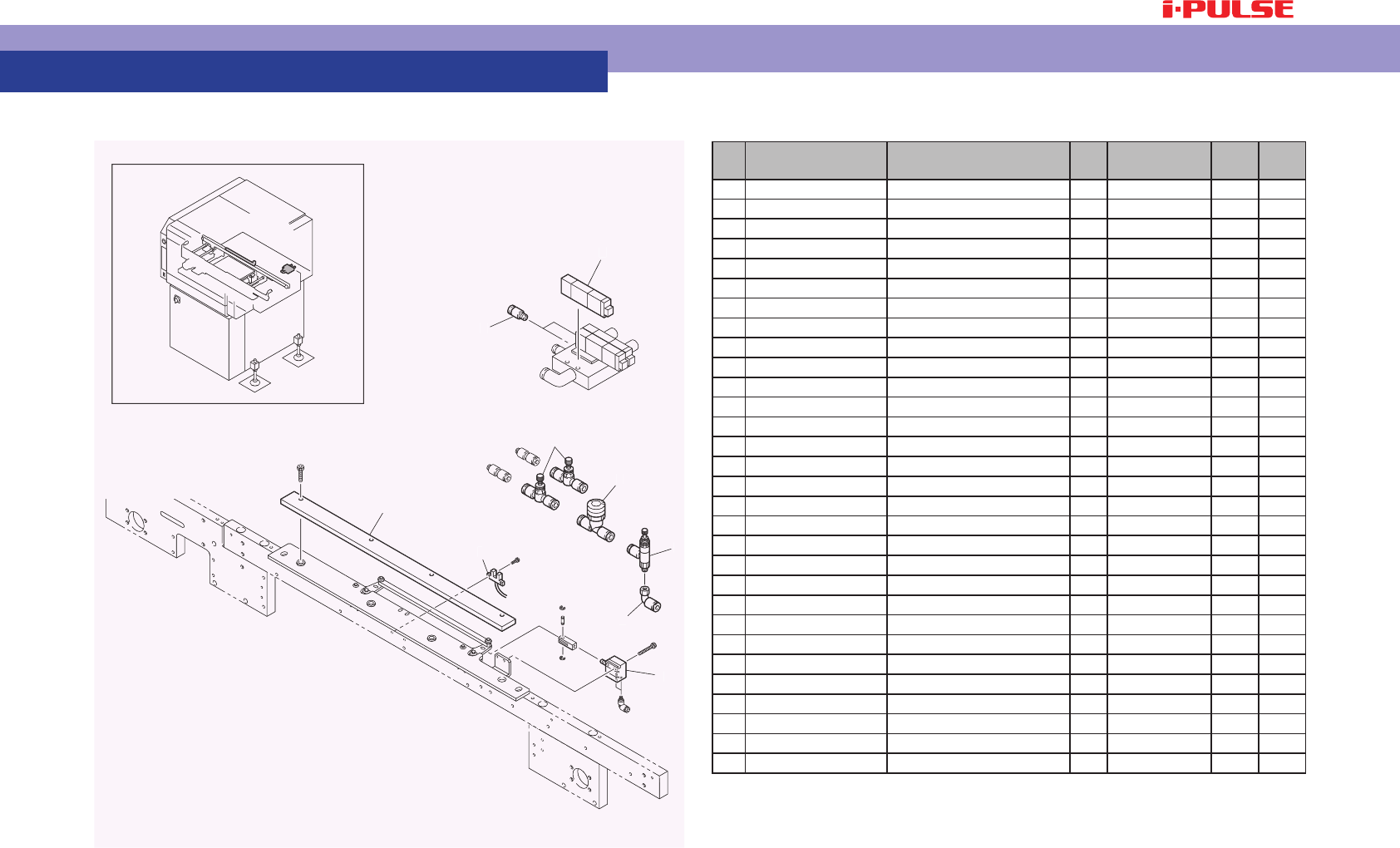

4-3. Edge Clamp
9
2
7
5
6
1
8
4
3
9
2
7
5
6
1
8
4
3
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE3-M6537-11X SENSOR ASSY. 1 B ×
2 LG7-M92A3-00X CHOKE VALVE 2 / ×
3 LG0-M90AN-00X JOINT 2 / ○
4 LG0-M90AL-00X SOLENOID VALVE 1 B ○
5 LE3-M92A1-00X REGURATOR 1 / ○
6 LE3-M92A2-00X JOINT 1 / ○
7 SL26MA169-00X PRES. GAUGE 1 / ○
8 LE3-M9204-00X PLATE, UPPER R 1 / ×
9 LE3-M92A3-00X AIR CYLINDER 1 / ×
