14 4. Conveyor Unit Section 4-4. Auto Width Adjust 1 5 3 5 4 3 2 1 5 3 5 4 3 2 No. Part No. Part Name Q'ty Remarks Rank Level 1 LE3-M6523-00X W MOTOR ASSY. 1 B × 2 LE3-M653H-00X W SENSOR ASSY. 1 B × 3 LE3-M653J-00X …
13
4. Conveyor Unit Section
4-3. Edge Clamp
9
2
7
5
6
1
8
4
3
9
2
7
5
6
1
8
4
3
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE3-M6537-11X SENSOR ASSY. 1 B ×
2 LG7-M92A3-00X CHOKE VALVE 2 / ×
3 LG0-M90AN-00X JOINT 2 / ○
4 LG0-M90AL-00X SOLENOID VALVE 1 B ○
5 LE3-M92A1-00X REGURATOR 1 / ○
6 LE3-M92A2-00X JOINT 1 / ○
7 SL26MA169-00X PRES. GAUGE 1 / ○
8 LE3-M9204-00X PLATE, UPPER R 1 / ×
9 LE3-M92A3-00X AIR CYLINDER 1 / ×
14
4. Conveyor Unit Section

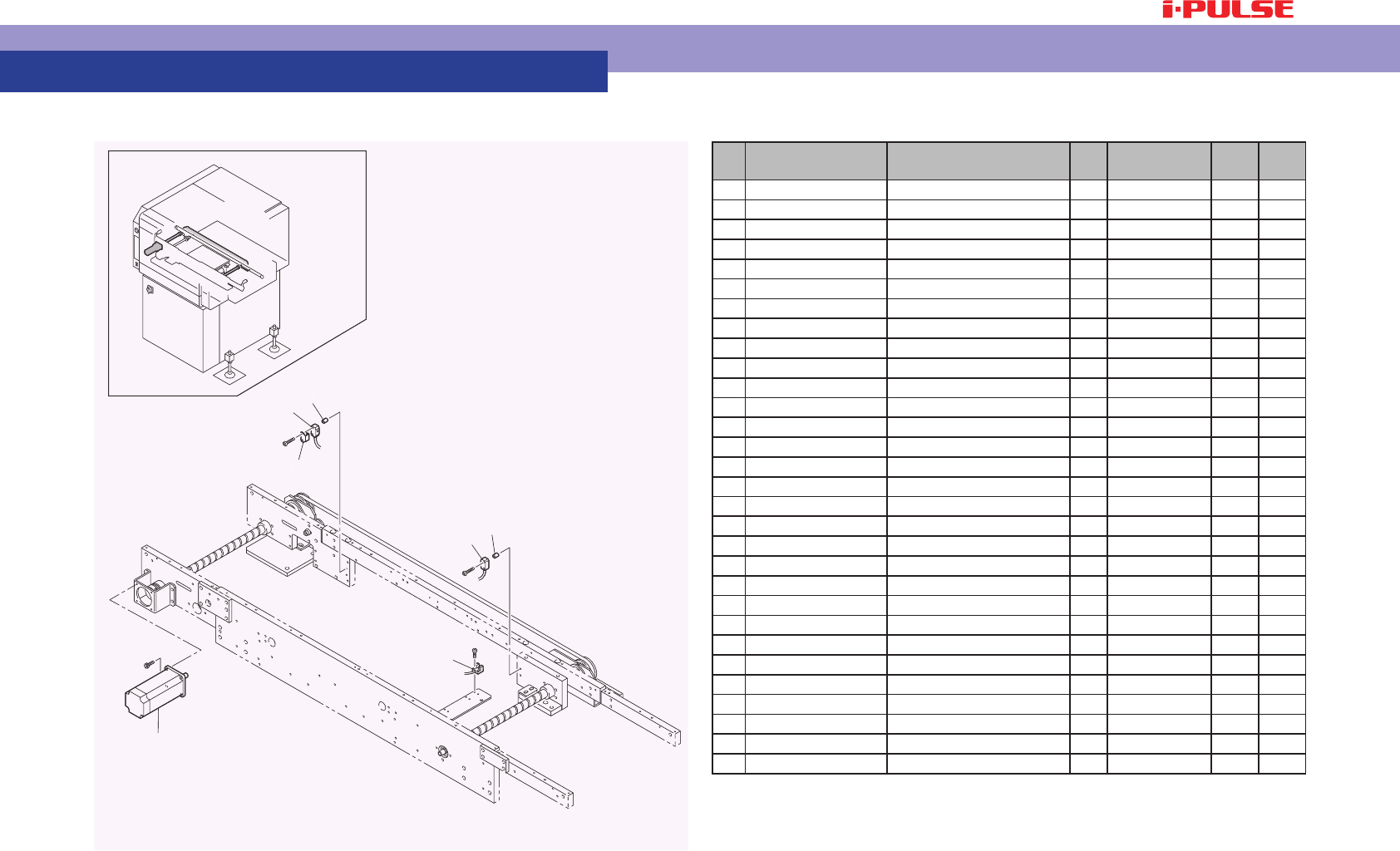

4-4. Auto Width Adjust
1
5
3
5
4
3
2
1
5
3
5
4
3
2
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE3-M6523-00X W MOTOR ASSY. 1 B ×
2 LE3-M653H-00X W SENSOR ASSY. 1 B ×
3 LE3-M653J-00X W-PIN SENSOR ASSY. 1 / ×
4 LC0-M9AH1-00X SLIT, SENSOR 1 / ×
5 LG0-M71C4-00X SPACER 4 / ×
15
4. Conveyor Unit Section
4-5. Push Up
4
3
2
5
L
OPTION
1
4
3
2
5
L
OPTION
1
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE3-M98A0-00X AIR CYLINDER 1 / ×
2 LE3-M9820-00X PIN, MAGNET ASSY. 9 / ○
3 LG0-M90AN-00X JOINT 2 / ○
4 LG0-M90AL-00X SOLENOID VALVE 1 B ○
5
LE3-M9831-00X PIN, PUSHUP (05) 9 (Op.) L=63.5 / ○
LE3-M9832-00X PIN, PUSHUP (08) 9 (Op.) L=63.2 / ○
LE3-M9833-00X PIN, PUSHUP (10) 9 (Op.) L=63 / ○
LE3-M9834-00X PIN, PUSHUP (12) 9 (Op.) L=62.8 / ○
LE3-M9835-00X PIN, PUSHUP (16) 9 (Op.) L=62.4 / ○
LE3-M9836-00X PIN, PUSHUP (20) 9 (Op.) L=62 / ○
