16 5. Marker Pen Unit Section (Option) 5-1. Marker Pen Unit (Option) 17 15 3 16 19 21 2 1 1 T ype-S 13 20 6 10 1 12 9 5 4 18 7 14 14 8 T ype-L T ype-L 17 15 3 16 19 21 2 1 1 T ype-S 13 20 6 10 1 12 9 5 4 18 7 14 14 8 T y…
15

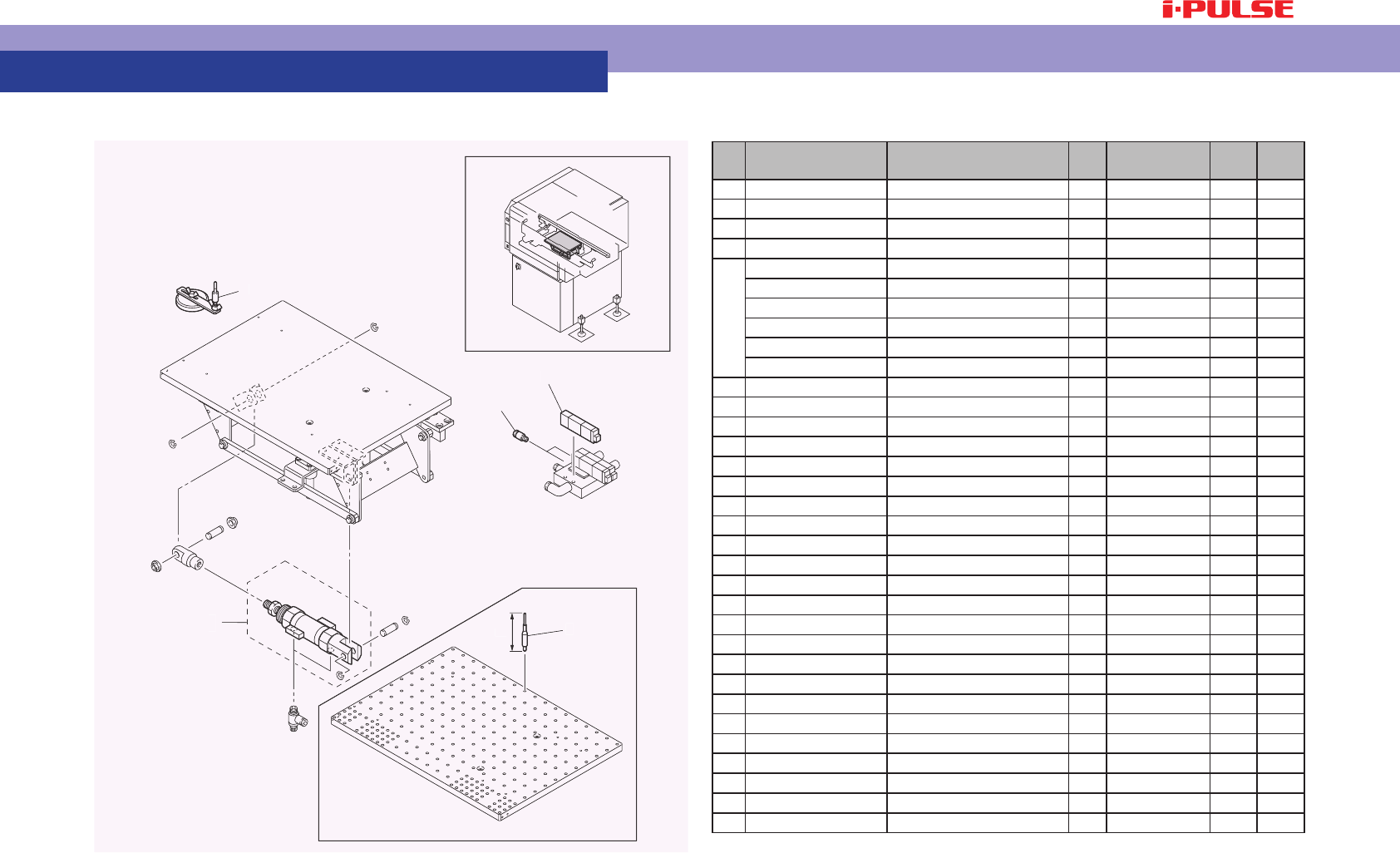

4. Conveyor Unit Section
4-5. Push Up
4
3
2
5
L
OPTION
1
4
3
2
5
L
OPTION
1
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE3-M98A0-00X AIR CYLINDER 1 / ×
2 LE3-M9820-00X PIN, MAGNET ASSY. 9 / ○
3 LG0-M90AN-00X JOINT 2 / ○
4 LG0-M90AL-00X SOLENOID VALVE 1 B ○
5
LE3-M9831-00X PIN, PUSHUP (05) 9 (Op.) L=63.5 / ○
LE3-M9832-00X PIN, PUSHUP (08) 9 (Op.) L=63.2 / ○
LE3-M9833-00X PIN, PUSHUP (10) 9 (Op.) L=63 / ○
LE3-M9834-00X PIN, PUSHUP (12) 9 (Op.) L=62.8 / ○
LE3-M9835-00X PIN, PUSHUP (16) 9 (Op.) L=62.4 / ○
LE3-M9836-00X PIN, PUSHUP (20) 9 (Op.) L=62 / ○
16

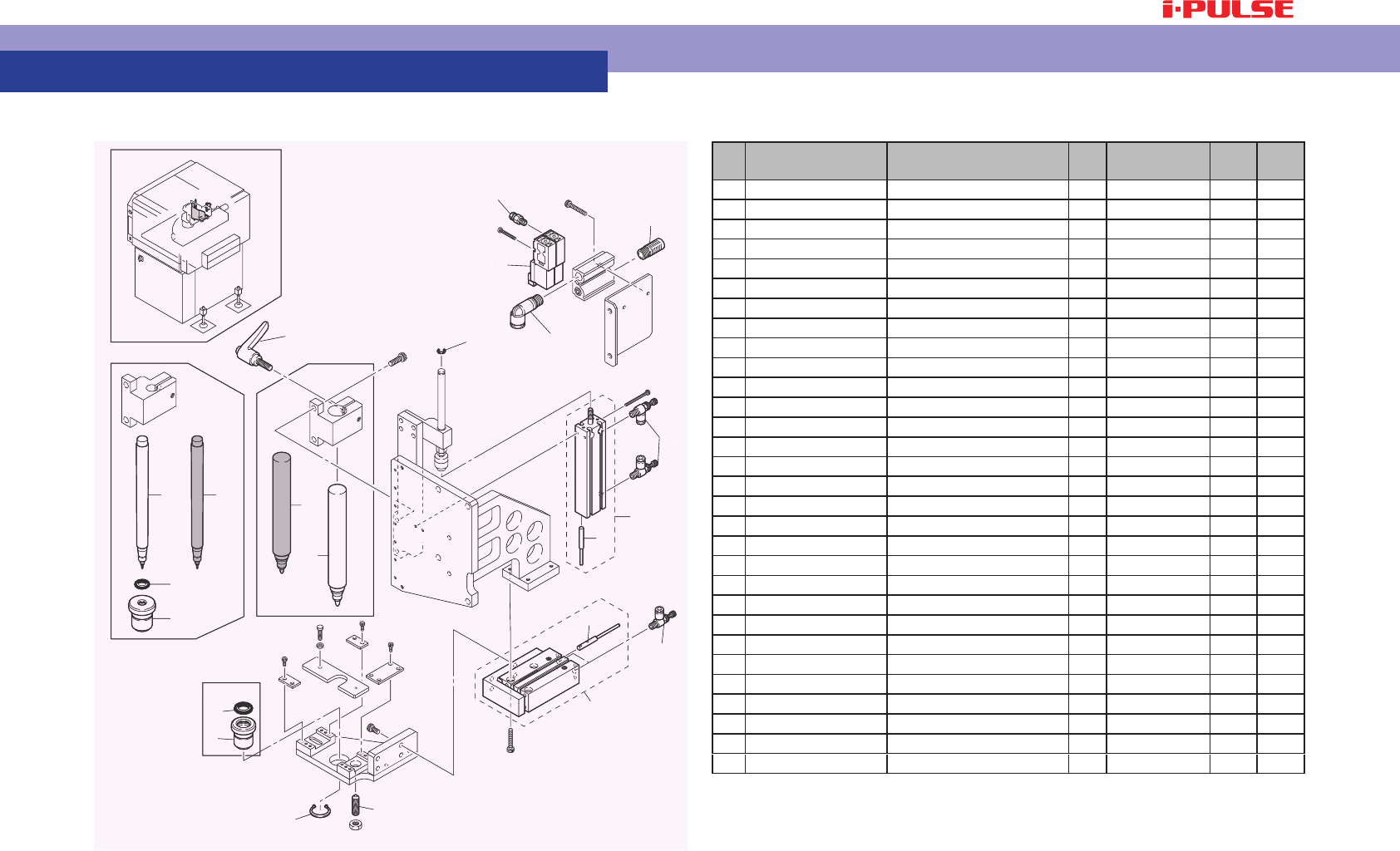

5. Marker Pen Unit Section (Option)
5-1. Marker Pen Unit (Option)
17
15
3
16
19
21
2
11
Type-S
13
20
6
10
1
12
9
5
4
18
7
14
14
8
Type-L
Type-L
17
15
3
16
19
21
2
11
Type-S
13
20
6
10
1
12
9
5
4
18
7
14
14
8
Type-L
Type-L
Type-L
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE3-M5114-01X CAP (L) 1 / ×
2 LE3-M5134-00X CAP (S) 1 / ×
3 LE2-M6546-00X MRK SV ASSY. 1 B ×
4 LE3-M51A2-00X AIR CYLINDER 1 B ×
5 LE3-M6538-01X SENSOR ASSY. 1 B ×
6 LE3-M51A5-00X LEVER, CLAMP 1 / ○
7 LE3-M51B1-00X AIR CYLINDER 1 B ×
8 LE3-M6539-02X SENSOR ASSY. 1 B ×
9 LE3-M51B2-00X PLUNGER, BALL 1 / ×
10 LE3-M51B3-00X O-RING 1 Type-L A ×
11 LE3-M51C3-00X O-RING 1 Type-S A ×
12 99009-17400 CIRCLIP 1 / ×
13 99001-05600 CIRCLIP 1 / ×
14 $SC4-M5A SPEED CONTROLLER 4 / ×
15 LG0-M90AN-00X JOINT 4 / ○
16 LG0-M90AK-00X MUFFLER 1 / ○
17 LG0-M90AM-00X JOINT 1 / ○
18 LE3-M51D1-20X PEN, MARKER (LR) 1 Type-L E ○
19 LE3-M51D2-20X PEN, MARKER (SR) 1 Type-S E ○
20 LE3-M51D1-30X PEN, MARKER (LB) 1 Type-L E ○
21 LE3-M51D2-30X PEN, MARKER (SB) 1 Type-S E ○
17
6. Controller Section
6-1. Control Box
6
3
2
10
9
4
8
1
1
7
5
6
3
2
10
9
4
8
1
1
7
5
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE3-M400A-01X BRKT, BOARD 1 2 / ×
2 LE3-M400B-01X BRKT, BOARD 2 1 / ×
3 LE3-M400P-00X BRKT, PORT 1 / ×
4 LE3-M65E3-00X MEMORY 1 B ×
5 LE3-M65E4-00X SERIAL ATA HDD 1 B ×
6 LE3-M65E5-00X ATX POWER SUPPLY 1 B ×
7 LC3-M40HJ-00X BOARD, VM7 1 B ×
8 LE3-M40H0-00X BOARD, MCB 1 B ×
9 LG0-M11HC-00X GAURD, FINGER 1 / ○
10 LE3-M6515-00X FAN ASSY. 1 / ×
