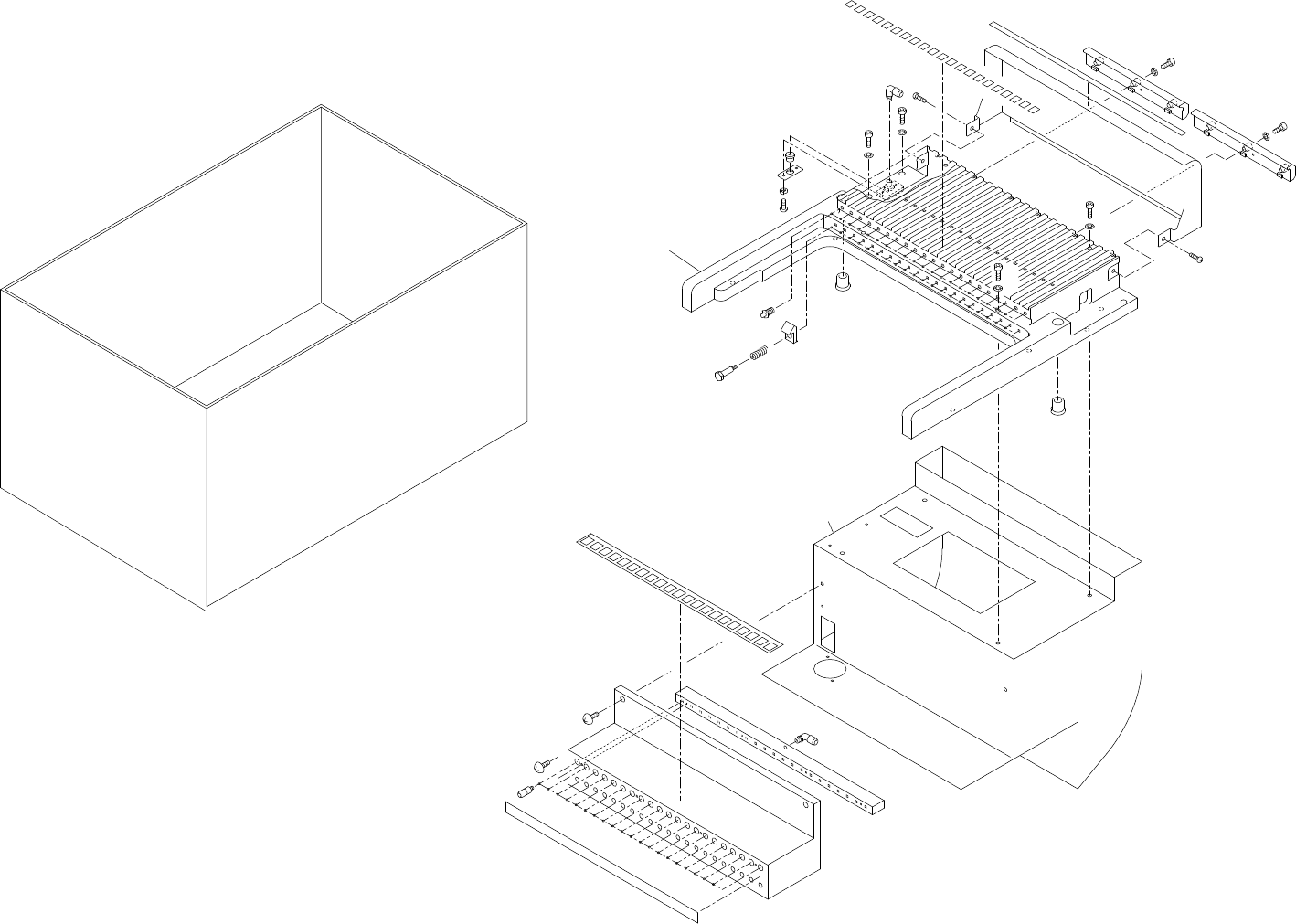

61.カバー 6(インディペンデント)(オプション)(BHAK)
61.Cover 6(Indipendent)(Option)(BHAK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No.& Code No. QTY Description Rating Remarks
1 ABHAK1440 (1) COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ
2 ABHAK1450 (1) COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ 注 1 Note.1
3 BHAK1400 (1) PLATE, ACRYLIC ﾌﾟﾚｰﾄ ｱｸﾘﾙ
4 BHAK1220 (9) BUSHING, RUBBER ﾌﾞｯｼｭ ｺﾞﾑ
5 BHAK1230 (1) BKT BKT
6 BHAK1250 (1) NAMEPLATE, CAUTION 銘板 注意
7 BHAK1260 (1) NAMEPLATE, CAUTION 銘板 注意
8 K5207A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X5L
9 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L
10 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
11 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
12 BHAK1350 NAMEPLATE, CAUTION 銘板 注意 Japanese, French
13 BHAK1370 NAMEPLATE, CAUTION 銘板 注意 Japanese, French
14 BHAK1380 (1) BKT BKT **-6**,**-8**
15 BHAK1390 (1) PLATE ﾌﾟﾚｰﾄ
16 BHAK1430 (2) BUSHING, RUBBER ﾌﾞｯｼｭ ｺﾞﾑ
17 BHAK5230 (1) BKT BKT **-7**
18 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
19 K5262L SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M6X25L
20 N1086A NUT, HEX ﾅｯﾄ 六角 M6
21 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
22 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
23 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
注1.MTU-71 ﾘﾑｰﾊﾞ側のみ
Note.1 : Only MTU-71 Remover Side.
QP-242E PARTS LIST ver11
61 - 2
61.カバー 6(インディペンデント)(オプション)(BHAK)
61.Cover 6 (Indipendent)(Option)(BHAK)
X8
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
ﾀﾃx173.205
14
17
20
1
8
8
10
13
26
28
27
29
32
33
18
19
15
16
21
21
6
31
7
11
12
2
3
23
30
31
34
25
24
22
35
9
2
3
4
5
20
21
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
20
21
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
20
21
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
QP-242E PARTS LIST ver11
62 - 1
62.固定デバイス(BHUF)
62.Fixed device(BHUF)
62.固定デバイス(BHUF)
62.Fixed device(BHUF)
62.固定デバイス(BHUF)
62.Fixed device(BHUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No.& Code No. QTY Description Rating Remarks
1 BHUF0900 1 BASE ﾍﾞｰｽ
2 H5331A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X45L
3 W1013A 4 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
4 H5302A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X20L
5 W1012A 2 WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
6 H5324A 1 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L
7 W1013A 1 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
8 BHUF0020 2 BUSHING, GUIDE ﾌﾞｯｼｭ ｶﾞｲﾄﾞ
9 BHUF0910 1 BASE ﾍﾞｰｽ
10 BHUF0040 1 PLATE ﾌﾟﾚｰﾄ
11 K5257E 2 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M4X10L
12 W1022A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
13 BHUF0050 1 PACKING, RUBBER ﾊﾟｯｷﾝ ｺﾞﾑ
14 BHUF0060 1 CLAMPER ｸﾗﾝﾊﾟ
15 H5321A 3 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
16 W1013A 3 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
17 BHUF0070 1 CLAMPER ｸﾗﾝﾊﾟ
18 H5321A 3 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
19 W1013A 3 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
20 BHUF0620 1 GUIDE, TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
21 K51841 2 SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M6X10L
22 BHUF0930 1 NAMEPLATE 銘板 For Handy terminal
23 BHUF1010 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
24 K51721 4 SCREW, C/R TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M3X5L
25 K51725 2 SCREW, C/R TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M5X25L
26 IPA5411 21 CLAMPER ｸﾗﾝﾊﾟ
27 IPA5421 21 BOLT ﾎﾞﾙﾄ
28 IPA5430 21 SPRING ｽﾌﾟﾘﾝｸﾞ
29 IPA5460 21 PIN ﾋﾟﾝ
30 S5021M 21 SOCKET ｿｹｯﾄ SMK-015
31 S2171B 2 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01(NYﾒｯｷ)
32 IPA0580 1 SEAL ｼｰﾙ
33 IPA5340 1 SEAL ｼｰﾙ
34 IPA5350 1 SEAL ｼｰﾙ
QP-242E PARTS LIST ver11
62 - 2
62.固定デバイス(BHUF)
62.Fixed device(BHUF)
