67.1.MFU-5LE,MFU-5SE 本体(BHUF) 67.1.MFU-5LE,MFU-5SE Body(BHUF) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No.& Code No. QTY Description Rating Remarks 1 BHUF0081 1 BASE ﾍﾞｰｽ 2 H5331A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X45L 3 W…
QP-242E PARTS LIST ver11
67 - 1

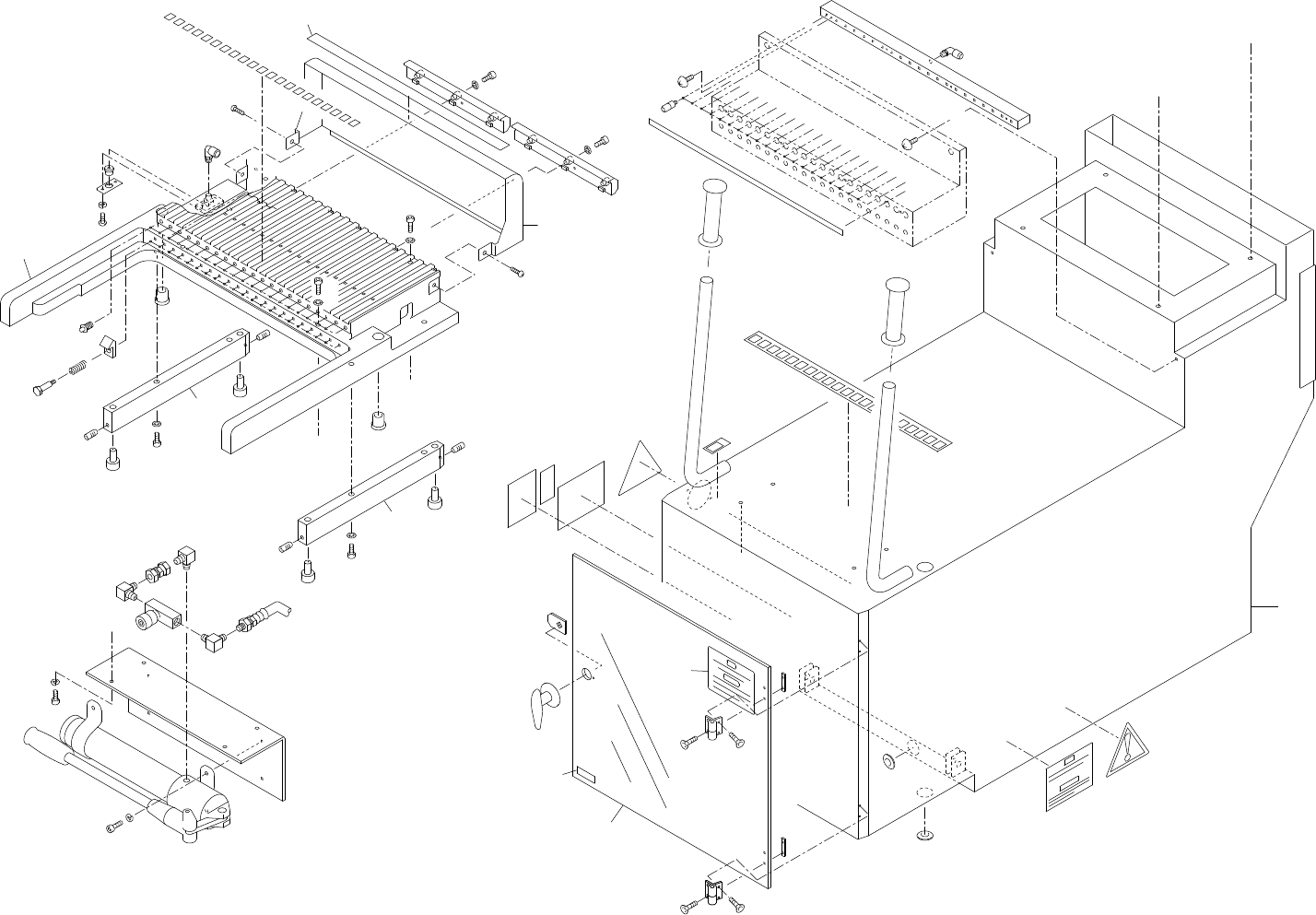

67.1.MFU-5LE,MFU-5SE 本体(BHUF)
67.1.MFU-5LE,MFU-5SE Body(BHUF)
67.1.MFU-5LE,MFU-5SE 本体(BHUF)
67.1.MFU-5LE,MFU-5SE Body(BHUF)
12
15
58
32
32
36
35
29
1
4
5
4
22
22
8
11
18
20
19
21
24
37
38
39
47
47
42
43
44
45
46
45
52
54
34
33
33
34
16
17
13
14
30
30
2
3
23
23
5
22
22
23
23
7
6
7
6
40
41
9
10
2
3
A
A
62
28
27
26
49
48
50
51
51
31
31
B
C
B
C
53
52
46
55
25
57
56
68
63
64
65
60
67
63
107
69
71
70
66
61
59
C
A
U
T
I
O
N
注意
危 険
D
A
N
G
E
R
67.1.MFU-5LE,MFU-5SE 本体(BHUF)
67.1.MFU-5LE,MFU-5SE Body(BHUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No.& Code No. QTY Description Rating Remarks
1 BHUF0081 1 BASE ﾍﾞｰｽ
2 H5331A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X45L
3 W1013A 4 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
4 BHUF0020 2 BUSHING, GUIDE ﾌﾞｯｼｭ ｶﾞｲﾄﾞ
5 BHUF0030 2 GUIDE, SIDE ｶﾞｲﾄﾞ ｻｲﾄﾞ
6 H5343A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X30L
7 W1014A 4 WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H
8 BHUF0040 1 PLATE ﾌﾟﾚｰﾄ
9 K5257E 2 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M4X10L
10 W1022A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
11 BHUF0050 1 PACKING, RUBBER ﾊﾟｯｷﾝ ｺﾞﾑ
12 BHUF0060 1 CLAMPER ｸﾗﾝﾊﾟ
13 H5321A 3 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
14 W1013A 3 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
15 BHUF0070 1 CLAMPER ｸﾗﾝﾊﾟ
16 H5321A 3 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
17 W1013A 3 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
18 IPA5411 21 CLAMPER ｸﾗﾝﾊﾟ
19 IPA5421 21 BOLT ﾎﾞﾙﾄ
20 IPA5430 21 SPRING ｽﾌﾟﾘﾝｸﾞ
21 IPA5460 21 PIN ﾋﾟﾝ
22 K1089E 4 CAM FOLLOWER ｶﾑﾌｫﾛｱ CF-SFU-10
23 N4046A 4 WASHER, LOCK ﾈｼﾞ 六角穴止め M6X8L
24 Y3078A 1
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-01S
25 BHUF0612 1 BASE ﾍﾞｰｽ MFU-5LE-Type
26 BHUF0590 1 PUMP ﾎﾟﾝﾌﾟ
27 H5298A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
28 W1023A 4 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
29 BHUF0620 1 GUIDE, TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
30 K51841 2 SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M6X10L
31 T50127 2 HANDLE 取手 0052-60Black
32 T2123E 2 HINGE 蝶番 TH-10R
33 K5358A 4 SCREW, HEX SOCKET COUNTERSUNK 小ﾈｼﾞ六角穴皿 M3X10L
34 K5357H 4 SCREW, HEX SOCKET COUNTERSUNK 小ﾈｼﾞ六角穴皿 M3X5L
35 H1018G 1 HANDLE ﾊﾝﾄﾞﾙ THA-225-1
36 BHUF0640 1 PLATE ﾌﾟﾚｰﾄ
37 BHUF1010 1 MANIFOLD ﾏﾆﾎｰﾄﾞ
QP-242E PARTS LIST ver11
67 - 2
67.1.MFU-5LE,MFU-5SE 本体(BHUF)
67.1.MFU-5LE, MFU-5SE Body(BHUF)
67.1.MFU-5LE,MFU-5SE 本体(BHUF)
67.1.MFU-5LE,MFU-5SE Body(BHUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No.& Code No. QTY Description Rating Remarks
38 S5021M 21 SOCKET ｿｹｯﾄ SMK-015
39 S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01(NYﾒｯｷ)
40 K51725 2 SCREW, TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M5X25L
41 K51721 4 SCREW, TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M3X5L
42 IPA0580 1 SEAL ｼｰﾙ
43 IPA5340 1 SEAL ｼｰﾙ
44 IPA5350 1 SEAL ｼｰﾙ
45 KPA0890 2 SEAL ｼｰﾙ
46 BHUF0650 2 NAMEPLATE, CAUTION 銘板注意 English
47 H3085T 2 BUSHING, RUBBER ﾌﾞｼｭ ｺﾞﾑ G-12
48 BHUF0770 1 NAMEPLATE 銘板
49 BHUF0800 1 NAMEPLATE, CAUTION 銘板注意 English
50 BHUF0780 1 NAMEPLATE 銘板
51 BHUF0810 2 NUT ﾅｯﾄ
52 BHUF0830 2 NAMEPLATE, CAUTION 銘板注意 French
53 BHUF0840 1 NAMEPLATE, CAUTION 銘板注意 French
54 BHUF0822 1 BASE ﾍﾞｰｽ MFU-5SE-Type
55 BHTB1000 1 GUIDE, TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ For STU-1
56 BHUF0930 1 NAMEPLATE 銘板 For Handy terminal
57 KPD5040 1 SEAL ｼｰﾙ For Handy terminal
58 ABHUF0950 1 DOOR 扉 Brown Smoke
59 ABHUF0921 1 DOOR 扉 Smoke(Option)
60 BHUF0720 1 BKT BKT
61 H5299A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
62 W1023A 4 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
63 A1022E 2 ADAPTER ｱﾀﾞﾌﾟﾀ 1034-6-1/4
64 A10208 1 ADAPTER ｱﾀﾞﾌﾟﾀ 1010-6-1/4
65 H1051Z 1 VALVE, CHECK ﾊﾞﾙﾌﾞ ﾁｪｯｸ HT-720-02
66 A1022C 1 ELBOW ｴﾙﾎﾞ 1033-6-1/4
67 HP44410 1 HOSE, HYDRAULIC ﾎｰｽ 油圧
68 ABHUF1050 1 DOOR 扉 Clear(Option)
69 WWM0210 1 SEAL ｼｰﾙ Clear(Option)
70 BHTB2420 1 SEAL ｼｰﾙ For STU-1
71 BHPZ0170 1 SEAL ｼｰﾙ
