67.1.MFU-5LE,MFU-5SE 本体(BHUF)
67.1.MFU-5LE,MFU-5SE Body(BHUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No.& Code No. QTY Description Rating Remarks
38 S5021M 21 SOCKET ｿｹｯﾄ SMK-015
39 S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01(NYﾒｯｷ)
40 K51725 2 SCREW, TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M5X25L
41 K51721 4 SCREW, TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M3X5L
42 IPA0580 1 SEAL ｼｰﾙ
43 IPA5340 1 SEAL ｼｰﾙ
44 IPA5350 1 SEAL ｼｰﾙ
45 KPA0890 2 SEAL ｼｰﾙ
46 BHUF0650 2 NAMEPLATE, CAUTION 銘板注意 English
47 H3085T 2 BUSHING, RUBBER ﾌﾞｼｭ ｺﾞﾑ G-12
48 BHUF0770 1 NAMEPLATE 銘板
49 BHUF0800 1 NAMEPLATE, CAUTION 銘板注意 English
50 BHUF0780 1 NAMEPLATE 銘板
51 BHUF0810 2 NUT ﾅｯﾄ
52 BHUF0830 2 NAMEPLATE, CAUTION 銘板注意 French
53 BHUF0840 1 NAMEPLATE, CAUTION 銘板注意 French
54 BHUF0822 1 BASE ﾍﾞｰｽ MFU-5SE-Type
55 BHTB1000 1 GUIDE, TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ For STU-1
56 BHUF0930 1 NAMEPLATE 銘板 For Handy terminal
57 KPD5040 1 SEAL ｼｰﾙ For Handy terminal
58 ABHUF0950 1 DOOR 扉 Brown Smoke
59 ABHUF0921 1 DOOR 扉 Smoke(Option)
60 BHUF0720 1 BKT BKT
61 H5299A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
62 W1023A 4 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
63 A1022E 2 ADAPTER ｱﾀﾞﾌﾟﾀ 1034-6-1/4
64 A10208 1 ADAPTER ｱﾀﾞﾌﾟﾀ 1010-6-1/4
65 H1051Z 1 VALVE, CHECK ﾊﾞﾙﾌﾞ ﾁｪｯｸ HT-720-02
66 A1022C 1 ELBOW ｴﾙﾎﾞ 1033-6-1/4
67 HP44410 1 HOSE, HYDRAULIC ﾎｰｽ 油圧
68 ABHUF1050 1 DOOR 扉 Clear(Option)
69 WWM0210 1 SEAL ｼｰﾙ Clear(Option)
70 BHTB2420 1 SEAL ｼｰﾙ For STU-1
71 BHPZ0170 1 SEAL ｼｰﾙ
QP-242E PARTS LIST ver11
67 - 3
67.1.MFU-5LE,MFU-5SE 本体(BHUF)
67.1.MFU-5LE, MFU-5SE Body(BHUF)
23
22
5
22
22
5
22
23
22
5
22
23
22
5
22
23
3
21
21
25
24
4
24
2
21
21
16
15
26
25
27
39
39
17
7
19
18
6
20
9
40
40
1
14
13
29
10
26
31
33
35
37
36
34
28
11
32
31
32
38
12
33
35
37
36
34
38
8
H=962
H=962
QP-242E PARTS LIST ver11
67 - 4

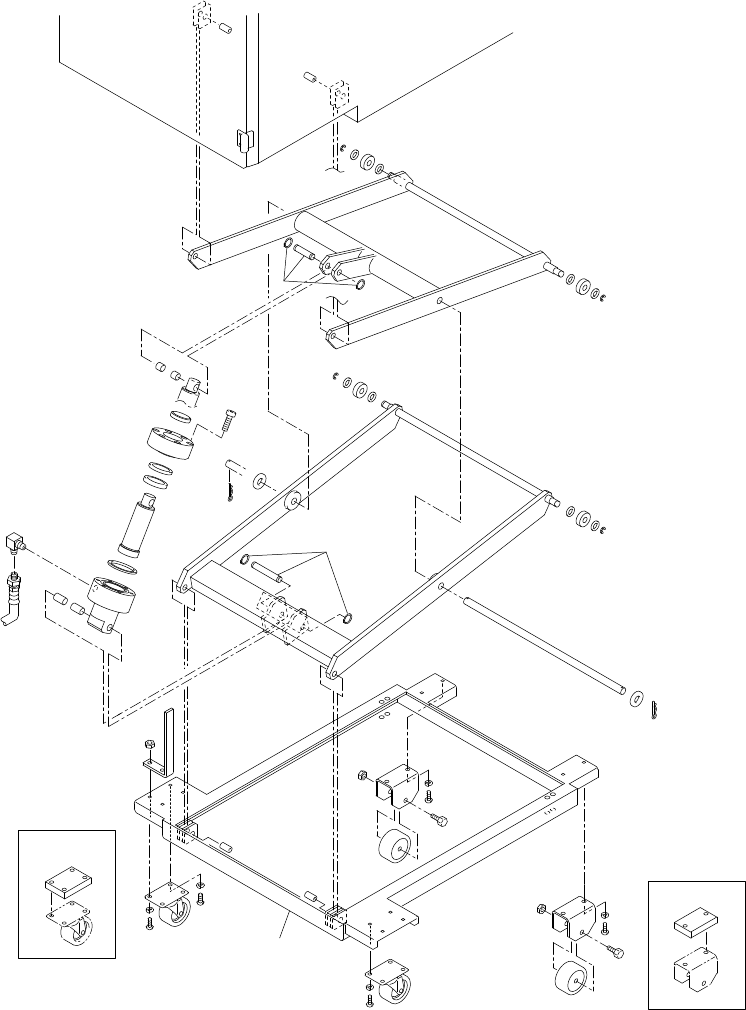

67.2.MFU-5LE,MFU-5SE 本体(BHUF)
67.2.MFU-5LE,MFU-5SE Body(BHUF)
67.2.MFU-5LE,MFU-5SE 本体(BHUF)
67.2.MFU-5LE,MFU-5SE Body(BHUF)
67.2.MFU-5LE,MFU-5SE 本体(BHUF)
67.2.MFU-5LE,MFU-5SE Body(BHUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No.& Code No. QTY Description Rating Remarks
1 BHUF0511 1 FRAME ﾌﾚｰﾑ
2 BHUF0521 1 LINK ﾘﾝｸ
3 BHUF0530 1 LINK ﾘﾝｸ
4 BHUF0540 1 SHAFT ｼｬﾌﾄ
5 BHUF0550 4 ROLLER ﾛｰﾗ
6 BHUF0680 1 ROD ﾛｯﾄﾞ
7 BHUF0690 1 COVER 蓋
8 H5344A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X35L
9 BHUF0700 1 CYLINDER ｼﾘﾝﾀﾞ
10 BHUF0760 1 BKT BKT
11 BHUF1070 2 BLOCK ﾌﾞﾛｯｸ H=962mm Type
12 BHUF1080 2 BLOCK ﾌﾞﾛｯｸ H=962mm Type
13 HP44410 1 HOSE, HYDRAULIC ﾎｰｽ 油圧
14 A1022C 1 ELBOW ｴﾙﾎﾞ 1033-6-1/4
15 H20151 1 PIN ﾋﾟﾝ CCG10-45
16 H20150 1 PIN ﾋﾟﾝ CCG10-33
17 S3003A 1
SCRAPER
ｽｸﾚｰﾊﾟ SDR-20
18 H1184T 1 PACKING ﾊﾟｯｷﾝ ISI-20(FU0212KO)
19 R2063W 1 RING, BACKUP ﾘﾝｸﾞ ﾊﾞｯｸｱｯﾌﾟ GN4780V.0
20 A5156A 1 0 RING O ﾘﾝｸﾞ P=35
21 H2072T 4 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 10ﾟX18
22 M1061X 8 WASHER ﾜｯｼｬ SSWA17-2.0
23 S1026A 4
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-8
24 W1057A 2 WASHER, FLAT ﾜｯｼｬ 平 12M/MX2.5X24(1W-12)
25 H2099T 2 PIN, SPLIT ﾋﾟﾝ 割 2.5ﾟX15
26 K2024N 2 CASTER, UNIVERSAL ｷｬｽﾀ 自在 NO.103-N
27 K5262H 2 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M6X20L
28 W1024A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
29 N1085A 2 NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
31 K5262A 6 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M6X10L
32 W1024A 6 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
33 K2023N 2 CASTER ｷｬｽﾀ PH-50
34 BHUF0860 2 BKT, ROLLER BKT ﾛｰﾗ
35 H5201A 2 BOLT, HEX ﾎﾞﾙﾄ 六角 M8X50L 10.9
36 N1068A 2 NUT, U ﾅｯﾄ U M08
37 K5262A 4 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M6X10L
38 W1024A 4 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
QP-242E PARTS LIST ver11
67 - 5
67.2.MFU-5LE,MFU-5SE 本体(BHUF)
67.2.MFU-5LE, MFU-5SE Body(BHUF)
