77.1.MTU-71E TZ軸(BHTC)
77.1.MTU-71E TZ axis(BHTC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No.
Drg. No. & Code No.
QTY Description Rating Remarks
93 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
94 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L
95 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
97 H52966
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X6L
98 H5297A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X8L
101 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X15L
102 .
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X18L
103 H5344A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X35L
105 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
106 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
107 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
108 W1026A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
110 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
111 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
114 W1041A
WASHER, FLAT
ﾜｯｼｬ 平         
4M/MX0.8X9(1W-4)
115 W1050A
WASHER, FLAT
ﾜｯｼｬ 平         
5M/MX1.0X10(1W-5)
116 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
117 W1014A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-8-H
119 K5209A
SCREW, TRUSS
ｺﾈｼﾞ ﾄﾗｽ M4X8L
121 N1092A
NUT, HEX
ﾅｯﾄ 六角         
M10 P=1.5
122 K5255T 16 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X6L
123 .
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋        
M2.6X5L
124 K5206A
SCREW, TRUSS
ｺﾈｼﾞ ﾄﾗｽ M4X4L
125 K5178T
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋        
M3X12L
126 .
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋        
M3X15L
127 BHTC3020 3 SPACER ｽﾍﾟｰｻ
128 BHTC3030 6 SPACER ｽﾍﾟｰｻ
129 BHTC3040 3 SPACER ｽﾍﾟｰｻ
130 DBTN0430 8 SPACER ｽﾍﾟｰｻ
131 KPA0890 2 SEAL ｼｰﾙ
132 BHUF0650 2 SEAL ｼｰﾙ
133 BHTC0630 4 GUIDE ｶﾞｲﾄﾞ
134 BHTC0691 1 STOPPER ｽﾄｯﾊﾟ
135 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
136 N4016A SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め M2X2L
137 BHPP1880 1 RAIL ﾚｰﾙ ･
QP-242E PARTS LIST ver11
77 - 3
77.1.MTU-71E TZ軸(BHTC)
77.1.MTU-71E TZ axis(BHTC)
QP-242E PARTS LIST ver11

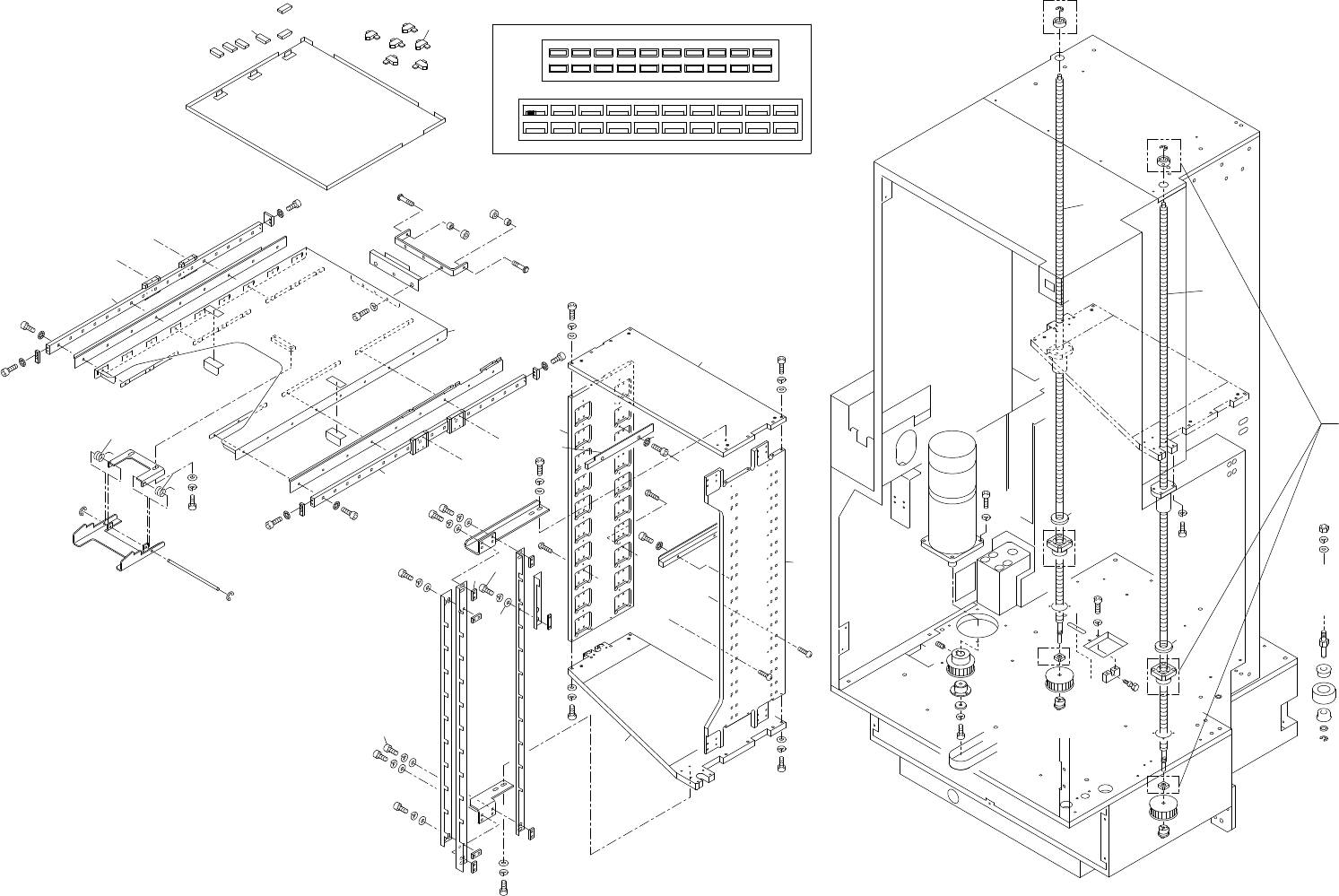

77.2.MTU-71E TZ軸(BHTC)
77.2.MTU-71E TZ axis(BHTC)
77 - 4
77.2.MTU-71E TZ軸(BHTC)
77.2.MTU-71E TZ axis(BHTC)
Ref.33-7
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
70
62
128
94
105
99
106
59
59
75
118
69
18
18
63
99
106
A
B
B
A
78
79
13
106
100
70
62
72
65
71
60
71
12
112
107
120
127
B
C
D
E
B
D
C
E
67
66
32
40
58
77
29
29
77
28
28
31
33
105
92
89
116
10
16
38
89
116
89
116
17
89
116
37
89
116
17
20
34
34
34
39
39
89
116
30
30
30
19
16
56
56
55
82
82
54
109
104
89
53
93
105
110
93
105
110
99
106
111
42
123
52
49
114
105
95
43
47
48
41
51
113
93
105
110
91
105
110
93
105
110
91
105
110
92
105
110
52
52
52
52
52
104
88
114
105
96
114
105
96
123
123
123
7
8
6
114
105
95
9
124
125
116
126
89
116
x8.5
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
77.2.MTU-71E TZ軸(BHTC)
77.2.MTU-71E TZ axis(BHTC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No.
Drg. No. & Code No.
QTY Description Rating Remarks
6 BHTC0061 1 PLATE ﾌﾟﾚｰﾄ
7 BHTC0070 1 PLATE ﾌﾟﾚｰﾄ
8 BHTC0082 1 PLATE ﾌﾟﾚｰﾄ
9 BHTC0092 1 PLATE ﾌﾟﾚｰﾄ
10 BHTC0100 10 STOPPER ｽﾄｯﾊﾟ
12 BHTC0120 1 SHAFT ｼｬﾌﾄ
13 BHTC0130 1 BLOCK ﾌﾞﾛｯｸ
16 BHTC0160 20 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
17 BHTC0170 20 STOPPER ｽﾄｯﾊﾟ
18 BHTC0180 2 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
19 BHTC0620 10 PLATE ﾌﾟﾚｰﾄ
20 BHTC0201 10 PLATE ﾌﾟﾚｰﾄ
28 BHTC0280 20 SHAFT ｼｬﾌﾄ
29 BHTC0290 20 COLLAR ｶﾗｰ
30 BHTC0300 30 NUT ﾅｯﾄ
31 BHTC0311 10 BKT BKT
32 BHTC0321 11 TRAY ﾄﾚｲ
33 BHTC0331 10 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ
34 BHTC0340 30 NUT ﾅｯﾄ
37 BHTC0380 1 STOPPER ｽﾄｯﾊﾟ
38 BHTC0391 10 PLATE ﾌﾟﾚｰﾄ
39 BHTC0400 18 PLATE ﾌﾟﾚｰﾄ
40 BHTC0420 1 NAMEPLATE 銘板
41 BHTC0430 1 BKT BKT
42 BHTC0440 1 BKT BKT
43 BHTC0451 1 DOG ﾄﾞｯｸﾞ
47 BHTC0490 1 DOG ﾄﾞｯｸﾞ
48 BHTC0500 1 DOG ﾄﾞｯｸﾞ
49 BHTC0510 1 DOG ﾄﾞｯｸﾞ
51 BHTC0530 2 NUT ﾅｯﾄ
52 BHTC0540 6 NUT ﾅｯﾄ
53 BHTC0550 10 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ
54 BHTC0560 10 PIN, PIVOT ﾋﾟﾝ 支点
55 BHTC0570 10 BKT BKT
56 BHTC0580 20 SPRING ｽﾌﾟﾘﾝｸﾞ
58 BHTC0600 1 NAMEPLATE 銘板 Option
59 BHTA0150 2 STOPPER ｽﾄｯﾊﾟ
QP-242E PARTS LIST ver11
77 - 5
77.2.MTU-71E TZ軸(BHTC)
77.2.MTU-71E TZ axis (BHTC)
