QP-242E P ARTS LIST ver1 1 9 - 1 9 . ノズルチェンジ B ( * S - 6 * * ) ( * S - 7 * * ) ( B H P M ) 9 . N o z z l e c h a n g e B ( * S - 6 * * ) ( * S - 7 * * ) ( B H P M ) 9 . ノズルチェンジ B ( * S - 6 * * ) ( * S - 7 * * ) ( B H P M…

100%1 / 344
8.ノルズチェンジA(*S-6**)(*S-7**)(BHPM)
8.Nozzle change A(*S-6**)(*S-7**)(BHPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
47 BHPM1111 2 BKT BKT
48 BHPM1290 1 BLOCK ﾌﾞﾛｯｸ
49 BHPM1131 2 BAR ﾊﾞｰ
50 BHPM1141 1 BAR ﾊﾞｰ
51 BHPM1151 2 PIN ﾋﾟﾝ
52 BHPM1540 1 PIN ﾋﾟﾝ
53 BHPM1171 1 PIN ﾋﾟﾝ
54 S1021A 8 CIR-CLIP ｻｰｸﾘﾂﾌﾟ ST-EW-3
55 K5256A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X8L
56 N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
57 BHPM1320 1 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ
58 BHPM1330 1 PLATE, STIFFENING ﾌﾟﾚｰﾄ 当て
59 H5137L 2 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ STEH7
60 K5361T 1
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M5X12L
61 N4048H SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X12L
62 .
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X15L
63 . NUT, HEX ﾅｯﾄ 六角 M6 3ｼｭ
64 N4052G SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X30 棒先
65 N4020A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X5L ﾄｶﾞﾘ先
66 K5255H SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X5L
67 BHPM1550 1 PIN ﾋﾟﾝ
68 BHPM0410 2 BKT BKT
70 H5266A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M2X6L
71 BHPM0260 2 SPACER ｽﾍﾟｰｻ ･
QP-242E PARTS LIST ver11
8 - 3
8.ノルズチェンジﾞA(*S-6**)(*S-7**)(BHPM)
8.Nozzle change A(*S-6**)(*S-7**)(BHPM)
QP-242E PARTS LIST ver11
9 - 1

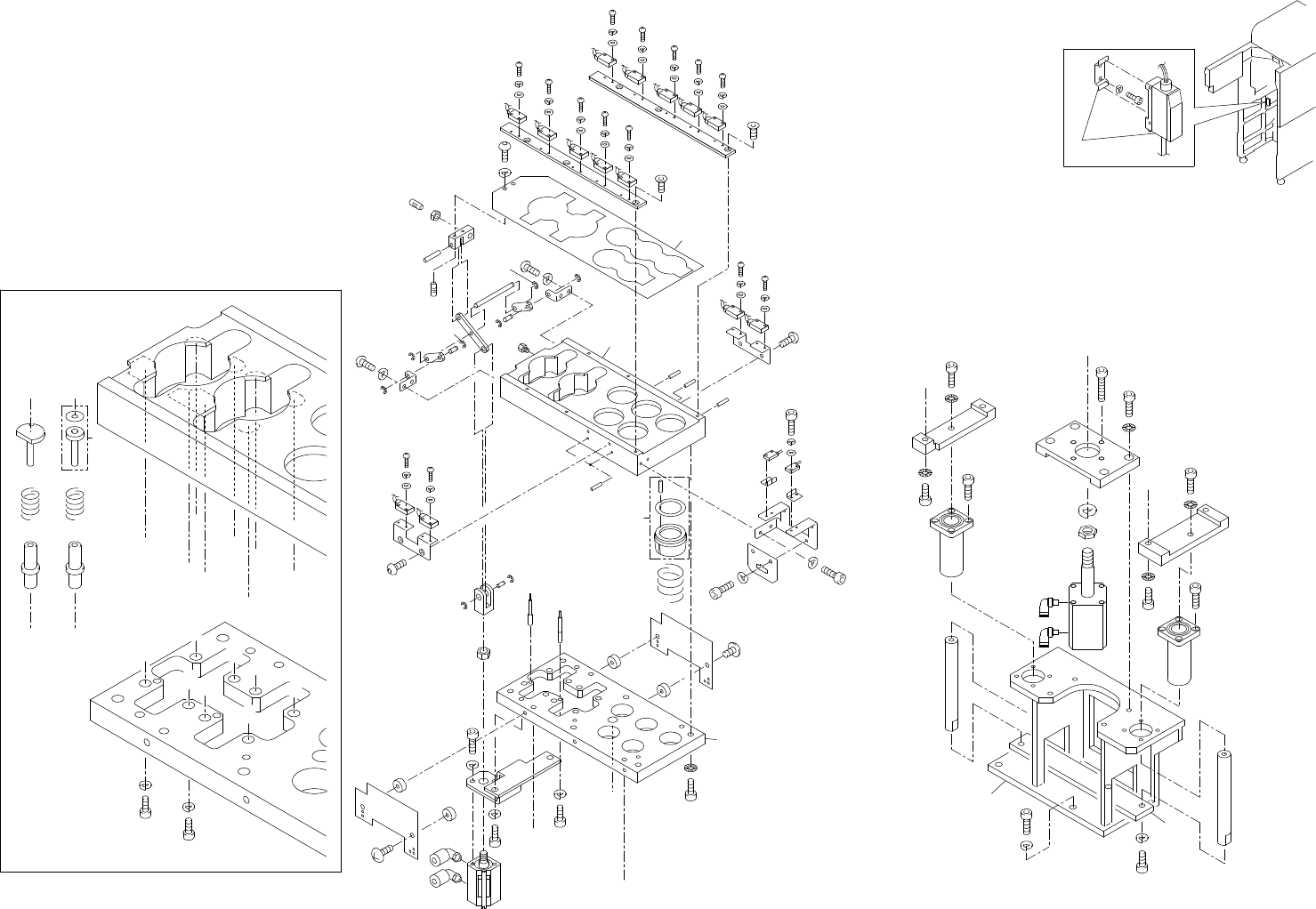

9.ノズルチェンジ B(*S-6**)(*S-7**)(BHPM)
9.Nozzle change B(*S-6**)(*S-7**)(BHPM)
9.ノズルチェンジ B(*S-6**)(*S-7**)(BHPM)
9.Nozzle change B(*S-6**)(*S-7**)(BHPM)
52
52
17
32
32
23
30
30
17
5
4
3
45
84
45
53
34
9
11
34
15
13
34
12
34
13
11
34
9
34
45
53
2
18
18
24
1
54
39
46
45
37
22
45
36
25
28
28
40
47
19
41
51
50
44
79
50
44
55
50
44
55
30
50
44
55
31
31
31
31
30
50
44
55
30
30
30
30
30
30
30
30
30
50
44
55
30
50
44
55
84
84
34
14
10
56
57
58
59
59
60
60
61
60
60
61
62
62
79
44
34
66
67
63
33
37
45
20
E
E
F
F
C
B
D
A
A
D
A
A
A
A
B
B
D
C
C
C
C
C
C
G
G
51
41
51
41
40
51
76
71
85
51
40
51
77
81
73
72
26
28
28
64
64
81
74
74
6
75
46
41
48
83
16
70
68
16
70
45
80
45
80
A
69
82
9.ノズルチェンジB(*S-6**)(*S-7**)(BHPM)
9.Nozzle change B(*S-6**)(*S-7**)(BHPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 BHPM1421 1 PLATE ﾌﾟﾚｰﾄ
2 BHPM1411 1 HOLDER ﾎﾙﾀﾞ
3 BHPM1031 1 SHUTTER ｼｬｯﾀ
4 BHPM1040 1 PLATE, GUIDE ﾌﾟﾚｰﾄ ｶﾞｲﾄﾞ
5 BHPM1050 1 PLATE, GUIDE ﾌﾟﾚｰﾄ ｶﾞｲﾄﾞ
6 BHPM1441 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ
9 BHPM1111 2 BKT BKT
10 BHPM1290 1 BLOCK ﾌﾞﾛｯｸ
11 BHPM1131 2 BAR ﾊﾞｰ
12 BHPM1141 1 BAR ﾊﾞｰ
13 BHPM1151 2 PIN ﾋﾟﾝ
14 BHPM1540 1 PIN ﾋﾟﾝ
15 BHPM1171 1 PIN ﾋﾟﾝ
16 BHPM1360 8 SPRING ｽﾌﾟﾘﾝｸﾞ
17 BHPM1241 2 BKT, SENSOR BKT ｾﾝｻ
18 BHPM1400 2 PIN, WHIRL STOP ﾋﾟﾝ 回止め
19 BHPM1430 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ
20 ABHPM0450 5 PISTON ﾋﾟｽﾄﾝ
22 BHPM0170 1 BKT BKT
23 BHPM0181 1 BKT, SENSOR BKT ｾﾝｻ
24 BHPM0191 5 SPRING ｽﾌﾟﾘﾝｸﾞ
25 S2100Z 1
CYLINDER, AIR
ｼﾘﾝﾀﾞ ｴｱｰ CDQ2A-12-15DM-A73L
26 S21004 1
CYLINDER, AIR
ｼﾘﾝﾀﾞ ｴｱｰ CDQSB25-30DCM-A93L
28 Y3079N 4
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5
30 S4028T 7
SENSOR
ｾﾝｻ EX-11EA-R-C2
31 R5005A 5 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ ﾟ1.5X6.8L
32 S3135A 1 SW, PHOTOELECTRIC SW 光電 PS-52
33 A1040H 1
AMPLIFIER
ｱﾝﾌﾟ PS2-61
34 S1021A 8 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-3
36 H5273A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X5L
37 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
39 H5288A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
40 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L
41 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
42 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X12L
43 H5341A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X20L
44 W1020A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2M/M
QP-242E PARTS LIST ver11
9 - 2
9.ノズルチェンジB(*S-6**)(*S-7**)(BHPM)
9.Nozzle change B(*S-6**)(*S-7**)(BHPM)
