26.1.画像処理ｶﾒﾗ(**-**7)(BHGC) 26.1.Vision processing camera(**-**7)(BHGC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code. No. QTY Description Rating Remarks 1 BHGC0080 1 SCREW, ADJUSTING ﾈｼﾞ 調整 2 BHGC2011 1 BKT BKT 3…
QP-242E PARTS LIST ver11
26 - 1

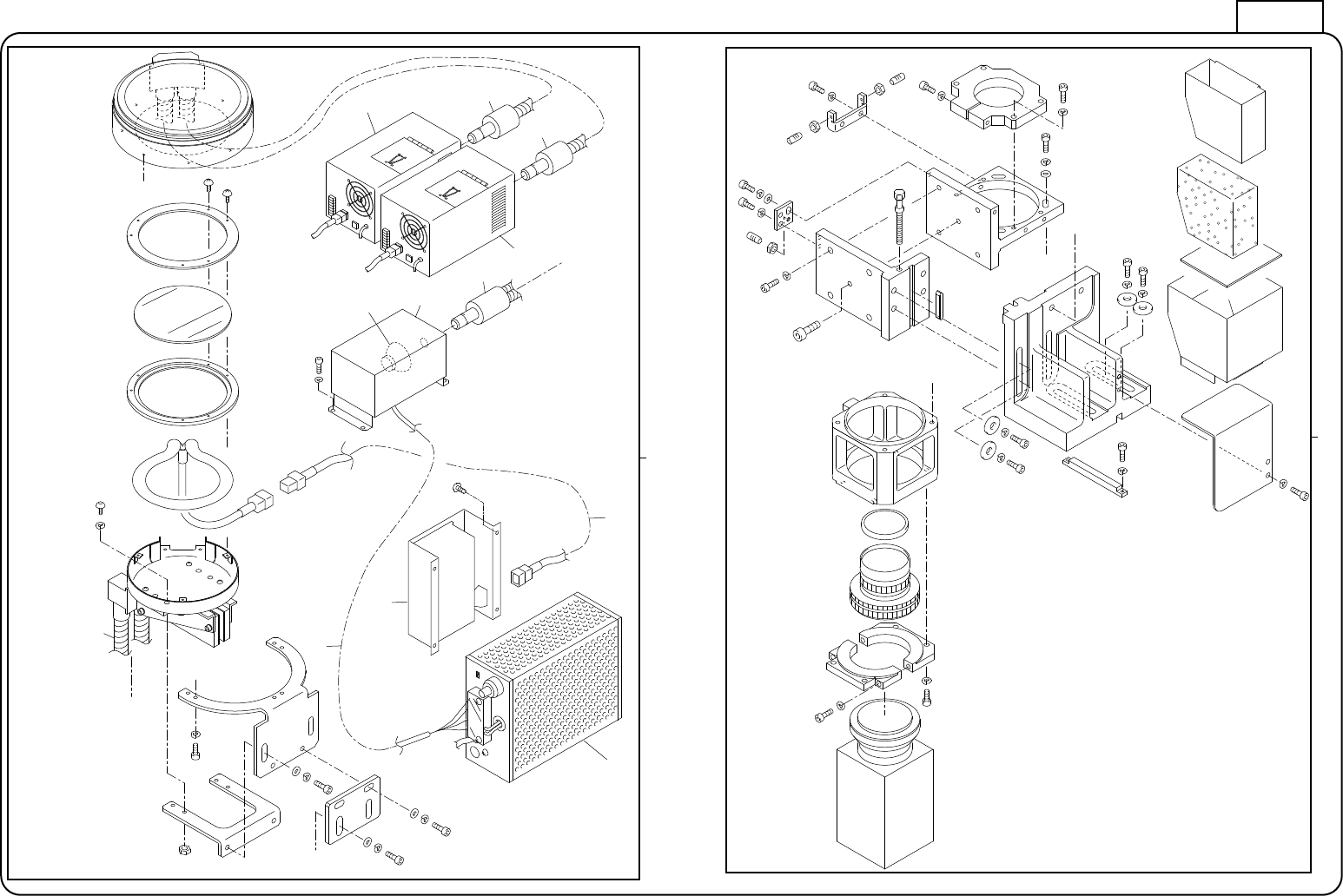

26.1.画像処理カメラ(**-**7)(BHGC)
26.1.Vision processing camera(**-**7)(BHGC)
26.1.画像処理カメラ(**-**7)(BHGC)
26.1.Vision processing camera(**-**7)(BHGC)
(**-**7)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
ABHGC8530 ABHGC8102
ABHGC8550 ABHGC8130
ABHGC8580
ABHGC8590
67
66
65
68
64
34
72
31
∼□92.16 LINE Type7
x5
73
74
79
79
30
30
29
28
78
77
76
75
2
3
61
19
20
15
18
15
15
15
17
1
5
6
4
9
10
33
22
26
35
23
38
51
11
63
52
55
46
53
56
53
47
53
47
36
50
51
38
50
36
47
53
53
47
51
40
41
51
54
51
39
60
58
57
59
59
57
51
37
39
51
54
52
45
51
39
52
44
B
B
C
C
24
30
27
25
16
14
59
42
55
52
43
48
50
D
D
A
A
49
49
31
32
∼□92.16 LINE Type7
12
71
13
69
70
26.1.画像処理ｶﾒﾗ(**-**7)(BHGC)
26.1.Vision processing camera(**-**7)(BHGC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No.
Drg.No. & Code. No.
QTY Description Rating Remarks
1 BHGC0080 1 SCREW, ADJUSTING ﾈｼﾞ 調整
2 BHGC2011 1 BKT BKT
3 BHGC2021 1 BKT BKT B*-**7,FS-**7
4 BHGC2032 1 BKT BKT
5 BHGC2070 1 BKT BKT
6 BHGC2080 1 HOUSING ﾊｳｼﾞﾝｸﾞ
9 BHGC2120 1 PLATE ﾌﾟﾚｰﾄ
10 BHGC2130 1 BKT BKT
11 BHGC2140 1 BKT BKT B*-**7,FS-**7
12 BHGC4271 1 SHEET, RUBBER ｼｰﾄ ｺﾞﾑ
13 BHGC4300 1 BOX BOX
14 BHGC4310 1 BKT BKT
15 EM42301 8 WASHER, FLAT ﾜｯｼｬ 平
16 ICA0110 1 BOLT ﾎﾞﾙﾄ
17 JRG0391 1 KEY ｷｰ
18 KCA0110 1 KEY ｷｰ
19 QCA1110 1 PLATE ﾌﾟﾚｰﾄ
20 QCA1420 1 RING, TIGHTENING ﾘﾝｸﾞ 締め付け
22 QCA1550 1 RING, TIGHTENING ﾘﾝｸﾞ 締付け
23 H3025Z 1 FILTER ﾌｨﾙﾀ MC-43
24 H3194M 1 PLATE, DISPERSION ﾌﾟﾚｰﾄ 拡散 110B-DF-02
25 H5056D 1 HOLDER ﾎﾙﾀﾞ 2054-192-108A
26 K11270 1 CAMERA, IMAGE SENSOR ｶﾒﾗ ｲﾒｰｼﾞｾﾝｻ SCD-2048-20-FK
27 K1162A 1 COVER, GLASS ｶﾊﾞｰ ｶﾞﾗｽ 2053-192-108A
28 K40175 1 CABLE ｹｰﾌﾞﾙ FHF-LH100-KA Short type
29 K4185A 1 CABLE ｹｰﾌﾞﾙ FHF-LH100-KA6M Long type
30 R1019D 1 LAMP ﾗﾝﾌﾟ PR90-2700-FK2
31 R1019H 1 LAMP ﾗﾝﾌﾟ FMD-92L(45)-3M Long type
32 R1019M 1 LAMP ﾗﾝﾌﾟ FMD-92L(45)-300 Short type
33 R1020S 1 LAMP ﾗﾝﾌﾟ 92B-N-EX-T-02
34 R1025T 1 LAMP, HALOGEN ﾗﾝﾌﾟ ﾊﾛｹﾞﾝ LH100-SH05
35 R4034A 1 LENS ﾚﾝｽﾞ #1181
36 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L
37 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L
38 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L
39 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X15L
40 H5293A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X25L
QP-242E PARTS LIST ver11
26 - 2
26.1.画像処理ｶﾒﾗ(**-**7)(BHGC)
26.1.Vision processing camera(**-**7)(BHGC)
26.1.画像処理ｶﾒﾗ(**-**7)(BHGC)
26.1.Vision processing camera(**-**7)(BHGC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No.
Drg.No. & Code. No.
QTY Description Rating Remarks
41H5296A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X40L
42H5297A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X8L
43H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L
44H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X20L
45H5306A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X35L
46H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X20L
47H5327A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X30L
48. SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X16L
49. SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M2X8L
50W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
51W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
52W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
53W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
54W1043A
WASHER, FLAT
ﾜｯｼｬ 平
4W-4
55W1044A
WASHER, FLAT
ﾜｯｼｬ 平
4W-5
56W1045A
WASHER, FLAT
ﾜｯｼｬ 平
4W-6
57N4025Z
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M3X20
58N4031A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M4X10
59N1076A
NUT, HEX
ﾅｯﾄ 六角
M3 P=0.5
60N1080A
NUT, HEX
ﾅｯﾄ 六角
M4 P=0.7
61BHGC2090 1 BKT BKT FI-**7
63BHGC2160 1 BKT BKT FI-*7*,**7
64ABHGC8042 1 CAMERA ｶﾒﾗ
65ABHGC8520 1 LAMP ﾗﾝﾌﾟ B*-**7,FS-**7
66ABHGC8540 1 LAMP ﾗﾝﾌﾟ FI-**7
67ABHGC8580 1 LAMP ﾗﾝﾌﾟ B*-**7,FS-**7(Long cable type)
68ABHGC8590 1 LAMP ﾗﾝﾌﾟ FI-**7(Long cable type)
69BHGC4340 1 BOX BOX part for Flux unit
70BHGC4350 1 BOX BOX part for Flux unit
71BHGC4360 1 PAD ﾊﾟﾂﾄ part for Flux unit
72R1026T 1 LAMP, HALOGEN ﾗﾝﾌﾟ ﾊﾛｹﾞﾝ LM-100
73H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L
74W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
75H51185 1 VARIABLE RESISTOR ﾎﾞﾘｭｰﾑ FHF-PS100C-294B
76H5463A 1 BOX, POWER SUPPLY BOX 電源 EF41024NCA-02
77K5170T
SCREW, C/R TRUSS
小ﾈｼﾞ 十穴ﾄﾗｽ M3X6L
78K4018H 1 CABLE ｹｰﾌﾞﾙ HF8014M-Fu-02
QP-242E PARTS LIST ver11
26 - 3
26.1.画像処理ｶﾒﾗ(**-**7)(BHGC)
26.1.Vision processing camera(**-**7)(BHGC)
79R1025H 2 LAMP, HALOGEN ﾗﾝﾌﾟ ﾊﾛｹﾞﾝ ELI100J-CE-005
