GCU_20211123_100037.pdf
GCU Page 1 / 2 23.11.2021
GCU
Page 1 / 2 23.11.2021
GCU
Page 2 / 2 23.11.2021

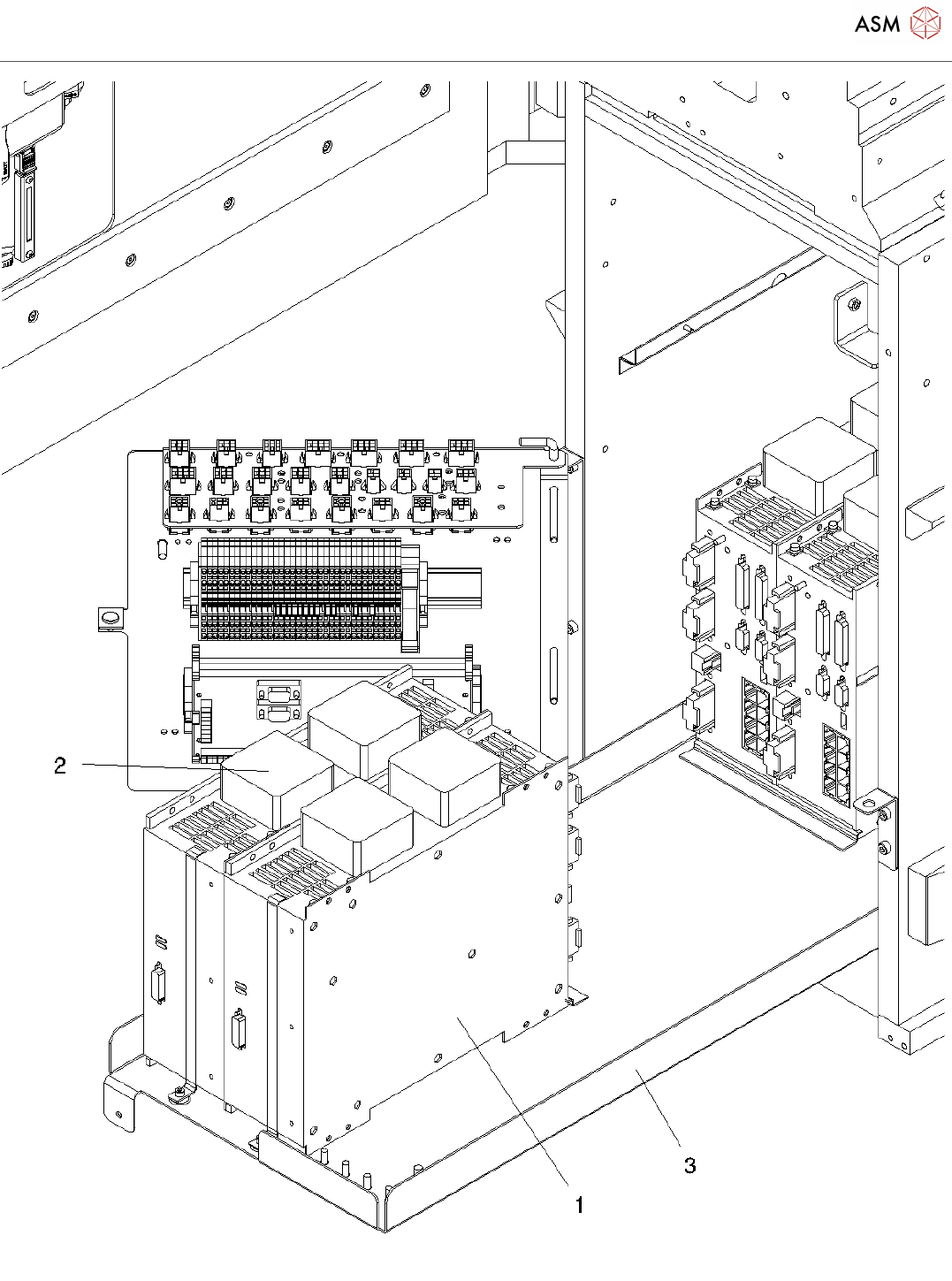

Pos. Item no. Description Part marking
1 03052200S07 GANTRY-CONTROL-UNIT GCU SPARE PART
03060950-03 CONTROL MODULE GCU-CM CPL.
03060952-02 POWER MODULE GCU-PM
03075811-01 SUB MODULE 1 GCU
03075812-02 SUB MODULE 2 GCU
03075813-01 DIAGNOSIS INTERFACE
2 03060954-02 FAN GCU SPARE PART
3 03082150-02 DRAWER GCU SX4 CPL.
03075240-02 SLIDING PLATE GCU SX4
03075236-02 GCU SLIDER PLATE
03075254-02 BRACKET FOR GCU POSITION
00367968-01 PEM NUT
03082140-01 HOLDER FOR GCU BEHIND CPL.
03084914-01 EDGE PROTECTION
