Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8816 SADDLE 1 648CF-11B-004 1CC2FC2000292
2 616 125 8809 HOLDER 1 648CF-11B-003 1CC2FC0506993
3 630 001 0237 WASHER 2 BW6
4 411 141 3001 WASHER SPR 6 2 SW6
5 630 000 7916 BOLT,HEX-SCT 2 M6X30
6 630 059 1354 UNIT,CAMERA 1 648CF-11H-501
7 630 063 2781 SCOPE UNIT 1 648CF-11H-503
8 616 121 7400 INSULATOR 1 648CF-11B-009 1CC2CH1000040
9 616 125 8823 HOLDER 1 648CF-11B-008 1CC2FC0507631
10 616 111 9568 PLATE NUT 2 648CF-11B-007 1CC2SA1500820
11 616 121 7370 HOLDER 1 648CF-11B-006 1CC2FC0507620
12 630 001 0213 WASHER 2 BW4
13 411 141 2905 WASHER SPR 4 2 SW4
14 630 000 7664 BOLT,HEX-SCT 2 M4X20
15 411 141 3902 WASHER V 3X7X0.5 1 FW3
16 411 141 2806 WASHER SPR 3 1 SW3
17 411 140 9905 NUT HEX 3 1 M3
18 630 000 7572 BOLT,HEX-SCT 1 M3X25
19 616 121 7455 BUSH 4 648CF-11H-504 1CC4S60500220
20 411 141 3902 WASHER V 3X7X0.5 4 FW3
21 411 141 2806 WASHER SPR 3 4 SW3
22 630 000 7558 BOLT,HEX-SCT 4 M3X16
23 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
24 411 141 3001 WASHER SPR 6 2 SW6
25 630 000 7909 BOLT,HEX-SCT 2 M6X25
26 616 125 8793 BLOCK 1 648CF-11B-001 1CC2FB1002774
27 630 000 7671 BOLT,HEX-SCT 2 M4X25
28 616 112 1974 MIRROR 1 648CG-11H-502 1CC2FK3000010
29 616 125 7529 SADDLE 1 648CG-11B-105 1CC2FC2000200
29 -1 616 125 7536 SADDLE 1 648CG-11B-110 1CC2FC2000210
30 411 141 3902 WASHER V 3X7X0.5 4 FW3
31 411 141 2806 WASHER SPR 3 4 SW3
32 630 000 7503 BOLT,HEX-SCT 4 M3X6
33 630 000 7787 BOLT,HEX-SCT 2 M5X25
34 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
35 411 141 3001 WASHER SPR 6 2 SW6
36 630 000 7916 BOLT,HEX-SCT 2 M6X30
NOTE
9-1
9703-001
MODEL TIM-1000L

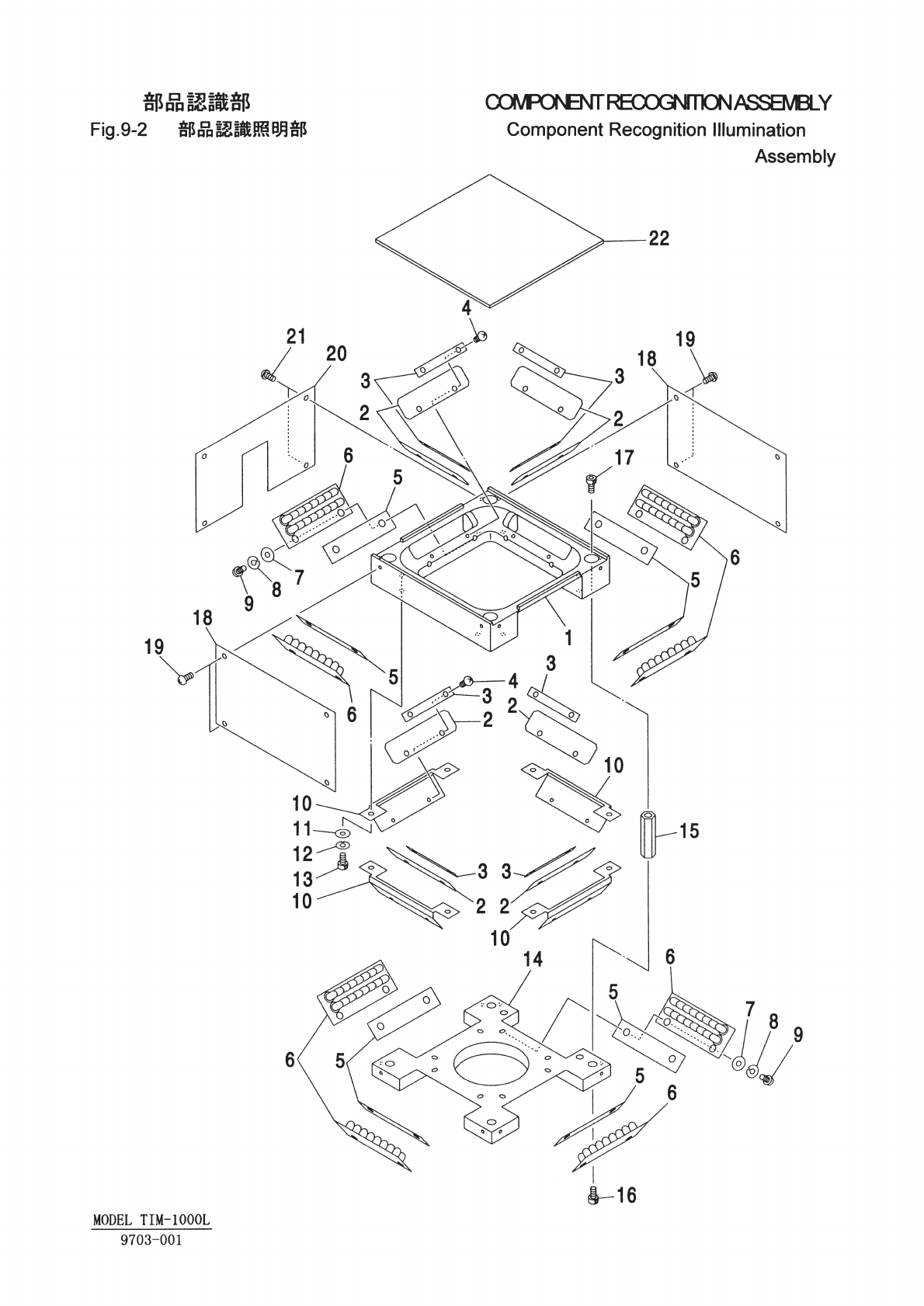

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 7444 BLOCK 1 648CG-11B-011 1CC2FB1002541
2 616 125 7468 PLATE 8 648CG-11B-013 1CC2FB0505460
3 616 125 7451 PLATE 8 648CG-11B-012 1CC2FB0505450
4 411 173 5301 SCR TRS 2X4 16 M2X4 TRS
5 616 125 7543 COVER 8 648CG-11B-126 1CC2CA0503140
6 616 121 5086 PRINTED BOARD 8 648GL-11D-504 1CC4B18000050
7 411 141 3704 WASHER V 2.5X6.5X0.5 16 FW2.5 F
8 411 141 2707 WASHER SPR 2.5 16 SW2.5 F
9 411 173 5400 SCR PAN 2.6X6 16 M2.6X6 PAN
10 616 125 7505 PLATE 4 648CG-11B-024 1CC2FB0505470
11 411 141 3803 WASHER V 2.5X6.5X0.5 8 FW2.5
12 411 141 6606 WASHER SPR 2.5 8 SW2.5
13 630 069 8985 BOLT,HEX-SCT 8 M2.6X12
14 616 125 7499 BLOCK 1 648CG-11B-023 1CC2FB1002551
15 616 121 7578 POST 4 648CG-11H-503 1CC2FF1501041
16 630 000 7626 BOLT,HEX-SCT 4 M4X10
17 630 000 7657 BOLT,HEX-SCT 4 M4X16
18 616 125 7475 COVER 3 648CG-11B-015 1CC2CA0503880
19 411 173 5301 SCR TRS 2X4 12 M2X4 TRS
20 616 125 7482 COVER 1 648CG-11B-021 1CC2CA0503891
21 411 173 5301 SCR TRS 2X4 4 M2X4 TRS
22 616 125 7512 COVER 1 648CG-11B-031 1CC2CA0504460
NOTE
9-2
9703-001
MODEL TIM-1000L
