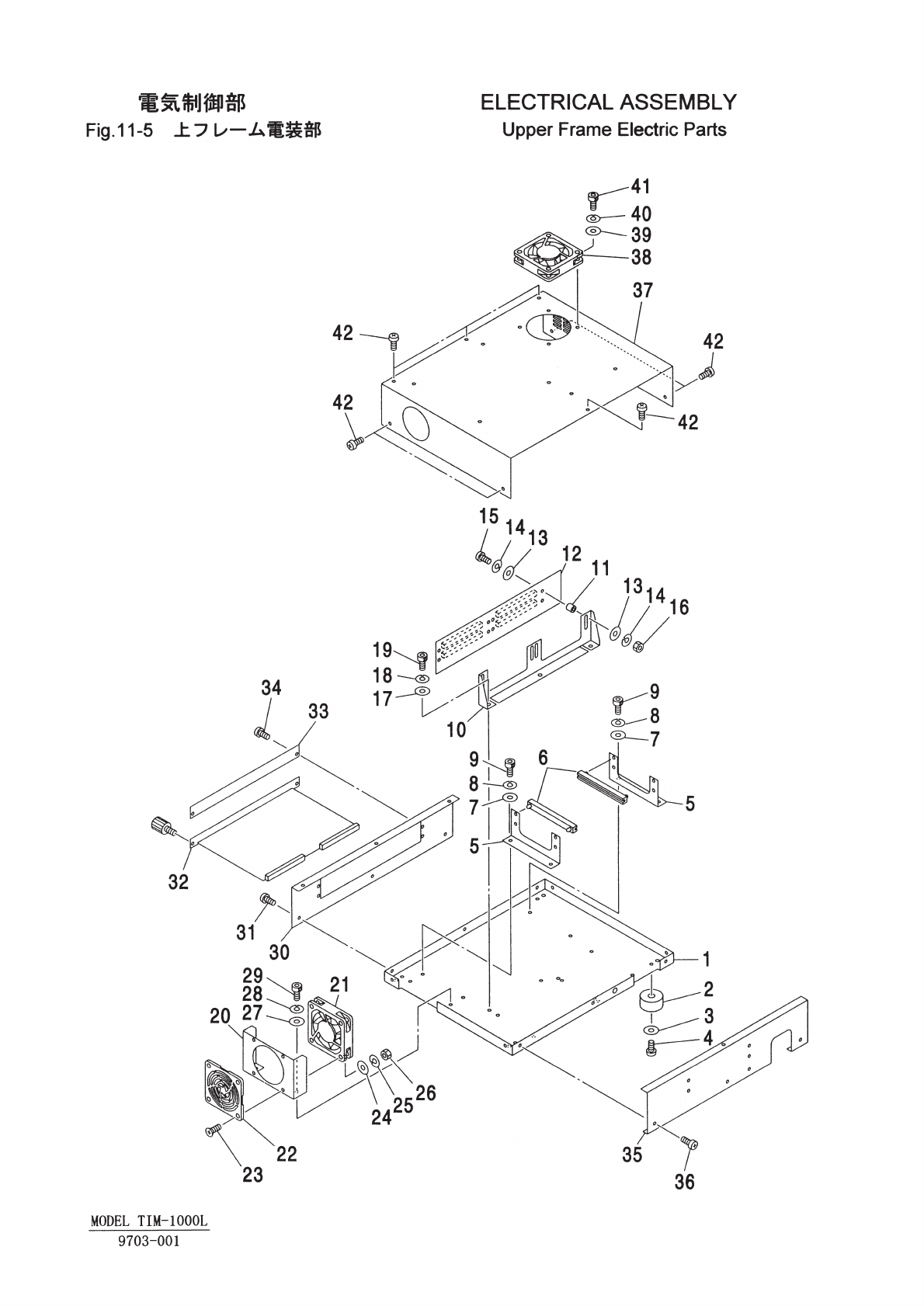

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No. 1 616 125 8021 BRACKET 1 648BC-11B-015 1CC2FC1005104 2 616 122 3678 FOOT 4 648GJ-11H-505 1CC2CG0500330 3 411 119 1909 WASHER V 3X7X0.5 4 FW3 F 4 411 041 8908 SC…
Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8021 BRACKET 1 648BC-11B-015 1CC2FC1005104
2 616 122 3678 FOOT 4 648GJ-11H-505 1CC2CG0500330
3 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
4 411 041 8908 SCR PAN 3X6 4 M3X6 PAN
5 616 122 3623 BRACKET 2 648GJ-11B-006 1CC2FC1005560
6 616 121 5918 GUIDE RAIL 2 648GK-11D-503 1CC4J34500050
7 411 141 4008 WASHER V 4X9X0.8 4 FW4
8 411 141 2905 WASHER SPR 4 4 SW4
9 630 000 7619 BOLT,HEX-SCT 4 M4X8
10 616 122 3616 BRACKET 1 648GJ-11B-005 1CC2FC1005550
11 616 121 5598 SPACER 8 648GJ-11H-501 1CC4S60500140
12 630 055 3710 P.C.B,MOUNT 1 648GK-11U-502
13 411 141 3704 WASHER V 2.5X6.5X0.5 8 FW2.5 F
14 411 141 2707 WASHER SPR 2.5 8 SW2.5 F
15 630 000 7480 BOLT,HEX-SCT 8 M2.5X12
16 411 140 9608 NUT HEX 2.5 8 M2.5
17 411 141 4008 WASHER V 4X9X0.8 3 FW4
18 411 141 2905 WASHER SPR 4 3 SW4
19 630 000 7619 BOLT,HEX-SCT 3 M4X8
20 616 122 3630 BRACKET 2 648GJ-11B-007 1CC2FC1005570
21 616 122 3654 COOLING FAN 1 648GJ-11H-503 1CC4U2A100210
22 616 122 3661 FILTER(FAN) 1 648GJ-11H-504 1CC2BC1600030
23 411 140 7109 SCR FLT 3X12 4 M3X12 FLT
24 411 141 3902 WASHER V 3X7X0.5 4 FW3
25 411 141 2806 WASHER SPR 3 4 SW3
26 411 140 9905 NUT HEX 3 4 M3
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
30 616 122 3593 PANEL 1 648GJ-11B-003 1CC2CA1000220
31 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
32 630 055 3680 P.C.B,MOUNT 1 648GK-11U-501
33 616 122 3647 COVER 1 648GJ-11B-008 1CC2CA0504920
34 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
35 616 122 3586 PANEL 1 648GJ-11B-002 1CC2CA1000210
36 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
37 630 055 4021 COVER(TOP) 1 648GJ-11B-004
38 616 122 3654 COOLING FAN 1 648GJ-11H-503 1CC4U2A100210
39 411 141 4008 WASHER V 4X9X0.8 4 FW4
40 411 141 2905 WASHER SPR 4 4 SW4
41 630 000 7626 BOLT,HEX-SCT 4 M4X10
42 411 051 1708 SCR TRS 4X6 8 M4X6 TRS
NOTE
11-5
9703-001
MODEL TIM-1000L
