Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.

1 616 121 6786 PLATE 1 648BE-11B-008 1CC2FB0506371

2 616 121 5222 CONNECTOR 1 648HB-11D-505 1CC4J13000230

2 -1 616 121 5239 CONNECTOR 1 648HB-11D-506 1CC4J13000220

3 411 002 2600 SCR FLT 3X6 3 M3X6 FLT

4 616 121 5208 CONNECTOR 2 648HB-11D-503 1CC4J13000210

4 -1 616 121 5215 CONNECTOR 2 648HB-11D-504 1CC4J13000200

5 411 002 2600 SCR FLT 3X6 6 M3X6 FLT

6 616 121 4942 CONNECTOR 2 648HB-11D-501 1CC4J13000190

6 -1 616 121 4959 CONNECTOR 2 648HB-11D-502 1CC4J13000180

7 411 002 2600 SCR FLT 3X6 6 M3X6 FLT

8 411 141 4107 WASHER V 5X10X1 2 FW5

9 411 141 6705 WASHER SPR 5 2 SW5

10 630 000 7749 BOLT,HEX-SCT 2 M5X10

11 616 121 7110 UNION 2 648BE-11H-522 1CC2BD5000100

NOTE

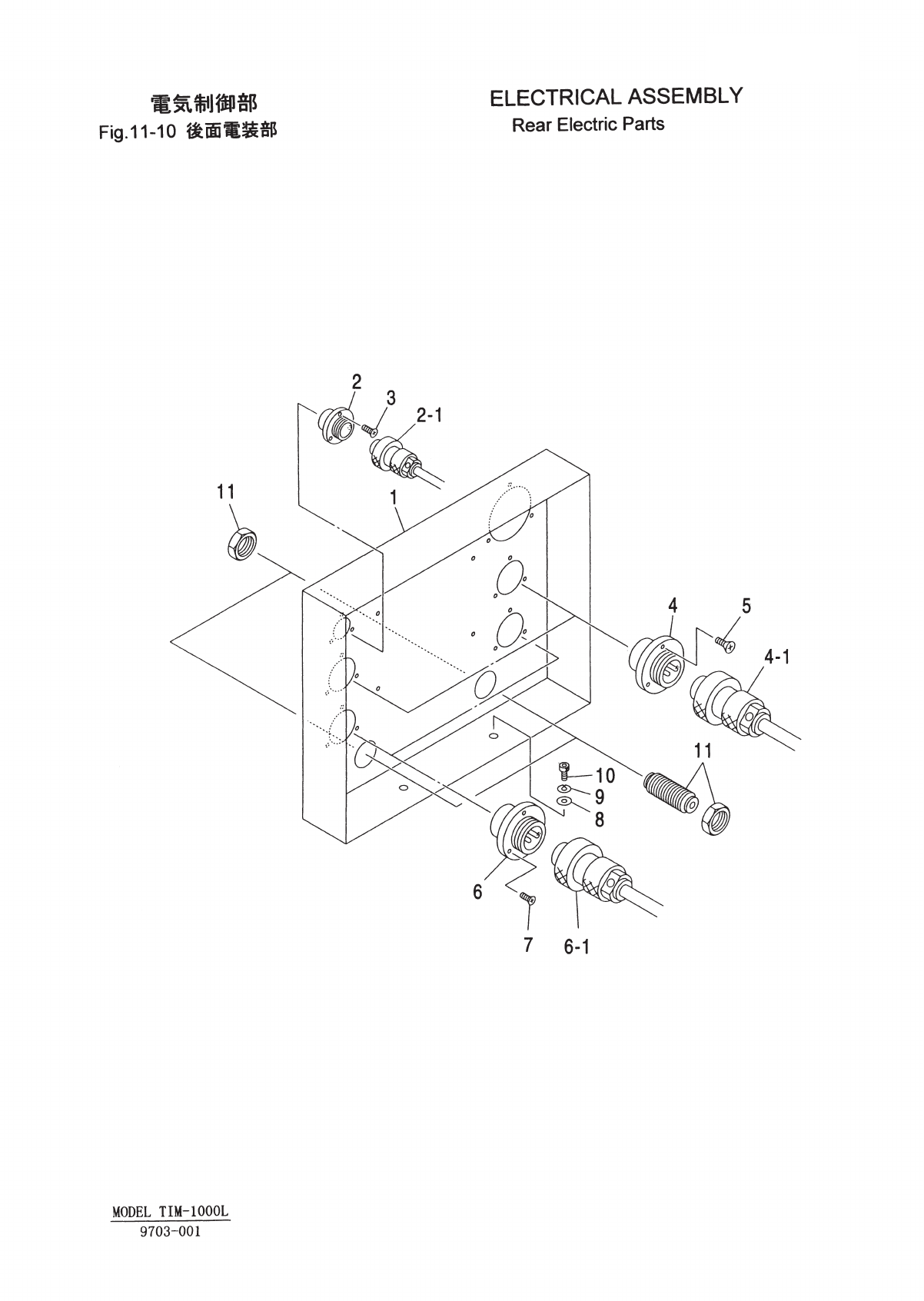

11-10

9703-001

MODEL TIM-1000L
