Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No. 1 616 125 9455 C.R.T(MONITOR) 1 648GK-11D-505 1CC4U34000091 2 616 125 8250 BASE 1 648BC-11B-055 1CC2FA1001824 3 411 113 3602 SCR PAN 6X12 6 M6X12 PAN 4 616 125 …

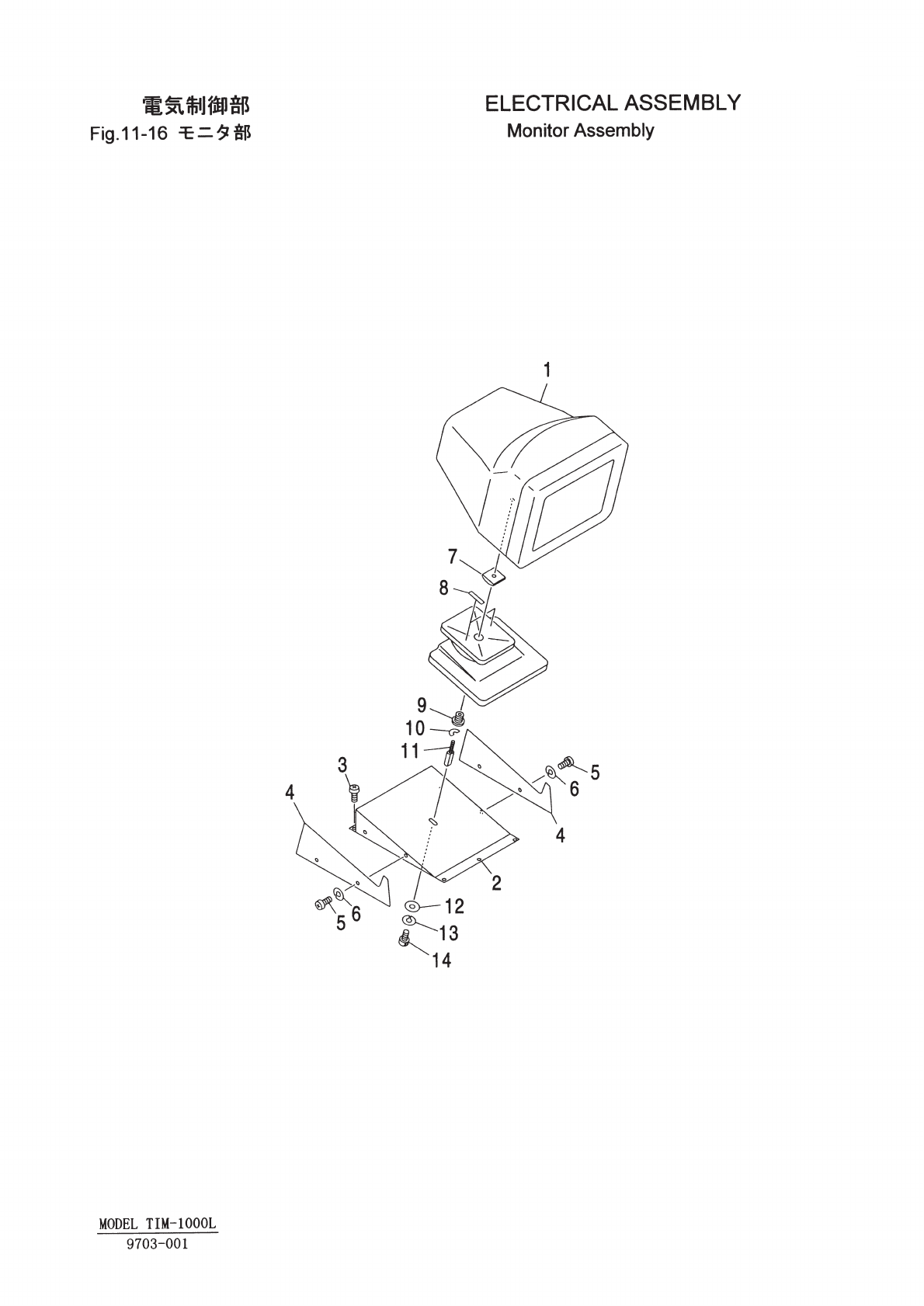

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 9455 C.R.T(MONITOR) 1 648GK-11D-505 1CC4U34000091
2 616 125 8250 BASE 1 648BC-11B-055 1CC2FA1001824
3 411 113 3602 SCR PAN 6X12 6 M6X12 PAN
4 616 125 8335 COVER 2 648BC-11B-080 1CC2CA0505900
5 411 113 2803 SCR PAN 5X8 4 M5X8 PAN
6 411 008 2109 WASHER SPR 5 4 SW5 F
7 616 125 8298 WASHER 1 648BC-11B-076 1CC2SB0502120
8 616 125 8267 CUSHION 2 648BC-11B-057 1CC2FJ1500601
9 616 125 8304 SCREW 1 648BC-11B-077 1CC2SA0502541
10 616 125 8311 SPACER 1 648BC-11B-078 1CC2FF0502640
11 616 125 8328 SCREW 1 648BC-11B-079 1CC2SA0502550
12 411 141 4107 WASHER V 5X10X1 1 FW5
13 411 141 6705 WASHER SPR 5 1 SW5
14 630 000 7763 BOLT,HEX-SCT 1 M5X16
NOTE
11-16
9703-001
MODEL TIM-1000L
