Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8472 COVER 1 648BE-11B-020 1CC2CA0504762
2 616 121 7219 MAGNET CATCH 2 648BE-11H-535 1CC2FG1000080
3 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
4 411 086 4408 WASHER SPR 3 4 SW3 F
5 411 042 0703 SCR PAN 3X8 4 M3X8 PAN
6 616 125 8489 HOLDER 2 648BE-11B-025 1CC2FC0506871
7 411 141 4107 WASHER V 5X10X1 4 FW5
8 411 141 6705 WASHER SPR 5 4 SW5
9 630 000 7749 BOLT,HEX-SCT 4 M5X10
10 411 141 4107 WASHER V 5X10X1 4 FW5
11 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
12 616 121 6946 HOLDER 1 648BE-11B-026 1CC2FC0506881
13 411 141 4107 WASHER V 5X10X1 3 FW5
14 411 141 6705 WASHER SPR 5 3 SW5
15 630 000 7749 BOLT,HEX-SCT 3 M5X10
16 616 121 6892 COVER 1 648BE-11B-021 1CC2CA0504771
17 616 121 6960 BRACKET 1 648BE-11B-028 1CC2FC1005251
18 411 141 4008 WASHER V 4X9X0.8 2 FW4
19 411 141 2905 WASHER SPR 4 2 SW4
20 630 000 7626 BOLT,HEX-SCT 2 M4X10
21 616 121 6915 COVER 1 648BE-11B-023 1CC2CA0504790
22 616 121 6908 COVER 1 648BE-11B-022 1CC2CA0504780
23 411 141 4008 WASHER V 4X9X0.8 1 FW4
24 411 141 2905 WASHER SPR 4 1 SW4
25 630 000 7626 BOLT,HEX-SCT 1 M4X10
26 616 121 9725 BRACKET 1 648GH-11B-007 1CC2FC1005540
27 411 113 9109 SCR TRS 5X10 2 M5X10 TRS
28 411 113 9109 SCR TRS 5X10 10 M5X10 TRS
29 411 141 4107 WASHER V 5X10X1 2 FW5
30 411 141 6705 WASHER SPR 5 2 SW5
31 630 000 7749 BOLT,HEX-SCT 2 M5X10
32 616 121 6922 COVER 2 648BE-11B-024 1CC2CA0504801
33 411 141 4107 WASHER V 5X10X1 16 FW5
34 411 113 9109 SCR TRS 5X10 16 M5X10 TRS
NOTE
12-2
9703-001
MODEL TIM-1000L

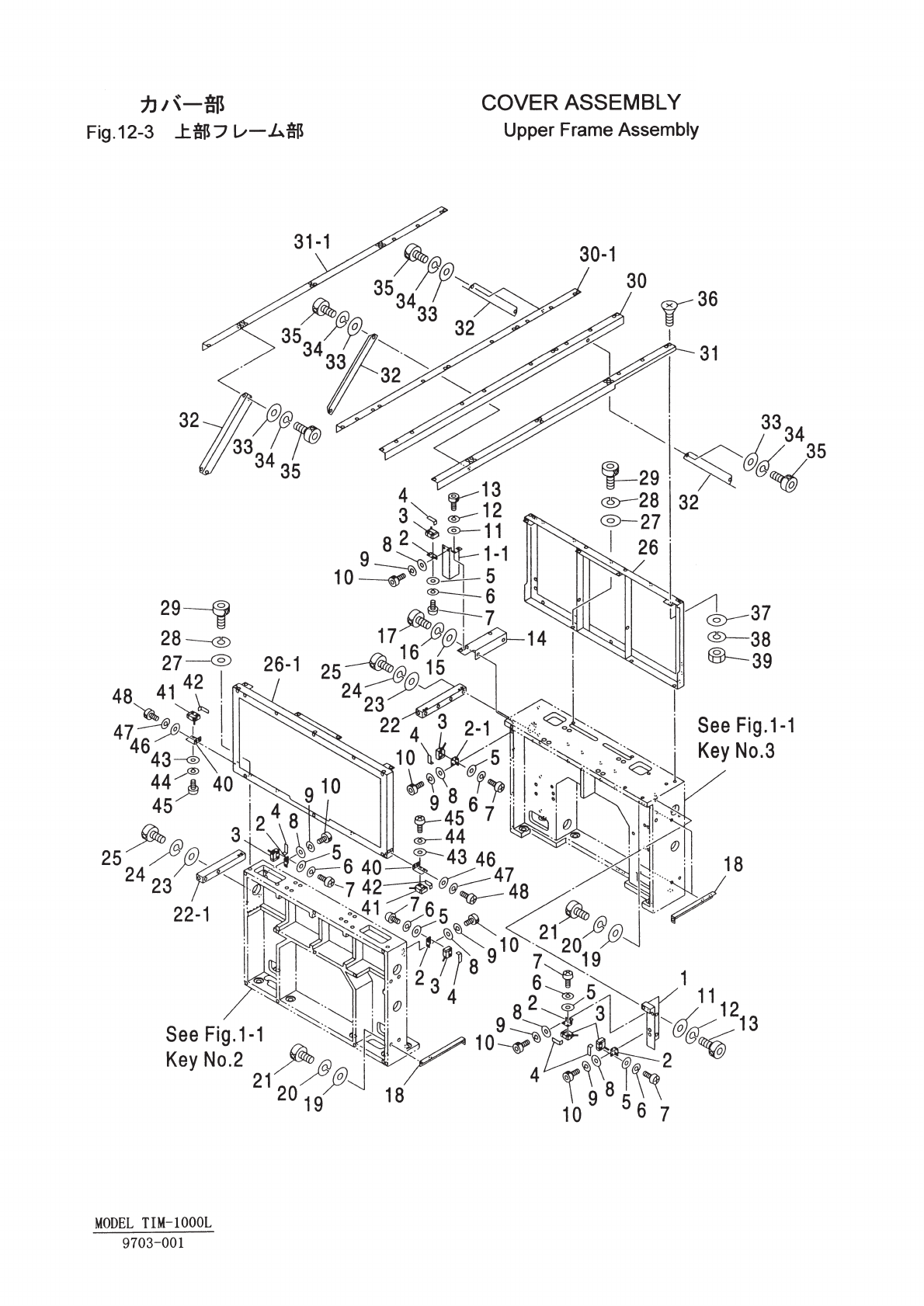

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 121 6151 BRACKET 1 648BC-11B-027 1CC2FC1005141
1 -1 616 125 8090 BRACKET 1 648BC-11B-028 1CC2FC1005152
2 616 121 6175 BRACKET 5 648BC-11B-029 1CC2FC1005162
2 -1 616 121 6304 BRACKET 1 648BC-11B-042 1CC2FC1005181
3 616 121 6571 PHOTO SWITCH 6 648BC-11H-508 1CC4V23000740
4 616 121 6588 SENSOR SLIT 6 648BC-11H-509 1CC4V28700090
5 411 119 1909 WASHER V 3X7X0.5 12 FW3 F
6 411 086 4408 WASHER SPR 3 12 SW3 F
7 411 042 0703 SCR PAN 3X8 12 M3X8 PAN
8 630 001 0213 WASHER 12 BW4
9 411 141 2905 WASHER SPR 4 12 SW4
10 630 000 7619 BOLT,HEX-SCT 12 M4X8
11 411 141 4107 WASHER V 5X10X1 4 FW5
12 411 141 6705 WASHER SPR 5 4 SW5
13 630 000 7763 BOLT,HEX-SCT 4 M5X16
14 616 125 8083 BRACKET 1 648BC-11B-024 1CC2FC1005131
15 411 141 4503 WASHER V 8X17X1.6 2 FW8
16 411 141 3100 WASHER SPR 8 2 SW8
17 630 000 8005 BOLT,HEX-SCT 2 M8X16
18 616 125 8182 BRACKET 4 648BC-11B-045 1CC2FC1005722
19 411 141 4107 WASHER V 5X10X1 8 FW5
20 411 141 6705 WASHER SPR 5 8 SW5
21 630 000 7763 BOLT,HEX-SCT 8 M5X16
22 616 125 8199 BRACKET 1 648BC-11B-046 1CC2FC1005732
22 -1 616 125 8205 BRACKET 1 648BC-11B-047 1CC2FC1005742
23 411 141 4503 WASHER V 8X17X1.6 4 FW8
24 411 141 3100 WASHER SPR 8 4 SW8
25 630 000 8005 BOLT,HEX-SCT 4 M8X16
26 616 125 8144 ANGLE 1 648BC-11B-036 1CC2FD1500701
26 -1 616 125 8137 ANGLE 1 648BC-11B-035 1CC2FD1500691
27 411 141 4503 WASHER V 8X17X1.6 7 FW8
28 411 141 3100 WASHER SPR 8 7 SW8
29 630 000 8005 BOLT,HEX-SCT 7 M8X16
30 616 125 8113 ANGLE 1 648BC-11B-032 1CC2FD1500661
30 -1 616 125 8120 ANGLE 1 648BC-11B-033 1CC2FD1500671
31 616 125 8106 ANGLE 1 648BC-11B-031 1CC2FD1500651
31 -1 616 121 6229 ANGLE 1 648BC-11B-034 1CC2FD1500682
32 616 124 6080 ANGLE 4 648BC-11B-067 1CC2FD1500750
33 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
34 411 141 3001 WASHER SPR 6 8 SW6
35 630 000 7862 BOLT,HEX-SCT 8 M6X10
36 630 000 7763 BOLT,HEX-SCT 8 M5X16
37 411 141 4107 WASHER V 5X10X1 8 FW5
38 411 141 6705 WASHER SPR 5 8 SW5
39 411 141 0505 NUT HEX 5 8 M5
40 616 121 6304 BRACKET 2 648BC-11B-042 1CC2FC1005181
41 616 121 6571 PHOTO SWITCH 2 648BC-11H-508 1CC4V23000740
42 616 121 6588 SENSOR SLIT 2 648BC-11H-509 1CC4V28700090
43 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
44 411 086 4408 WASHER SPR 3 4 SW3 F
NOTE
12-3
9703-001
MODEL TIM-1000L
