Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.

1 616 121 8445 PLATE 1 648ED-11B-015 1CC2FB0507082

2 616 121 8452 PLATE 4 648ED-11B-016 1CC2FB0507090

3 411 141 4008 WASHER V 4X9X0.8 8 FW4

4 411 141 2905 WASHER SPR 4 8 SW4

5 630 000 7626 BOLT,HEX-SCT 8 M4X10

6 616 121 8469 HOLDER 1 648ED-11B-017 1CC2FC0507111

7 411 141 3902 WASHER V 3X7X0.5 2 FW3

8 411 141 2806 WASHER SPR 3 2 SW3

9 630 000 7527 BOLT,HEX-SCT 2 M3X10

10 630 000 8906 SET SCREW 1 M3X8 SET

11 411 140 9905 NUT HEX 3 1 M3

12 616 121 8476 FLANGE 2 648ED-11B-018 1CC2FE1000400

13 630 000 7763 BOLT,HEX-SCT 4 M5X16

14 616 121 8698 BALL BUSH 2 648ED-11H-511 1CC2GG5001250

15 630 000 7886 BOLT,HEX-SCT 8 M6X16

25 630 000 7626 BOLT,HEX-SCT 2 M4X10

26 616 125 6577 PIN 10 648ED-11B-030 1CC2SD0501150

NOTE

4-4

9703-001

MODEL TIM-1000L

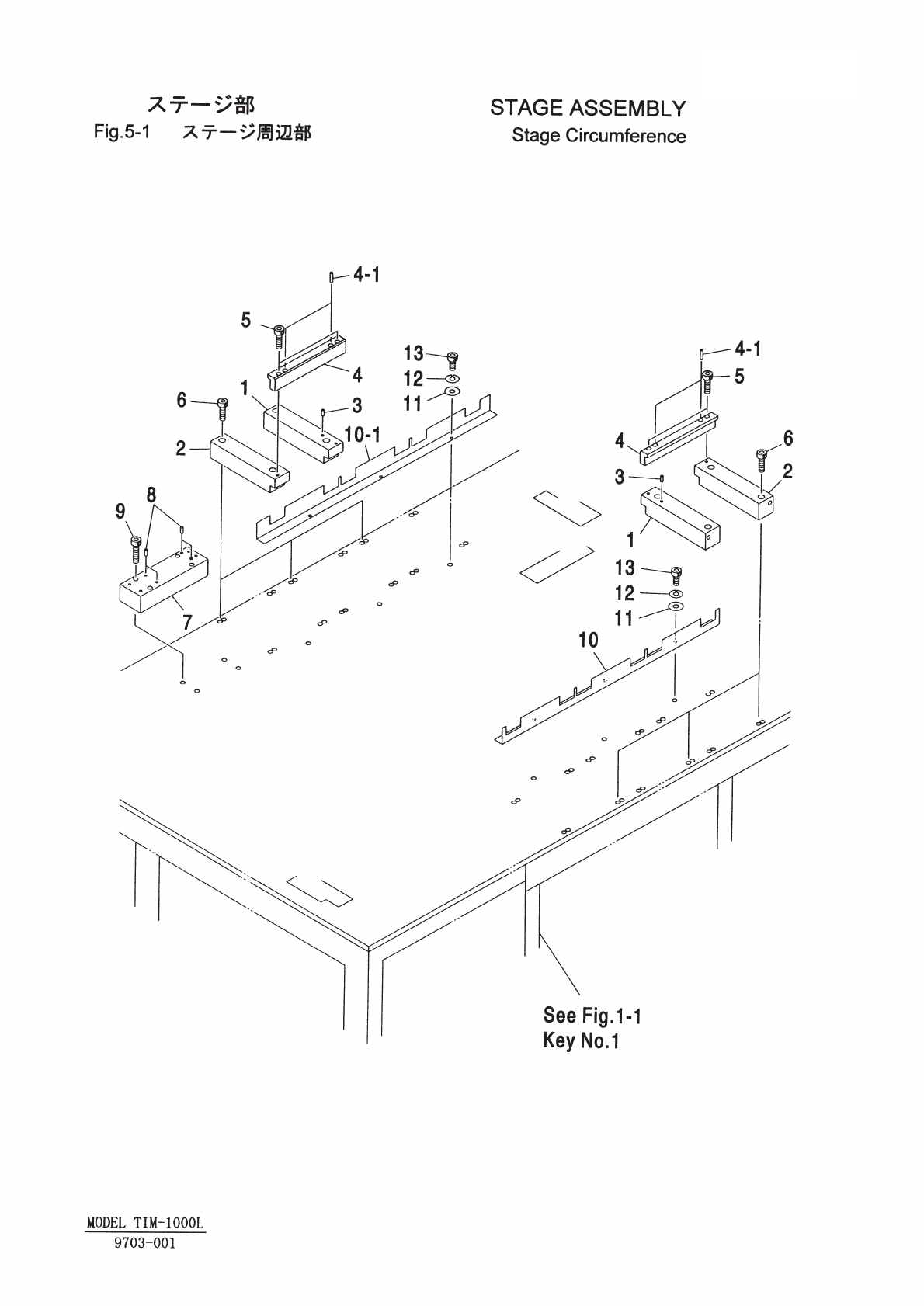

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.

1 616 122 1315 TABLE 6 648JD-11B-001 1CC2KA0500442

2 616 122 1322 TABLE 6 648JD-11B-002 1CC2KA0500452

3 630 054 8631 PIN,LOCATE 6 648JD-11H-501

4 616 122 1339 PLATE 6 648JD-11B-003 1CC2FB0507211

4 -1 616 122 1490 PIN 12 648JD-11H-502 1CC2SD0502600

5 630 000 7930 BOLT,HEX-SCT 12 M6X40

6 630 000 8050 BOLT,HEX-SCT 24 M8X40

7 630 054 5456 BASE(STAGE) 1 648JD-11B-004

8 630 054 8631 PIN,LOCATE 4 648JD-11H-501

9 630 000 8074 BOLT,HEX-SCT 4 M8X50

10 616 125 7284 COVER 1 648JD-11B-005 1CC2CA0505061

10 -1 616 125 7291 COVER 1 648JD-11B-006 1CC2CA0505072

11 411 141 4305 WASHER V 6X12.5X1.6 6 FW6

12 411 141 3001 WASHER SPR 6 6 SW6

13 630 000 7862 BOLT,HEX-SCT 6 M6X10

NOTE

5-1

9703-001

MODEL TIM-1000L
