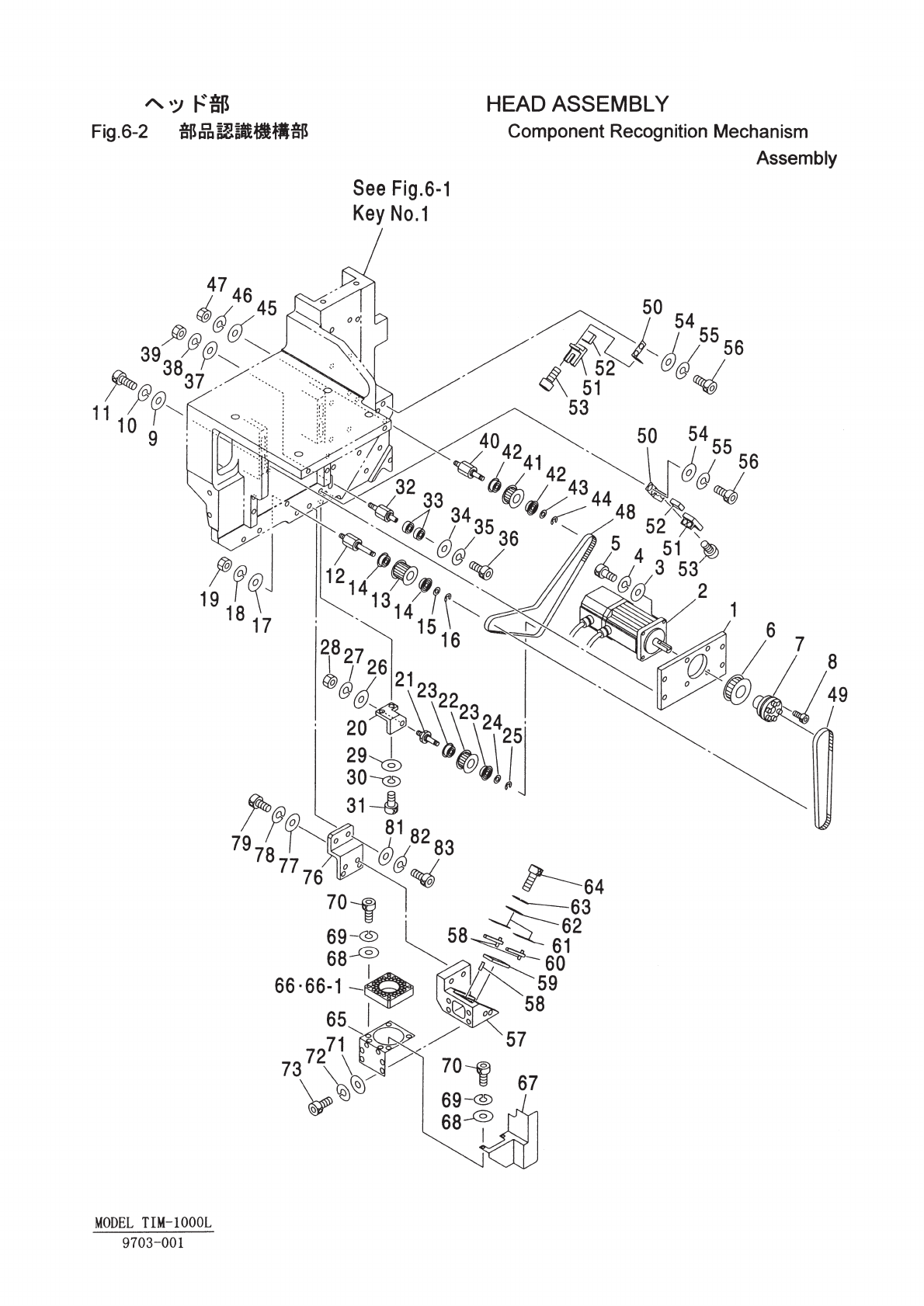

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8625 HOLDER 1 648CB-11B-033 1CC2FC0506903
2 616 122 1940 AC SERVO MOTOR 1 648CB-11H-511 1CC4M16000190
3 411 141 4008 WASHER V 4X9X0.8 4 FW4
4 411 141 2905 WASHER SPR 4 4 SW4
5 630 000 7657 BOLT,HEX-SCT 4 M4X16
6 616 125 8755 PULLEY 1 648CB-11H-513 1CC2GD2003950
7 616 112 0069 JOINT 1 648CB-11H-514 1CC2GJ0500440
8 630 000 7626 BOLT,HEX-SCT 6 M4X10
9 411 141 4008 WASHER V 4X9X0.8 4 FW4
10 411 141 2905 WASHER SPR 4 4 SW4
11 630 000 7664 BOLT,HEX-SCT 4 M4X20
12 616 125 8588 SHAFT 1 648CB-11B-017 1CC2GK0503331
13 616 125 8748 PULLEY 1 648CB-11H-507 1CC2GD2003940
14 616 122 1902 BALL BEARING 2 648CB-11H-505 1CC2GF4000010
15 616 125 8595 WASHER 1 648CB-11B-021 1CC2SB0501641
16 616 122 1933 E RING 1 648CB-11H-508 1CC2SC0500640
17 411 141 4107 WASHER V 5X10X1 1 FW5
18 411 141 6705 WASHER SPR 5 1 SW5
19 411 141 0505 NUT HEX 5 1 M5
20 616 125 8557 BLOCK 1 648CB-11B-011 1CC2FB1002751
21 616 125 8564 SHAFT 1 648CB-11B-013 1CC2GK0503311
22 616 125 8731 PULLEY 1 648CB-11H-506 1CC2GD2003930
23 616 122 1902 BALL BEARING 2 648CB-11H-505 1CC2GF4000010
24 616 125 8595 WASHER 1 648CB-11B-021 1CC2SB0501641
25 616 122 1933 E RING 1 648CB-11H-508 1CC2SC0500640
26 411 141 4107 WASHER V 5X10X1 1 FW5
27 411 141 6705 WASHER SPR 5 1 SW5
28 411 141 0505 NUT HEX 5 1 M5
29 411 141 4008 WASHER V 4X9X0.8 2 FW4
30 411 141 2905 WASHER SPR 4 2 SW4
31 630 000 7633 BOLT,HEX-SCT 2 M4X12
32 616 902 4703 SHAFT 1 648CB-11B-043 1CC2GK0503343
33 616 122 2046 BALL BEARING 2 648CB-11H-523 1CC2GF4000090
34 411 141 3902 WASHER V 3X7X0.5 1 FW3
35 411 141 2806 WASHER SPR 3 1 SW3
36 630 000 7503 BOLT,HEX-SCT 1 M3X6
37 411 141 4107 WASHER V 5X10X1 1 FW5
38 411 141 6705 WASHER SPR 5 1 SW5
39 411 141 0505 NUT HEX 5 1 M5
40 616 125 8571 SHAFT 1 648CB-11B-015 1CC2GK0503321
41 616 125 8731 PULLEY 1 648CB-11H-506 1CC2GD2003930
42 616 122 1902 BALL BEARING 2 648CB-11H-505 1CC2GF4000010
43 616 125 8595 WASHER 1 648CB-11B-021 1CC2SB0501641
44 616 122 1933 E RING 1 648CB-11H-508 1CC2SC0500640
45 411 141 4107 WASHER V 5X10X1 1 FW5
46 411 141 6705 WASHER SPR 5 1 SW5
47 411 141 0505 NUT HEX 5 1 M5
48 616 125 8779 BELT 1 648CB-11H-516 1CC2GD1504760
49 616 125 8762 BELT 1 648CB-11H-515 1CC2GD1504750
50 616 122 1728 BRACKET 2 648CB-11B-027 1CC2FC1005270
NOTE
6-2
9703-001
MODEL TIM-1000L
