Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8656 BASE 1 648CB-11B-039 1CC2FA1001853
2 616 125 8694 HOLDER 2 648CB-11B-065 1CC2FC0507601
3 616 122 1858 INSULATOR 2 648CB-11B-067 1CC2CH1000030
4 616 125 8687 BLOCK 2 648CB-11B-055 1CC2FB1003002
5 616 122 2060 BUSH 4 648CB-11H-526 1CC4S60500200
6 411 141 4008 WASHER V 4X9X0.8 4 FW4
7 411 141 2905 WASHER SPR 4 4 SW4
8 630 000 7671 BOLT,HEX-SCT 4 M4X25
9 630 059 1354 UNIT,CAMERA 1 648CD-11H-501
9 -1 630 059 1354 UNIT,CAMERA 1 648CB-11H-520
10 630 063 2774 SCOPE UNIT 1 648CD-11H-503
11 630 064 0014 SCOPE UNIT 1 648CB-11H-522
12 411 141 6903 WASHER V 2X5X0.3 4 FW2
13 411 141 2608 WASHER SPR 2 4 SW2
14 630 000 7466 BOLT,HEX-SCT 4 M2X6
15 411 141 3902 WASHER V 3X7X0.5 4 FW3
16 411 141 2806 WASHER SPR 3 4 SW3
17 630 000 7510 BOLT,HEX-SCT 4 M3X8
18 616 125 8717 HOLDER 2 648CB-11B-071 1CC2FC0508760
19 630 000 7619 BOLT,HEX-SCT 4 M4X8
20 411 141 3902 WASHER V 3X7X0.5 4 FW3
21 411 141 2806 WASHER SPR 3 4 SW3
22 630 000 7572 BOLT,HEX-SCT 4 M3X25
23 616 125 8700 SPACER 2 648CB-11B-069 1CC2FF0502372
24 630 000 7527 BOLT,HEX-SCT 4 M3X10
25 411 141 4008 WASHER V 4X9X0.8 4 FW4
26 411 141 2905 WASHER SPR 4 4 SW4
27 630 000 7626 BOLT,HEX-SCT 4 M4X10
28 616 902 1771 HOLDER 1 648CE-11B-008 1CC2FC0507381
29 630 000 7657 BOLT,HEX-SCT 2 M4X16
30 616 125 6669 HOLDER 1 648CE-11B-020 1CC2FC0507390
31 616 122 2909 MIRROR 1 648CE-11H-501 1CC2FK3000080
32 616 122 2916 PRINTED BOARD 1 648CE-11H-502 1CC4B17000013
33 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
34 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
35 411 041 8908 SCR PAN 3X6 2 M3X6 PAN
36 411 141 3902 WASHER V 3X7X0.5 4 FW3
37 411 141 2806 WASHER SPR 3 4 SW3
38 630 000 7527 BOLT,HEX-SCT 4 M3X10
39 616 125 6676 COVER 1 648CE-11B-024 1CC2CA0504970
40 411 050 5004 SCR TRS 3X6 2 M3X6 TRS
41 630 000 7619 BOLT,HEX-SCT 4 M4X8
NOTE
6-4
9703-001
MODEL TIM-1000L

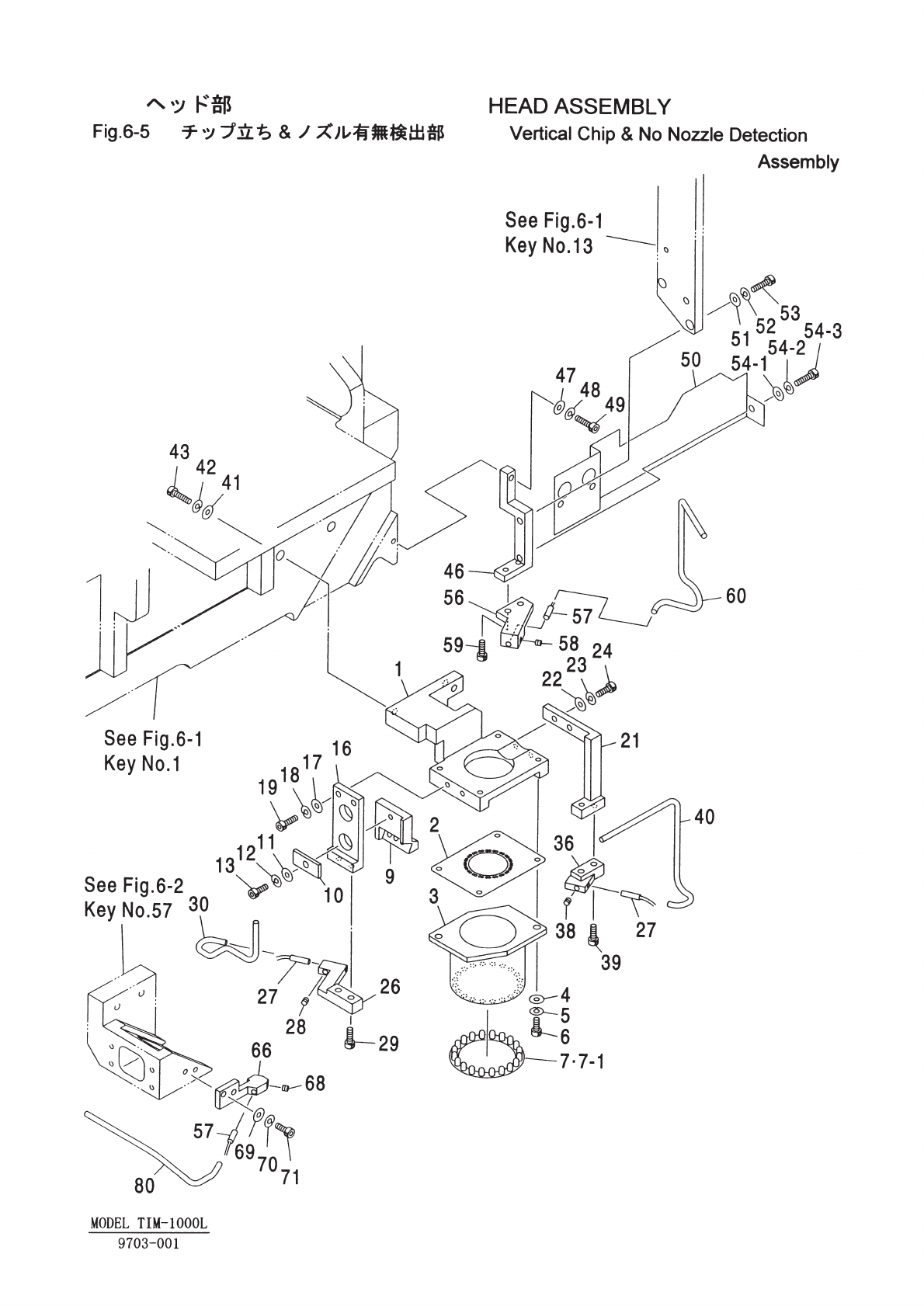

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 7352 BLOCK 1 648CC-11B-001 1CC2FB1002764
2 616 122 2213 PRINTED BOARD 1 648CC-11B-041 1CC4B17000190
3 616 122 2190 HOOD 1 648CC-11B-037 1CC2CB2500030
4 411 141 3902 WASHER V 3X7X0.5 4 FW3
5 411 141 2806 WASHER SPR 3 4 SW3
6 630 000 7510 BOLT,HEX-SCT 4 M3X8
7 616 122 2206 PRINTED BOARD 1 648CC-11B-039 1CC4B17000180
7 -1 616 121 5062 L.E.D INDICATOR LIGHT 20 648GL-11D-501 1CC4T42700181
9 616 125 7413 BRACKET 1 648CC-11B-048 1CC2FC1006571
10 616 125 7420 PLATE 1 648CC-11B-049 1CC2FB0508170
11 411 141 3902 WASHER V 3X7X0.5 1 FW3
12 411 141 2806 WASHER SPR 3 1 SW3
13 630 000 7510 BOLT,HEX-SCT 1 M3X8
16 616 124 1160 HOLDER 1 648CC-11B-021 1CC2FC0506962
17 411 141 3902 WASHER V 3X7X0.5 2 FW3
18 411 141 2806 WASHER SPR 3 2 SW3
19 630 000 7527 BOLT,HEX-SCT 2 M3X10
21 616 125 7390 HOLDER 1 648CC-11B-023 1CC2FC0506972
22 411 141 3902 WASHER V 3X7X0.5 2 FW3
23 411 141 2806 WASHER SPR 3 2 SW3
24 630 000 7527 BOLT,HEX-SCT 2 M3X10
26 616 122 2138 BRACKET 1 648CC-11B-025 1CC2FC1005301
27 616 122 2268 FIBER 1 648CC-11H-503 1CC4V23500430
28 630 000 8906 SET SCREW 1 M3X8 SET
29 630 000 7527 BOLT,HEX-SCT 2 M3X10
30 616 122 2176 TUBE 1 648CC-11B-033 1CC2BF2001270
36 616 122 2145 BRACKET 1 648CC-11B-027 1CC2FC1005311
38 630 000 8906 SET SCREW 1 M3X8 SET
39 630 000 7527 BOLT,HEX-SCT 2 M3X10
40 616 122 2183 TUBE 1 648CC-11B-035 1CC2BF2001280
41 411 141 4008 WASHER V 4X9X0.8 2 FW4
42 411 141 2905 WASHER SPR 4 2 SW4
43 630 000 7633 BOLT,HEX-SCT 2 M4X12
46 616 125 7369 HOLDER 1 648CC-11B-015 1CC2FC0506953
47 411 141 3902 WASHER V 3X7X0.5 2 FW3
48 411 141 2806 WASHER SPR 3 2 SW3
49 630 000 7534 BOLT,HEX-SCT 2 M3X12
50 616 125 7246 COVER 1 648HH-11B-025 1CC2CA0505691
51 411 141 3902 WASHER V 3X7X0.5 1 FW3
52 411 141 2806 WASHER SPR 3 1 SW3
53 630 000 7534 BOLT,HEX-SCT 1 M3X12
54 -1 411 141 3902 WASHER V 3X7X0.5 1 FW3
54 -2 411 141 2806 WASHER SPR 3 1 SW3
54 -3 630 000 7527 BOLT,HEX-SCT 1 M3X10
56 616 125 7376 BRACKET 1 648CC-11B-017 1CC2FC1005282
57 616 122 2251 FIBER 1 648CC-11H-501 1CC4V23500440
58 630 000 8906 SET SCREW 1 M3X8 SET
59 630 000 7527 BOLT,HEX-SCT 1 M3X10
60 616 122 2152 TUBE 1 648CC-11B-029 1CC2BF2001250
66 616 125 7383 BRACKET 1 648CC-11B-019 1CC2FC1005293
NOTE
6-5
9703-001
MODEL TIM-1000L
