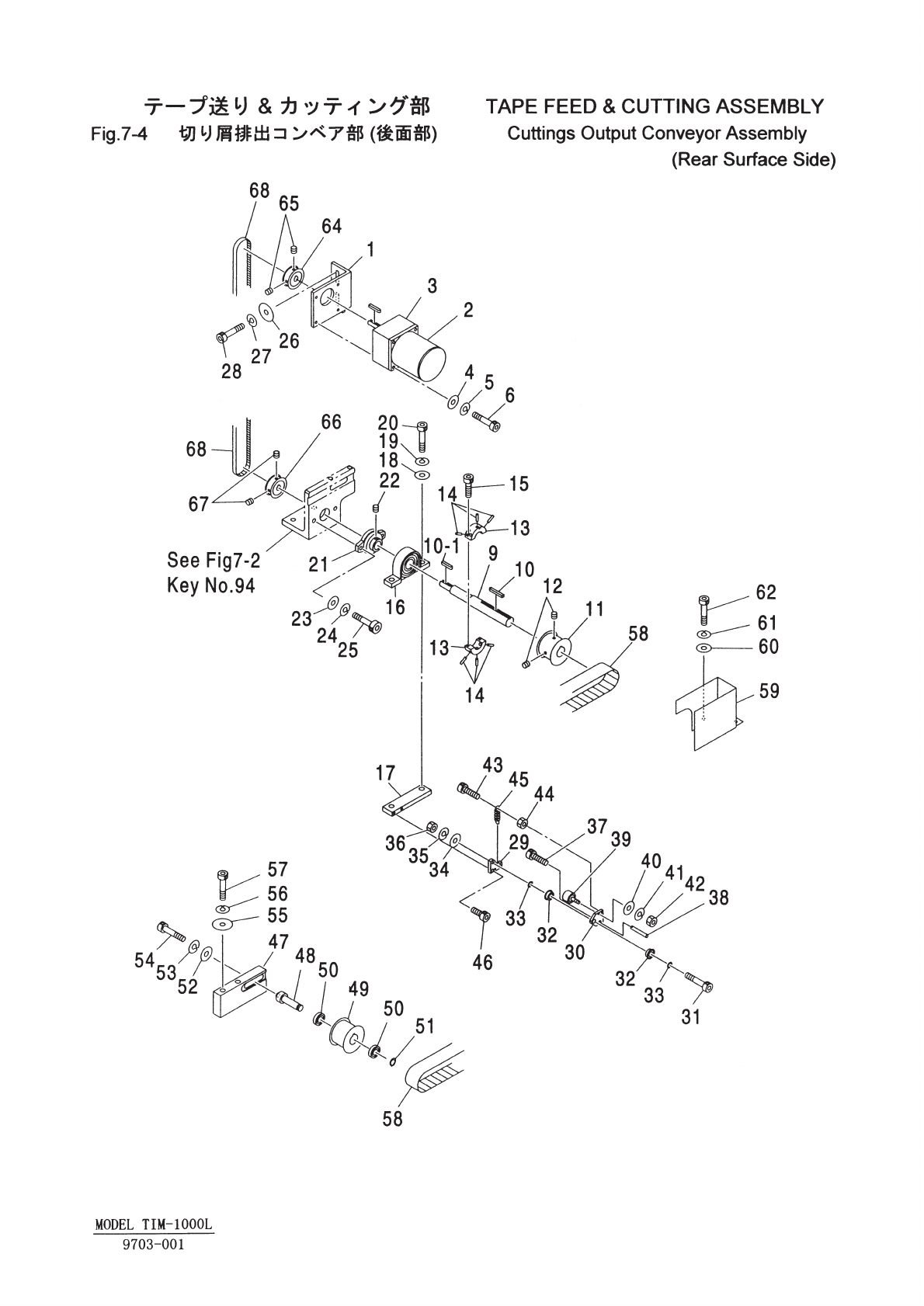

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
51 616 121 9626 RING C 12 1 648FH-11H-510 1CC2SC1000040
52 411 141 4503 WASHER V 8X17X1.6 1 FW8
53 411 141 3100 WASHER SPR 8 1 SW8
54 630 000 7985 BOLT,HEX-SCT 1 M8X10
55 630 001 0237 WASHER 2 BW6
56 411 141 3001 WASHER SPR 6 2 SW6
57 630 000 7893 BOLT,HEX-SCT 2 M6X20
58 616 125 7079 BELT 1 648FH-11H-503 1CC2GD1504951
59 616 125 7017 COVER 1 648FH-11B-016 1CC2CA0504852
60 411 141 4107 WASHER V 5X10X1 2 FW5
61 411 141 6705 WASHER SPR 5 2 SW5
62 630 000 7749 BOLT,HEX-SCT 2 M5X10
NOTE
7-3
9703-001
MODEL TIM-1000L
