Installation Manual Station Software Version 505.04 72 of 156 − You must use a formatted floppy. (The program does not allow you to fo rmat the floppy as you create it.) − Each time the executable is called it will creat…
Installation Manual, Station Software Version 505.04 Edition 07/2006
71 of 156
4.4.3 Installing the operating system
4.4.3.1 Creating the installation floppies
The two floppies required for the operating system of the machine controller can be created on any
PC which is running Windows XP and which has a CD drive, for example, the station computer.

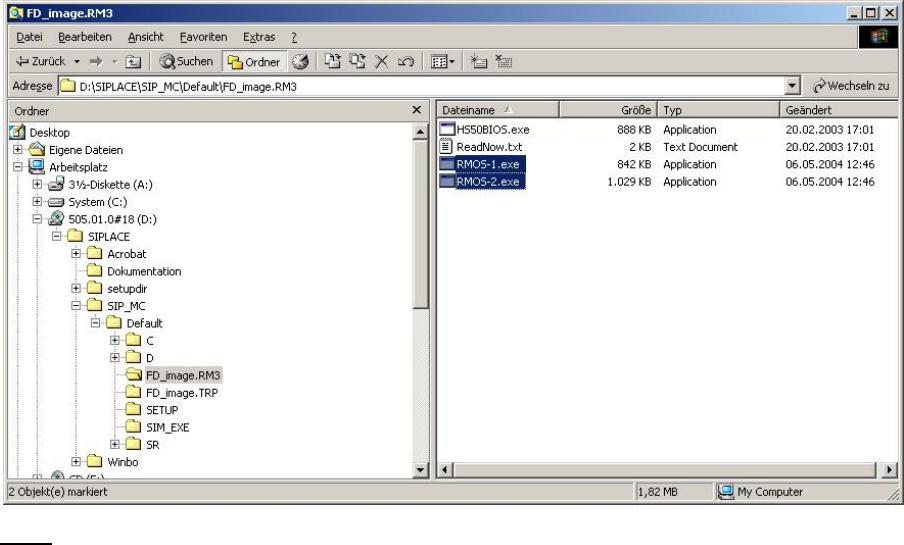

An image in the form of a self-extracting EXE file is stored in the folder
\SIPLACE\SIP_MC\HS50\FD_IMAGE.RM3 for both of the installation floppies. The numbers at the
end of the file name (Rmos-1.exe, Rmos-2.exe) correspond to the number of the floppy. The
floppies can be created in any order.
Insert a formatted floppy (3.5", 1.44MB) in drive A and access it briefly in the Explorer. Start the
relevant executable (it can also be started from the Explorer by double-clicking on the file). Then
simply follow the instructions in the program. Insert the disk / the program may ask whether disk
should be deleted / data is written to the disk (the bar shows the progress).
When the window disappears, the floppy is finished (before removing the floppy, you must wait until
the 'active' light on the disk drive has gone out).
Notes
− The system looks for a floppy in drive 'A': The floppy must therefore already be in the drive at the start
(this setting cannot be changed).
Installation Manual Station Software Version 505.04
72 of 156
− You must use a formatted floppy.
(The program does not allow you to format the floppy as you create it.)
− Each time the executable is called it will create one disk only
− Before and during creation of each disk, no other tool may be permitted to access this floppy (e.g. the
current Explorer window, the path of a DOS box must not be set to the A: drive).
− When the second floppy is created, the incorrect message "Insert floppy 1" appears. It should read
"Insert floppy 2".
4.4.3.2 Installation procedure
• Insert the "Rmos-1" floppy in the drive of the M54 and switch the station on.
• The following message will appear on screen:
Starting MS-DOS...
DO YOU WANT TO CONTINUE INSTALLATION ?
[Y] CONTINUE [N] REBOOT SYSTEM TO CHECK OR CHANGE
SETUP
[A] SET INTERNET ADDRESS
PRESS KEY TO CONTINUE [Y,N,A]?
'Y' continues the installation.
NOTES: with the error message „INVALID MEDIA TYPE“ you have to continue with (f)ail
(2 kick x; preferably at the formatting of new hard disk, the installation is then continued.
'A' sets the network addresses and port IDs.
This selection is only possible after initial installation.
Notes:
After the initial installation, the installed standard files must be adapted to the user network.
Update / upgrade retains the network addresses which have already been set.
∧ The Internet addresses of the M54 are saved in 'C:\ETC\HOSTS'.
∧ The port IDs of the M54 are saved in 'C:\ETC\SERVICES'.'
Installation Manual, Station Software Version 505.04 Edition 07/2006
73 of 156
• The installation program on screen.
Press any key to continue or cancel with <Esc>.
• The software version and the machine type are displayed.
Press any key to continue or cancel with <Esc>.
• The main menu appears:
>>>
>>>
------------------Install Revision of SIPLACE Operating System
------------------
Terminate SIPLACE Installation Program
Main Menue of SIPLACE Installation MCRM3 40x.xx
Use the [Up Arrow] [Down Arrow] [Pg Up] [Pg Dn] keys to move the highlight bar to select the
button you prefer.
Press [Enter] to activate your selection
Note:
If a submenu or a function in the installation program is selected, the cursor flashes gray.
• Select the function "Install Revision of SIPLACE Operating System" and confirm with <RETURN>.
• The installation is started. The following query appears:
>>>
>>>
-----No
-----Yes
1. WARNING
installation of SIPLACE operating system will only save files keeping machine data.
A
ll other files of user’s interrest have to be saved on floppy disc by user manually.
Otherwise these files will bedeleted.
Continue SIPLACE Installation Job?
Use the [Up Arrow] [Down Arrow] [Pg Up] [Pg Dn] keys to move the highlight bar to select the
button you prefer.
Press [Enter] to activate your selection
