Installation Manual, Station Software Version 505.04 Edition 07/2006
77 of 156

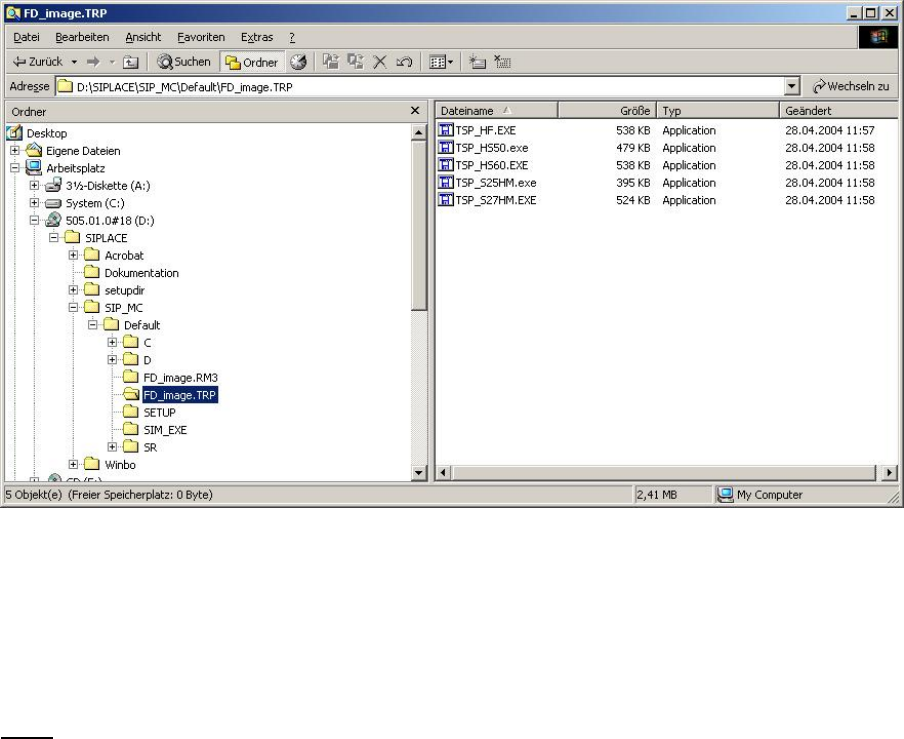

The executable will be started (it can also be started from the Explorer by double-clicking on the
file). Then simply follow the instructions in the program. Insert the disk / the program may ask
whether disk should be deleted / data is written to the disk (the bar shows the progress). When the
window disappears, the floppy is finished (before removing the floppy, you must wait until the 'active'
light on the disk drive has gone out).
Notes
− The system looks for a floppy in drive 'A:' (this setting cannot be changed)
− You must use a formatted floppy.
(The program does not allow you to format the floppy as you create it.)
− Each time the executable is called it will create one disk only
− Before and during creation of each disk, no other tool may be permitted to access this disk (e.g. the
current Explorer window, the path of a DOS box must not be set to the A: drive).
4.4.6.2 Installation procedure
Put the newly created disk containing the conveyor controller software into the drive of the M54, and
switch on the station. This starts MS-DOS. The controller software will be downloaded via the CAN bus to
the available conveyor units. If the download process is completed successfully, the version and the date
the software was created will be displayed at the end of the installation process.
Installation Manual Station Software Version 505.04
78 of 156
1 Kurzbeschreibung
Die Installationsanleitung dient als Arbeitsanweisung für die Installation der SIPLACE
Stationssoftware SR505.04.
Sie enthält Informationen über den Lieferumfang und die Voraussetzungen zur erfolgreichen
Installation.
Installation Manual, Station Software Version 505.04 Edition 07/2006
79 of 156
2 Lieferumfang
2.1 Software-Komponenten
Software 505.04
Basisversion: 00375295-08 Software SIPLACE Station 505/7-505.04 Basic
- Software-CD-ROM(1)
- Lizenz / Produktschein
- Software-Installationsanleitung SR V505.04 D+E (00193796-08)
- Software-Versionsbeschreibung SR V505.04 D+E (00193794-08)
- CD-ROM Softwareanleitungen V505.xx, D+E (00193798-02)
- Verpackung
Vollversion: 00375300-01 Lizenz SIPLACE Station 505.xx – Full
- Lizenz / Produktschein / Freischalt-Schlüssel
- Verpackung
Fremdsprachen: 00375290-07 Software SIPLACE Fremdsprachen SR 505.04
- Software-CD-ROM (Spracherweiterung)
- Lizenz / Produktschein
- Software-Versionsbeschreibung Fremdsprachen V505.04 D+E (00193795-07)
- CD-ROM Softwareanleitungen V505.xx, ALL (00193798-02)
- Verpackung
(1) Auf der CD befinden sich die Standardapplikationen:
- Installationsdisketten für das Betriebsystem des Maschinen-Controller
- Embedded Software für Transport
- Embedded Software für Achsen
- Embedded Software für Tisch
- Embedded Software für Gurtschneider
- Embedded Software für Kopf
- Embedded Software für MTC
- Embedded Software für Kameras
- Embedded Software für SLIO's
- Diverse Treiber, die für den Betrieb auf SIPLACE notwendig sind.
