7-8 Next Generation, Multi-Functional Plac er DECAN S1 Administrator’s Guide 7.1. New Part Registration Registers new component. When this button is clicked on, the following dialog bo x is displayed. Figure7.3 ”Ed it Pr…
7-7
Part Registration
<Edit…> button
Edits the selected component data.
<Duplicate…> button
Copies the selected component data. At this time, new component name must be set.
<Copy> button
Copies the part data selected from the Part list box.
<Paste> button
Pastes the copied part data to the Part list box.
<Delete> button
Deletes the part selected in the Part list box.
<Cancel> button
Cancels all edited data.
Caution If you move to another screen while editing the “Part” dialog
box, the edited data is saved automatically
7-8
Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide
7.1. New Part Registration
Registers new component. When this button is clicked on, the following dialog box is
displayed.

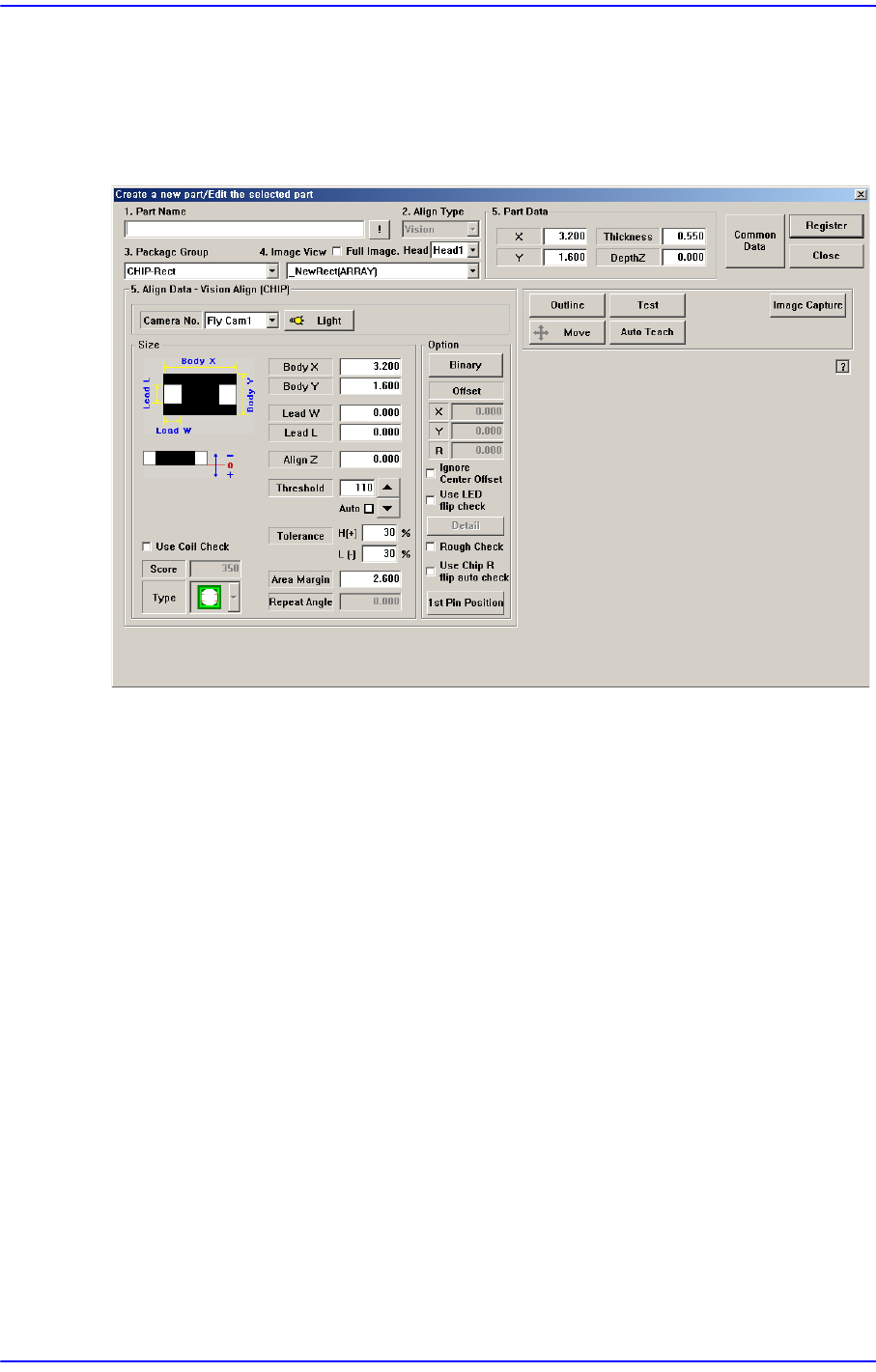

Figure7.3 ”Edit Profile / Part” dialog box
<1. Part Name> edit box
Set the component name. Ensure that the component name having more than 32
Alphabet characters (16 characters in Korean) is not entered.
(When using the “Duplicate” function or when importing component information
from another PCB file.)
<2. Align Type> combo box
Select the align type. Automatically setup to “Vision”.
<3. Package Group> combo box
Select the component group.
<Package List> combo box
Displays the component data list selected in <2. Align Type> and <3. Package
Group>. From the list, select the part most similar to the part to be registered.
<4. Image View> group
Allows the image displayed in the SMVision window to be selected.
<Full Image> check box
Selecting this check box will show the entire image of the selected gantry in the
SMVision window.
7-9
Part Registration
<Head> selection control
Of the entire image, it shows an image in the area corresponding to the selected
head in the SMVision window.
<5. Part Data> group
Set the data including the component size.
<X> edit box
Set the component size in X direction.
<Y> edit box
Set the component size in Y direction.
<Thickness> edit box
Set the height (thickness) of the component.
<Depth Z> edit box
Set the depth of the groove on top of the component. Unless warranted by a
special purpose, set to “0”. For a part that cannot be picked up at its top surface,
this parameter must be set.

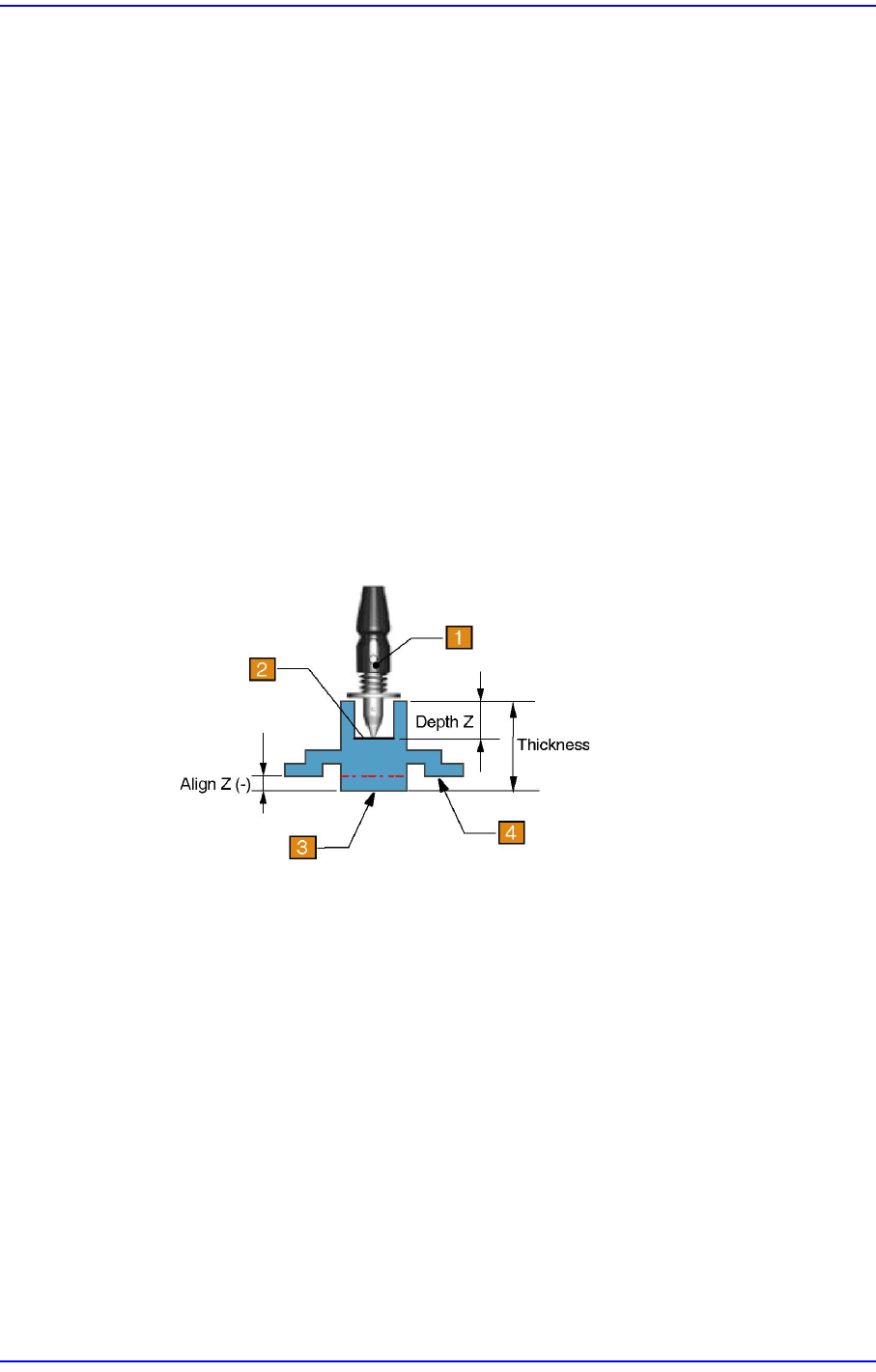

1: Nozzle
2: Pickup surface of part
3: Bottom surface of part
4: Placement surface of part
